Features:

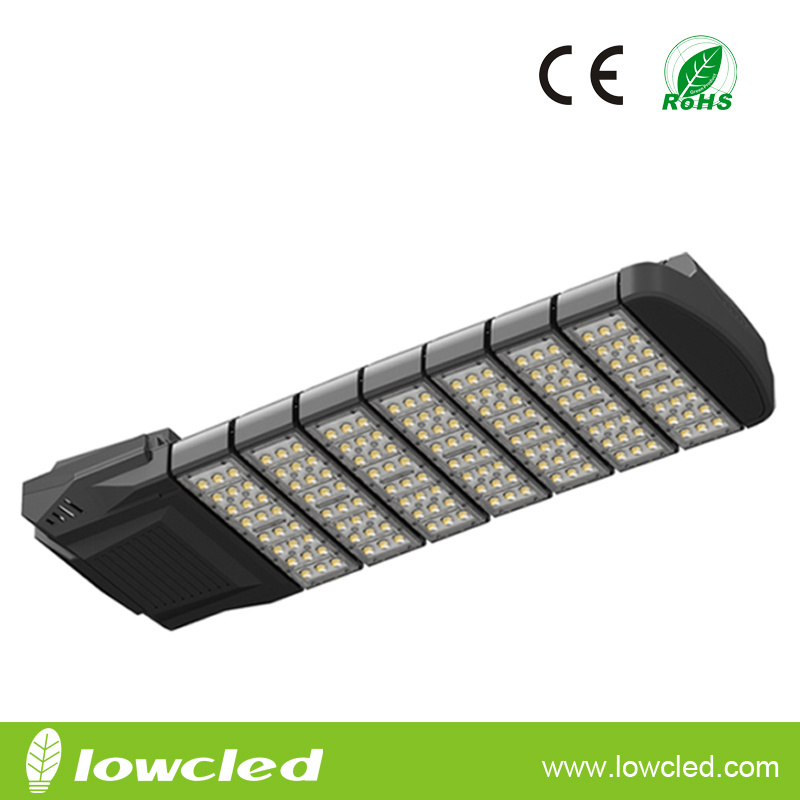

Model: LL-SL-200W-4M1
Chipset: CREE/OSRAM
Driver: MEAN WELL
Equivalent: 450W High Pressure Sodium Lamp
LED Light Source: 168 × 1W CREE LED / Philips Lumileds
LED Luminous Efficiency: 107-122 lm/w
Power: 200W
Power Efficiency: 94%
Lamp Rated Luminous Flux: 17640-20000 LM
Lamp Rated Luminous Efficiency: >95lm/W
Average lllumination & Effective Area: 10M Height(33m× 13m ≥ 24LUX); 12M Height(40m× 16m ≥ 17LUX); 15M Height(50m× 20m ≥ 15LUX)
Color Rendering Index(CRI): Ra>75
Color Temperature: Cool white: 5700K, Pure white: 4500K, Warm white: 3000K
Beam Angle: 140° X 75°
Light Distribution Curve(Beam Pattern): Asymmetric (Bat Wing) / Rectangular Beam
Input voltages: AC 85-265V/277V; DC 10-28V
Frequency Range: 47-63Hz
Power Factor(PF): 0.99
Total Harmonic Distortion(THD): < 15%
Storage Temperature: -40centi-degree--+80centi-degree
Working Environment: -40centi-degree--+50centi-degree; 10%-95%RH
Junction Temperature(Tj): 60centi-degree ± 10%(ta=25centi-degree)
Light Body and Lampshade Material: Aluminum Alloy and ASA / PC
Working Lifetime: > 50, 000hrs
IP Rating: IP66
Net Weight: 13.4kg
Gross Weight: 14.8kg
Product Size (mm): 944× 315× 204
Package Size(mm): 1020× 370× 280(1PC)
Advantages:
1. Energy efficiency and Up to 70 % energy saving.
2. Long lifespan: Tough & durable life > 50, 000.00 Hours.
3. Original American CREE LED or Philips Lumileds LED used
4. High color rendering index.
5. Easy installation; 3X8 LED module design, convenient for maintenance
6. Environmentally friendly: Lead-free and no light pollution and air pollution.
7. High Power LED street light make a new and cost-less choice.
8. High quality power supply, reliable and stable
9. Unique optical design & rectangular beam, suitable for roadway illumination
10. Automatically reduce current against overheating temperature
Application:
LED Street Light is available for Main Road, Sidewalk, Square, School, Park, Garden, Factory, residential Places, Villa and many other projector lighting places.
Requirements |
Road width |
|
2 Lane |
4 Lane |
Above 6 Lane |
|
The installation height |
<8 m |
8-10 m |
>12m |
|
Lamp Pole Space |
15-25m |
30-40m |
>40m |
|
Lux request |
10-20 lux |
20-30 lux |
>30lux |
|
Power |
<80W |
80-160W |
>200W |
|
Installation way |
Unilateral Arrangement |
Unilateral or Bilateral Arrangement |
Bilateral Arrangement |
