Description and Applications

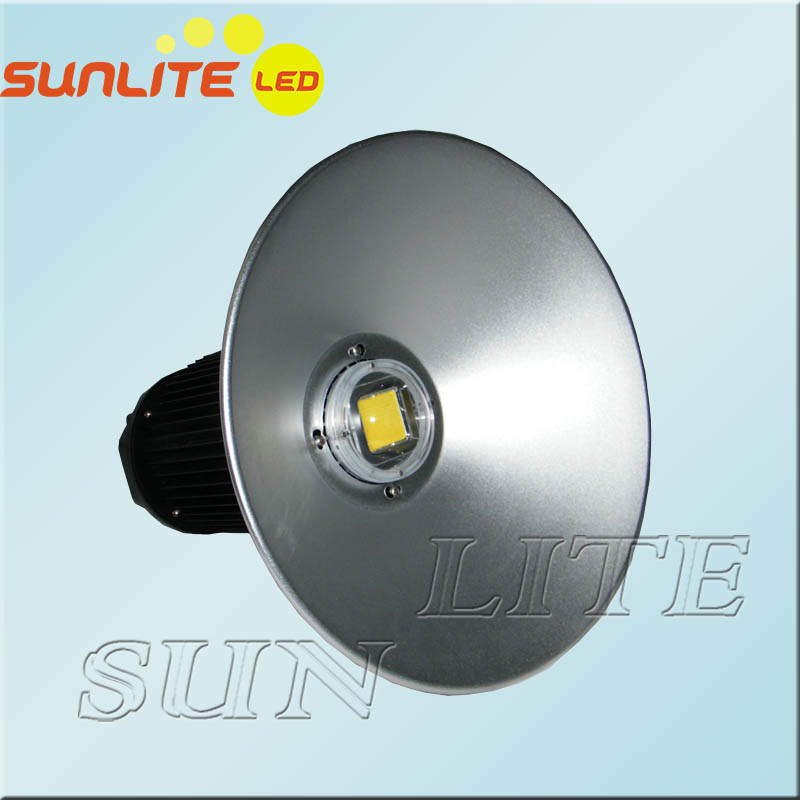

1) 200W Highbay Light. Bridgelux LED & Meanwell Driver.
2) 120Degree/45Degree Beam Angle
3) Input Voltage AC85-265V
4) Generally replace for 450~600W Metal Halide Fitting
5) Application: Workshop, Warehouse, Gym,Shopping Mall, etc
6) Warranty: 3 years
|
LIGHT STATS |
|
LED Spec |
Holder |
Input Voltage |
Colour |
CCT |
CRI |
LM Output |
Dim/Non-Dim |
|
200W Highbay CW |
N/A |
AC220-240 |
Cool White |
6000K |
CRI>80 |
19200lm |
N/A |
|
200W Highbay NW |
N/A |
AC220-240 |
Natural White |
4000K |
CRI>80 |
18860lm |
N/A |
|
Wavelength Range (nm or K) |
|
Red(nm) |
Green(nm) |
Blue(nm) |
Yellow(nm) |
Orange(nm) |
C.W(K) |
N.W(K) |
W.W(K) |
|
620~630 |
515~525 |
465~475 |
585~595 |
605~615 |
5500~6500 |
4000~5000 |
2700~3500 |
|
Enviroment Parameters |
|
Operating Temperature |
-20 Celsuis ~ +50 Celsuis |
|
Storage Temperature |
-40Celsuis ~ +65Celsuis |
|
IP Rating |
IP65 |
|
PACKING DETAILS |
|
Item N.W.(g) |
Item G.W.(g) |
Box Size (mm) |
PCS/Mid Box |
PCS/CTN |
CTN Size (cm) |
N.W.(kg) |
G.W.(kg) |
|
1120 |
1150 |
N/A |
N/A |
1 |
32*32*45 |
11.2 |
11.5 |
|
Item N.W.(g) |
Item G.W.(g) |
Box Size (mm) |
PCS/Mid Box |
PCS/CTN |
CTN Size (cm) |
N.W.(kg) |
G.W.(kg) |
|
600 |
720 |
N/A |
N/A |
25 |
59*59*39 |
15 |
18 |
|
PCS/20FQ |
PCS/40FQ |
PCS/40HQ |
|
|
|
550 CTNS/ 550 PCS Radiators |
22 CTNS/ 550 PCS Reflectors |
1125 CTNS/ 1125 PCS Radiators |
46 CTNS/ 1125 PCS Reflectors |
1325 CTNS/ 1325 PCS Radiators |
53 CTNS/ 1325 PCS Reflectors |
|
|
