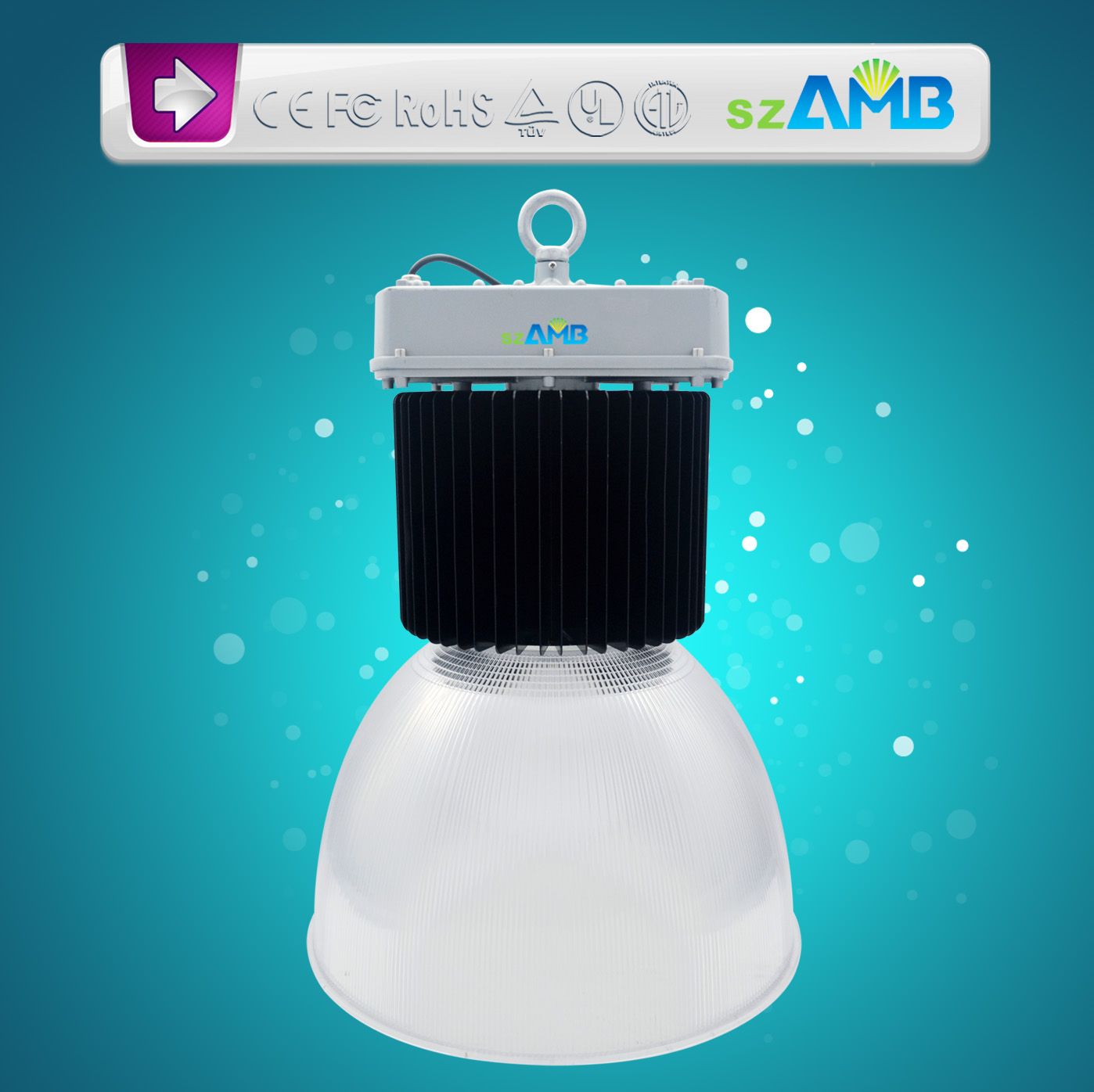

led high bay 200w
Item No.: AMB-3L-200W
Energy usage: 200 W
Spread: 60/130/150degrees
Chip supplier: Bridgelux(130-140lm/w)
Driver: Meanwell driver
Color temperature: 2800K-7000K
Imput votage: 90-305VAC
Luminous flux: >20, 000LM
CRI value: Ra>75
Weight: 9.5Kg(does not include reflector)
LED high bay light Features:
1. Aluminium/PC Reflector Beam Angle 60/130/150 degree available.
2. Material: Lamp sheel adopts excellent aluminum, anodizing and anticorrosion treatment, fancy performance, compact and beautiful structure.
3. LED Chip: Use high brightness single semiconductor chip Bridgelux 45mil as light source. (130-140lumens/w)
4. LED Driver: Built-in-cross-flow Meanwell power supply, to ensure the lamp's stability.
5. Huge Aluminum radiator: Cool down the temperature much more quickly.
6. Lifespan: If works 12 hours per day, it can be used 8-10 years, very low maintenance costs.
7. Green: Free-pollution, no lead, mercury and other pollution elements, no pollution to the enviroments, no RF interference.
9. Convenient to install, High universality, widely application ranges.
10. Warranty: 3 years for lamp fixture with Meanwell driver(5years for your option as well)

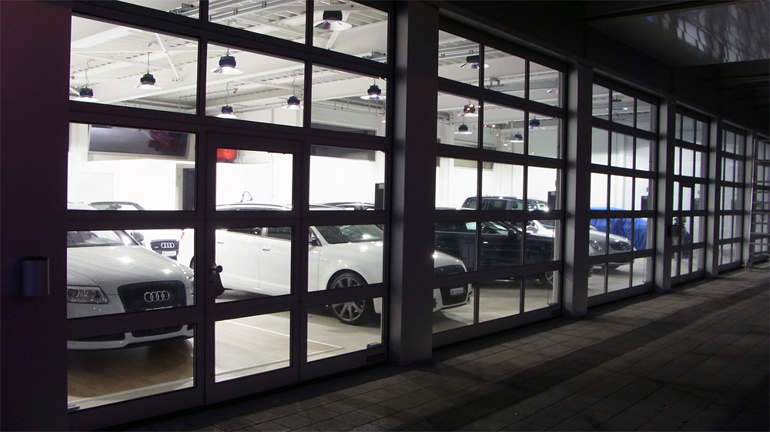

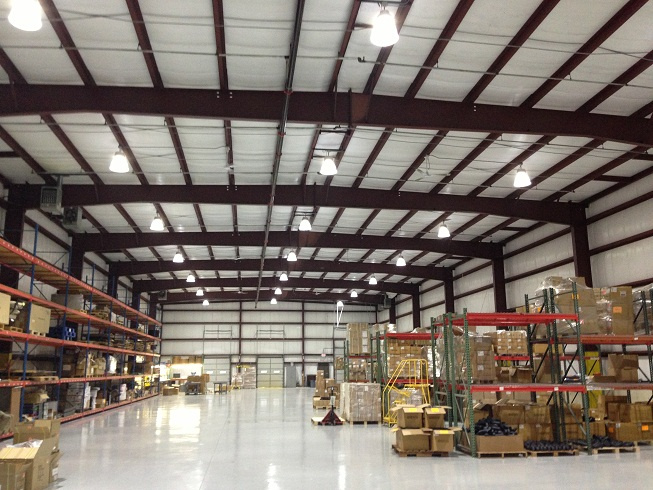

LED High Bay light Application:LED High Bay Light for industrial lighting widely used in factory, workshop, warehouse, supermarket, exhibition, stadium hall, parking, gas station, gymnasium etc where need indoor lighting.
|
Model Name |
AMB-3L-200W |
|
Product Name |
LED HIGH BAY |
|
Power |
200W |
|
LED Type |
Bridgelux 45mil COB |
|
LED quantity |
3pcs |
|
Weight |
15Kg |
|
Input Voltage |
90-305VAC |
|
Power Factor |
0.95 |
|
Rendering Index |
Ra≥ 75 |
|
IP Grade |
IP65 |
|
Color Temperature |
2800-7000K |
|
Luminous Flux |
20, 000lumens |
|
Beam Angle |
60° (130/150° option) |
|
Material |
Aluminum+Copper |
|
Warranty |
5years |
As an ISO9001-2008 certificated company, we AMB are an advanced LED technology company focused on LED High Bay, LED panel, LED flood light and LED Tube lighting solutions. Our products are the result of corporation between Chinese, Japanese, European and North American research and development partners which first began in 2001. AMB is established to offer high quality, unique design LED products to our customer at competitive prices. Our vision is to contribute to a sustainable world by offering advanced low energy products. We want to let the world know that at AMB "All's Marvellously Brilliant "
AMB maintains a strong engineering team who collaborates with partners around the world. Our management system is strictly conducted according to ISO9001-2008 guidelines.
Our products are certified to TUV/CE/RoHS/FCC/SAA/C Tick/ETL and UL certification.
Milestones
2005: After four years of initial research AMB is formed.
2006: AMB releases an advanced High Bay Range with features and performance amongst the best in the world. The lights feature high performance LED drivers from Taiwan, 130 lumen/watt Bidgelux LEDs, and a patented cooling system allowing SZAMB to offer an industry leading 5 year warranty.
2007: AMB begins co-operating with Japanese company Netled to develop a network lighting system optimising the power saving of LED technology.
2008: AMB launches a dimmable LED tube using National brand drivers from the USA. This innovation is warmly welcomed by customers in North America and Europe due to the additional power savings achieved.
2009: In conjunction with Swedish Company YB, AMB releases a new concept panel style LED fixture designed to replace traditional tube luminaires. The panel style fixtures feature an LOF design (LED on fixture) reducing the cost of manufacture.
2010: After 6 months of testing, Columbia and Yale University's report AMB's 200 watt LED fixture is determined to be an optimal solution for greenhouse fruit and vegetable growing. This product developed in corporation with Canada Wilcox Electric Company is also used for chicken and dairy production.
2011: AMB co-operates with Dutch LED driver company Lioris to produce LED tubes with 50, 000 hours warranty. The advanced technology offers a power factor over 0.99 and is at the forefront of world technology.
2012: AMB and Netled's WiFi control system testing is completed and the product is launched. AMB tubes and High Bay lights can now be controlled via PC, iPhone, iPad or smart phone
2013: AMB launches a new range of high bay lights using Chip on Board (COB) LED technology from Paragon in Taiwan. This allows existing metal halide globes to be directly replaced by LED globes and reduces the weight and cost of new LED High Bays.
Sincerely hope we cooperate, we are sure you will like our top quality LED high bay, LED flood light, LED panel, LED bulb. Welcome to OEM also.
