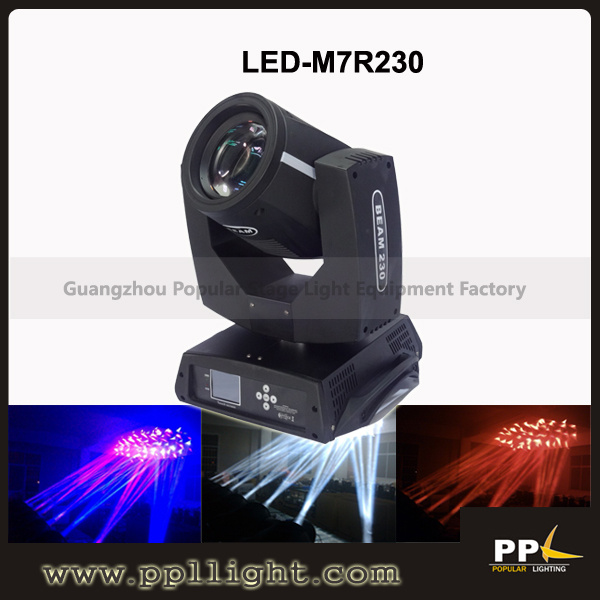

Feature:
1. Philips 5R 200W/7R 230W lamp
2. High preceision glass optical lens, 3-layer glass, 6 surface coasting. It make the output beam looks brighter
3.14 colors + 17 gobos
4. Rotation 8-facet prism
Technical Specifications:
Power supply: AC90-245V, 50/60Hz
Ballast: Electromagnetic Ballast or Electronic Ballast
Lamp: Philips 5R200W/7R230W or TODN 5R
Color Temperature: 8500K
Average Lamp Life: 2000H
Color: 14 colors +blank color wheel
Gobo: 17 fixed gobo + blank gobo
Prism: Rotation 8-face prism. Bilateral rotation
Lens: High precision glass optical lens
Wash effect: Adjustable Wash effects angle
Focus: Linear adjustment
Dimmer: 0-100%linear adjustment
Movement: Pan/Tilt: X axis 540° , Y axis: 250° Automatically accurate positioning
Beam angle: Parallel beam angel 0-3.8°
Strobe: Double lens strobe(0.5-9 time/second)
Control mode: Standard DMX512, Automatic and Master/slave mode
Channels: 16/20CHs
Packing dimensions: 53.5 x 40 x 41cm
Net / Gross weight: 16/17kgs
DMX Channel:
| 34 DMX Channel Chart | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 |
| Pan | Pan Fine | Tilt | Tilt Fine | Color | Color Wheel Fine | Cyan | Cyan Fine | Magenta | Magenta Fine | Yellow | Yellow Fine | Rotation Gobo | Rotation Gobo
Indexing | Rotation Gobo Fine | Fixed Gobo | Fixed Gobo Index |
|
| 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 |
| 3 Facet Prism | Rotation Prism | Rotating Prism
Indexing Fine | Focus | Focus Fine | Zoom | Zoom Fine | shutter | Dimmer | Dimmer Fine | Iris | Iris Fine | Frost | Speed of CMY | Speed of Pan/Tilt Movement | Color Macro-CMY Color Wheel | Lamp on/off Reset |
