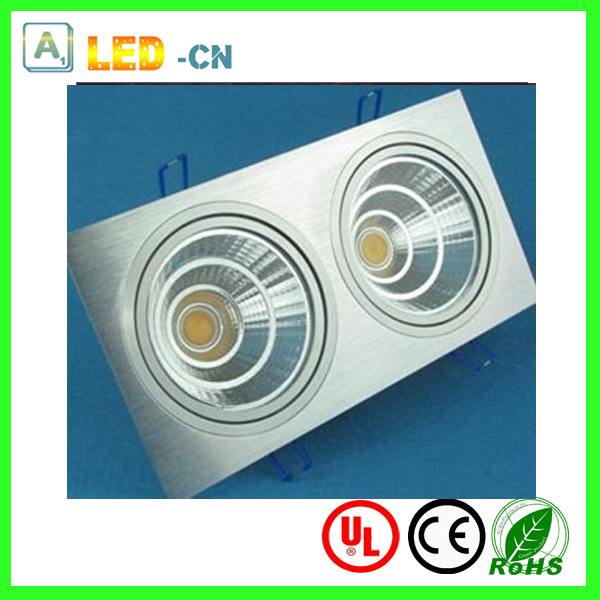

Square shape 2*10W COB LED recessed grille ceiling spot light
High brightness COB led recessed ceiling lamp
LED Power: COB 2PCS*10W
Led Luminous Efficiency: 110-120LM/W
Color temperature: 2700-6500K
Color Rendering Index:>83%
Input Voltage:AC100-265V
Power Efficiency:>87%
Power Factor:>98%
Appearance Size: L175*W92*H75/45mm
Open hole size: 155*75mm
COB LED recessed downlights power available:
3w/5w/6w/9w/10w
15w/20w/25w/28w/38w
2*10w/ 2*25w/2*35w
3*10w/ 3*25w/3*35w
4*10w/ 4*25w/4*35w
COB led downlights/ led celing lamp advantage:
High color rendering, uniform luminance, no light spot,no dark space. It was different from the lighting effects of general led downlight in the market, substitute to the traditional lamp completely, and no maladjustment.
LED downlights/ LED ceiling light / LED down lights application:
Products are widely used as indoor main illumination lighting in the office, commercial center, shopping mall, supermarket, factory, etc.
Item No:AN-GL-2*10W |
|
Item No:AN-GL-2*25W |
|
Item No:AN-GL-2*35W |
|
Item No:AN-GL-3*10W |
Power:2*10W |
|
Power:2*25W |
|
Power:2*35W |
|
Power:3*10W |
Rating Voltage:AC100-265V |
|
Rating Voltage:AC100-265V |
|
Rating Voltage:AC100-265V |
|
Rating Voltage:AC100-265V |
Size:L175*W92*H75/45mm |
|
|
|
Size:L230*W120*H118/93mm |
|
|
|
Size:L260*W135*H118/68mm |
|
|
|
Size:L175*W92*H75/45mm |
|
|
Cut-out Size:155*75mm |
|
Cut-out Size:198*94mm |
|
Cut-out Size:238*119mm |
|
Cut-out Size:155*75mm |
CCT:2700-7500K |
|
CCT:2700-7500K |
|
CCT:2700-7500K |
|
CCT:2700-7500K |
Lumen Flux:80-90LM/W |
|
Lumen Flux:80-90LM/W |
|
Lumen Flux:80-90LM/W |
|
Lumen Flux:80-90LM/W |
Material:Aluminum |
|
Material:Aluminum |
|
Material:Aluminum |
|
Material:Aluminum |
