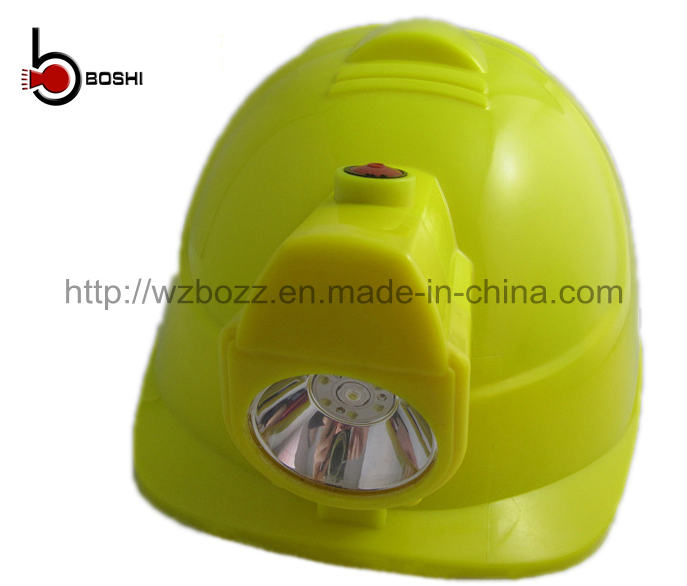

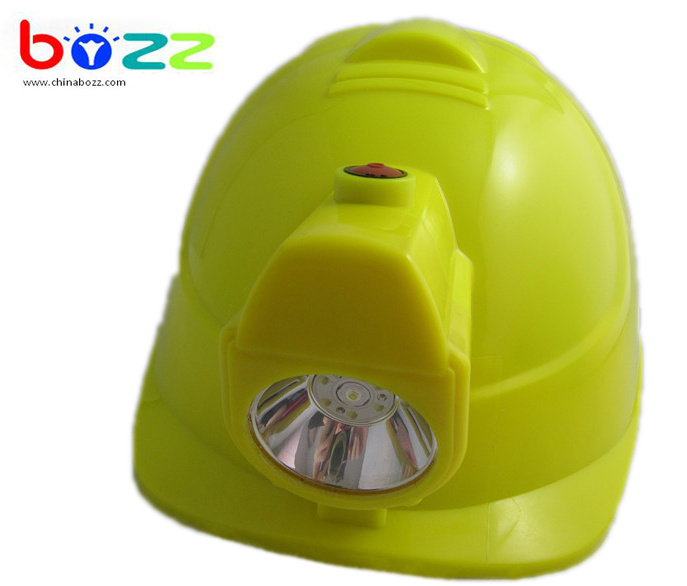

BK1000 Cap lamp is a new type of environmental-friendly lamp, which is adopted the most advanced 1W LED made by lithium batteries. This kind of cap lamp can be applied in flammable and explosive environment such as coal mines, chemical industry, oil and road transportation, also can be applied in other mobile lighting places. Cap lamp got flameproof certificate ratified by National Coal Mining Machinery Quality Supervision and Testing Center.
Cap lamps are designed based on GB7857-2003, MT927-2004, TUV Rheinland Product GmbH and complied with the standard EN397: 1995, CE Indentification NO. 0197, SGS-CSTC Co., Ltd and compplied with ANSI Z89.1-2003 specification for Industtrial Head Protection as Type II Class G&C, DIN CERTCO GmbH and comply with the standard EN166: 2002-04, CE Indentification NO. 0196, which have characteristics of small size, light weight, long service life, free of maintenance, environmental protection.
BK1000 1W USA LED Wireless Cap Lamp Description:1. Push the switch to the main light source position if necessary, the main Main light source is lighting.
2. Cap lamps could work continuously or intermittently, Push switch to adjust the light source when in the use of it.
3. The rated working current of cap lamps' main light source is 0.15A, which can be illuminated for more than 15 hours; The rated working current of secondary light source is 0.1A, which can be illuminated for more than 28 hours when only use of it. The secondary light source can be available when main light source is failed or overworked to ensure the lamps long-life work.
4. This product has discharging protection function; When the battery is discharged to cut-off voltage of 2.9V, protection device will start automatically and turn off the discharge loop, the miner's lamp is off and should recharge the battery before use.
5. Push the switch to secondary light source position if main light source is failed or secondary light source is needed
6. The range of CT is from 3000k to 8000k. It could be chosen according to your requirement within the allowable rang.
TECHNICAL PARAMETERS| No | Item | Unit | Data | Note |
| 1 | Rated Capacity | Ah | 2.8 |
|
| 2 | Rated voltage | V | 3.7 |
|
| 3 | Lighting time | Principal | hr | >15 |
|
| Auxiliary | hr | >28 |
|
| 4 | Illumination Start of lighting | Lx | >4000 | 1m away from the lamp |
| Lighting for 11hours | Lx | >3000 |
|
| 5 | LED luminous flux(Main illuminant) | Lm | 80 |
|
| Current Main illuminant | A | 0.15 |
|
| Sub illuminant | A | 0.1 |
|
| Voltage | V | 3.6 |
|
| 6 | Battery | Capacity | AH | 2.8 |
|

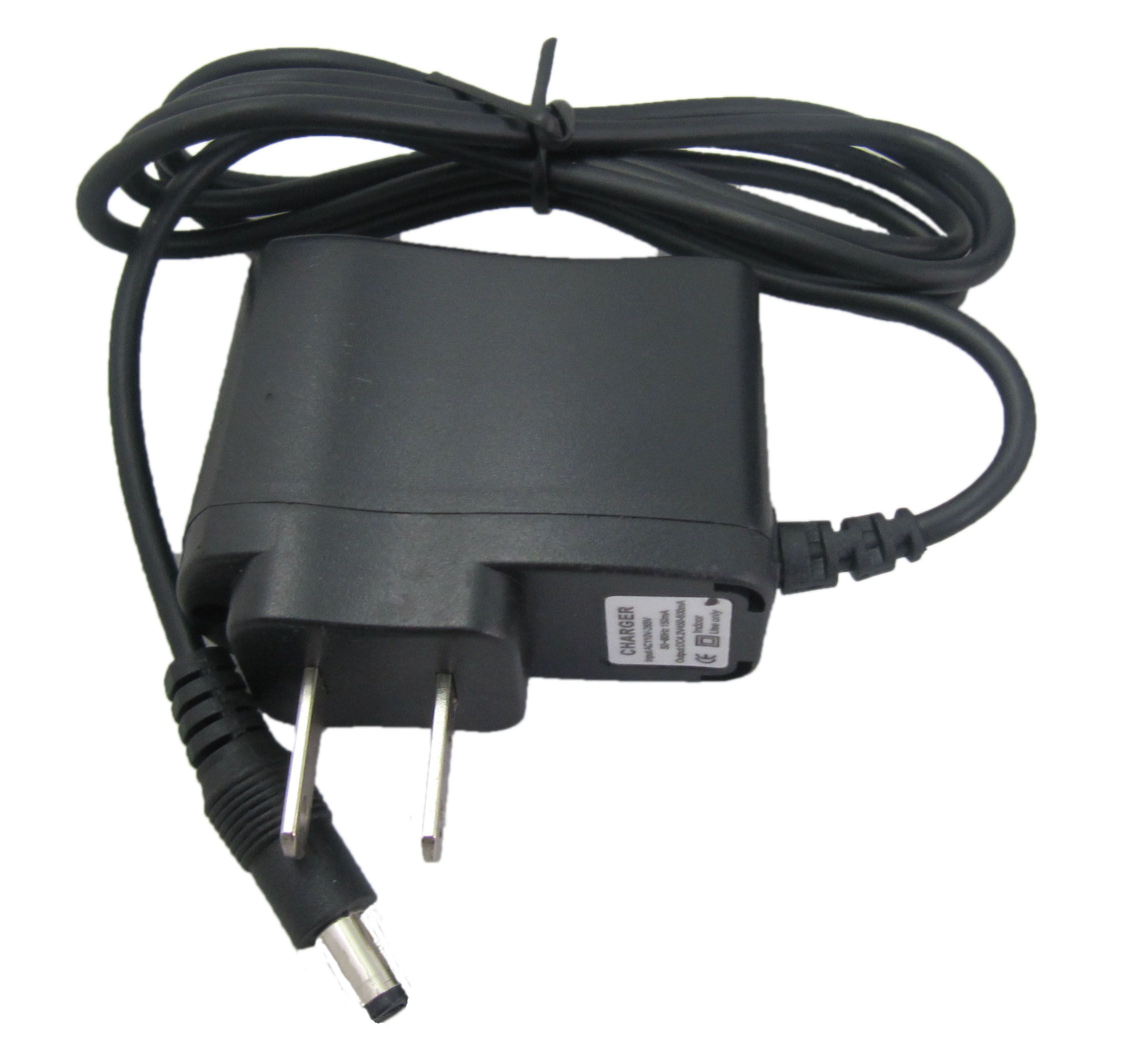

| Amperage of charge | mA | 600 | Intelligent charger |
| Life | time | 500 | Cycle time |
| storage life | year | 2 |
|
Wenzhou Boshi Electric Technology Co., Ltd is a professional manufacturer specializing in Mining lamp, Mining products, Move lighting fixture, Explosion-proof lamp, Safety equipment, and etc. We have more than 8 years' growing and supplied products all over the world. We are pleased to introduce ourselves as the leading exporter in the industry that has passed ISO9001, ISO14001, TUV (Technischer Uberwachungs Verein) quality management system, CE certificate and China explosion proof certificate EXSI.
Our company has set up a professional technical center engaged in numerous years of research, development of innovated products. We were also the first one in China to adopt USA CREE LED mining lamp. Many of our products keep at the leading position.
We have a professional production team and a great sales team. We treat every customer and every order seriously and kindly. In the process of production, we consistently combine high quality with economical efficiency to make sure every customer get products on time.
We are looking forward to cooperating with you. We sincerely hope that our work will make your business go further!
