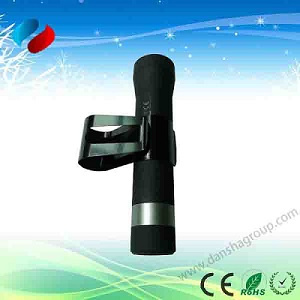

LED Torch with blue tooth speaker
ASLED-06
Product specification
V1.0
Main Functions
1.Blue-tooth music player
Paired with a phone,music player software can support many kinds of online play, can also see the lyrics and switch songs anytime.
2.Blue-tooth Hands-free
The range of bluetooth connection up to 10 meters with non-barrier,built-in high quality microphone, speakerphone distance up to 3 meters and without noise.
3.Mobile power function
2100 MA can be filled with 1.5 to 2.5 times phone normally.
4. LED lighting function
Used as bicycle headlights, LED night lighting up to 50 meters.
5. The battery life
With high-efficient lithium battery inside, 3 hours LED lighting, 25 hours of continuous music broadcasting, 44 hours speakerphone, the longest standby time can be long for 100 days.
Features
1. Use of environmentally friendly energy-efficient LED technology,high quality surface treatment.
2. Bulit-inside Hi-Fi high-quality efficiency speaker monomer,even when used outdoor activities,it also can be released pleasant music.
3. Built-inside high-capacity rechargeable battery, super long-time playing and mobile power functions.
Button 1:Multifunction button(Products Switch, bluetooth pairing ect.)
A.In shutdown mode
a. Press 3 seconds,it can be connected automatically the devices that have been paired;
b. Press 5 seconds,it enter into the blue-tooth pairing mode, and LED red and blue lights will flash alternately;
B. Blue-tooth connection status
a. Short press once for music play / pause.
b. Continuous short press twice as for the last phone records replaying.
c. When an incoming call, short press as for handsfree function.
Button 2:Short press is the previous song, long press is the voice reduction
Button 3:Short press is the next song, long press is the voice increasing
Button 4:Flashlight and charge / discharge button
A.LED Torch functions
a. Connect flashlight, short press the button,flashlight turn on, LED green light up.
b. Long press the button, flashlight flash.
B.Charge/discharge functions
a. Remove the flashlight, get access to the devices needed charging, short press output 5V for charging,and the green LED light up.
b. Insert the USB to 5V devices and it can be charged right now.
Product parameters
Electrical parameters:
USB models:Standard USB2.0
Input Voltage:DC5V
Charging current:0.9A
Charging ways: first constant voltage
then constant current
Output Voltage:DC 5V
Output Current:1A
Rechargeable batteries cutoff voltage:4.2V
Discharge cut-off voltage battries:3V
Bluetooth parameters:
Bluetooth version: V4.0 + EDR
Bluetooth solution: CSR
Bluetooth protocol: A2DP, AVRCP, HFP, HSP
Sensitivity: 106DB
Transmission distance:Accessible ≤ 15 m
Bluetooth equipped against
the password: 0000
Bluetooth equipped against the name: MultiSpeaker
Battery parameters :
Battery capacity:2100mAH
Charging time:2.5-3H
Continuous music playback time:25H
Continuous talk time:45H
LED lighting time:3H
Standby time:100 days
Protection circuit:
Over-discharge protection:
When the battery voltage is too low, the output is automatically turned off
Current protection:
When the load current exceeds 1A, 1A output current limiting automatically
Short circuit protection:
Supports output short circuit protection devices
Battery Protection:
Built-in battery protection circuit
Other Parameters:
LED Flashlight distance:50 metres
Voice prompts:Chinese/ English
Storage temp:-20ºC-50ºC
Size:150*35.6mm
Net weight:113g
Packing
Input voltage
DC5V
USB models:
Standard USB 2.0
Charging Current
0.9A
Charging ways
first constant voltage then constant current
Output Voltage
DC 5V
Rechargeable batteries cutoff voltage
4.2V
Output Current
1A
Discharge cut-off voltage battries
3V
Bluetooth version
V4.0 + EDR
Bluetooth protocol
A2DP, AVRCP, HFP, HSP
Transmission distance
Accessible≤ 15 m
