feature:

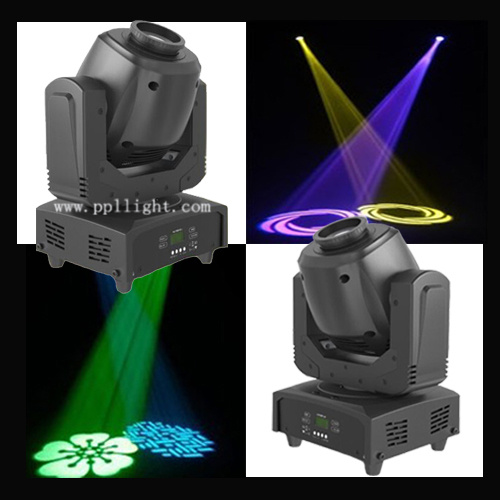

1.powerful, mini moving head with a bright 35W white LED
2.4500LUX at 2m
3.beautiful color and multiple colors
technical parameter:
Power supply: AC 100 - 240 V, 50/60 Hz
Light source: white cree leds with 35 W (approximately 50,000 hours)
Operation modes: DMX, Sound Active Mode and Internalionale show modes
Channel modes: 9 & 11 DMX channel modes
Color:7 colors + white
Gobo:7 rotating gobos + fixed effect headlights
separate color and gobo wheels
manual focus
4 shows integrated
Gobo Shake effect
Gobo scroll mode
Dimensions of the gobos: 74mm (15mm field of view)
Angle: 13 degrees
540 ° pan / 230 ° tilt (16-bit)
Schwenkungs- / tilt inversion mode
5 selectable dimmer curves (standard, Stage, TV, architecture and cinema)
Shutter: Random function for strobe / pulse effect, from slow to fast
Dimming: 0% - 100%
fan cooled
Display vice versa
including Omega-mounting bracket
Connections: DMX via 3-pin XLR cable
Dimensions (L x W x H): 159 x 147 x 265 mm
Weight: 3 kg
| channel 9 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|
|
| function | Pan | Tilt | Color | Gobo | Shutter | Dimmer | Pan/Tilt Speed rotate | Function | Dim Modes |
|
|
| channel 11 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| function | Pan | Pan Fine | Tilt | Tilt Fine | Color | Gobo | Shutter | Dimmer | Pan/Tilt Speed | Function | Dim Modes |
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
