Technical parameters
Voltage: AC220V 50HZ
Source: 1*10W LED
Power: 30W
Color: White
Operation mode: Auto, DMX512, Master
Channel: 9CH
Net Weight: 3KG
Gross Weight: 3.5KG
| Voltage:AC220V 50HZ | Source:1*10W LED |
| Power:30W | Color:White |
| Operation mode:Auto,DMX512,Master | Channel:9CH |
| Net Weight:3KG | Gross Weight:3.5KG |
Feature:
1. Compact and lightweight fixture. High brightness
2. 1pcs CREE 12W White led
3. 7Colors, 7 rotation gobos
4. with wireless IR Remote control
Specification:

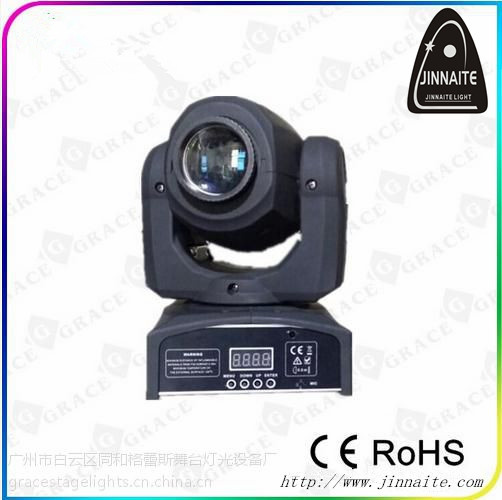

Powerful, mini moving head with a bright, white CREE LED with 12 W
7 colors + white
7 rotating gobos + fixed effect headlights
Separate color and gobo wheels
Manual focus
3 operation modes: DMX, Sound Active Mode and Internalionale show modes
2 DMX channel modes 9, & 11 DMX channel modes
4 shows integrated
Gobo Shake effect
Gobo scroll mode
Dimensions of the gobos: 74mm (15mm field of view)
Angle: 13 degrees
540 ° Pan / 230 ° Tilt (16-bit)
Schwenkungs- / tilt inversion mode
5 selectable dimmer curves (standard, Stage, TV, architecture and cinema)
Shutter: Random function for strobe / pulse effect, from slow to fast
Dimming: 0% - 100%
Fan cooled
Display vice versa
Including Omega-mounting bracket
Connections: DMX via 3-pin XLR cable
Wireless IR remote control enclosed: All in, standby, strobe, color change, dimming, control music on / off
Power consumption: 26 W at 120 V, 27 W at 230 V
Switching power supply: AC 100 - 240 V, 50/60 Hz
LED light source: - white CREE LEDs with 10 W (approximately 50, 000 hours)
Dimensions (L x W x H): 159 x 147 x 265 mm
Weight: 3 kg
DMX Channel:
channel 9 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|
|
| function | Pan | Tilt | Color | Gobo | Shutter | Dimmer | Pan/Tilt Speed rotate | Function | Dim Modes |
|
|
| channel 11 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| function | Pan | Pan Fine | Tilt | Tilt Fine | Color | Gobo | Shutter | Dimmer | Pan/Tilt Speed | Function | Dim Modes
|
Guangzhou JINNAITE Stage Lighting Equipment Factory is a professional manufacturer of stage lighting and outdoor lighting. Our products are also CE-certified and RoHS Directive-compliant. The main products are: Outdoor searchlight, Moving head light, Laser light, LED PAR light, LED effect light, Light controller, Follow spot light, Beam light, Stage effect machines. Our products can be widely used in places of entertainment like DJ, Club, all kinds of stage, party, and outdoor building. We offer comprehensive services from design to product assembly. Send us your custom requirements and we'll have a sample ready in just three days. Why not contacting us for high quality products with competitive price!
