feature:

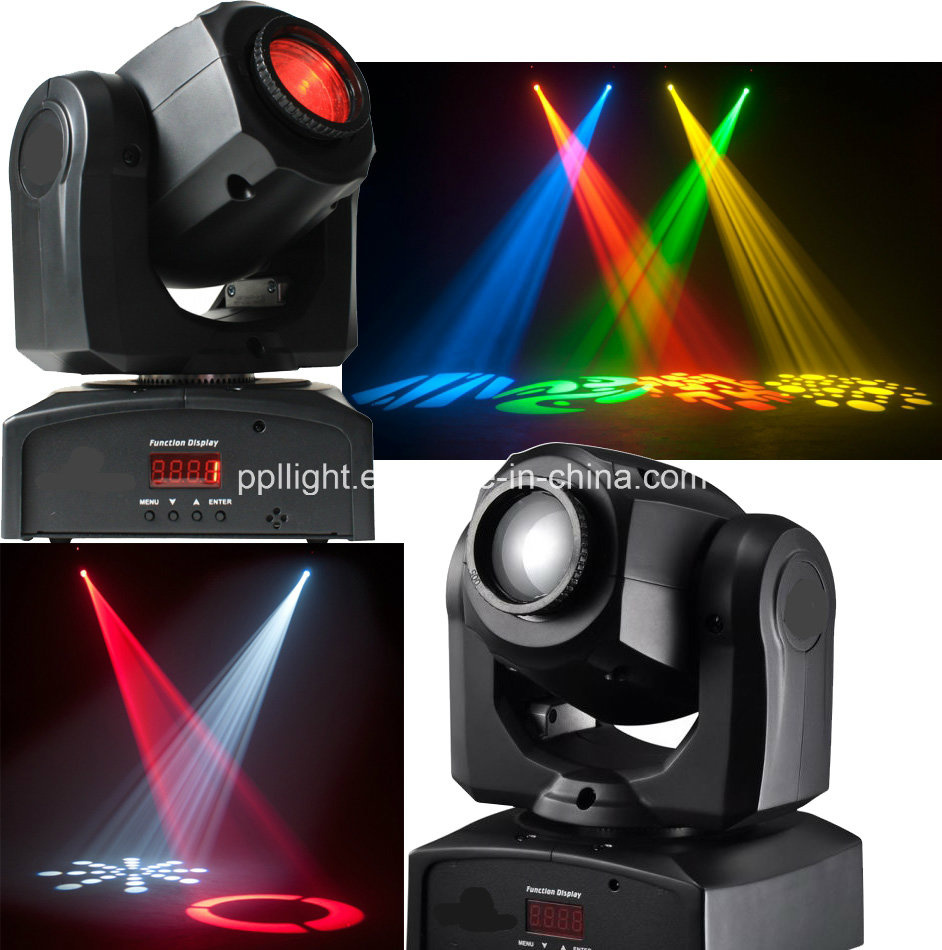

Powerful, mini moving head with a white bright 12 W CREE LED
beautiful color and multiple gobos
technical parameter:
7 colors + white
7 rotating gobos + fixed effect headlights
Separate color and gobo wheels
Manual focus
3 operation modes: DMX, Sound Active Mode and Internalionale show modes
2 DMX channel modes 9, & 11 DMX channel modes
4 shows integrated
Gobo Shake effect
Gobo scroll mode
Dimensions of the gobos: 74mm (15mm field of view)
Angle: 13 degrees
540 ° Pan / 230 ° Tilt (16-bit)
Schwenkungs- / tilt inversion mode
5 selectable dimmer curves (standard, Stage, TV, architecture and cinema)
Shutter: Random function for strobe / pulse effect, from slow to fast
Dimming: 0% - 100%
Fan cooled
Display vice versa
Including Omega-mounting bracket
Connections: DMX via 3-pin XLR cable
Wireless IR remote control enclosed: All in, standby, strobe, color change, dimming, control music on / off
Power consumption: 26 W at 120 V, 27 W at 230 V
Switching power supply: AC 100 - 240 V, 50/60 Hz
LED light source: - white CREE LEDs with 10 W (approximately 50, 000 hours)
Dimensions (L x W x H): 159 x 147 x 265 mm
Weight: 3 kg
| channel 9 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|
|
| function |
Pan |
Tilt | Color | Gobo | Shutter | Dimmer | Pan/Tilt Speed | rotate |
Dim Modes |
|
|
| channel 11 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| function | Pan | Pan Fine | Tilt | Tilt Fine | Color | Gobo | Shutter | Dimmer | Pan/Tilt Speed |
Function | Dim Mode |
