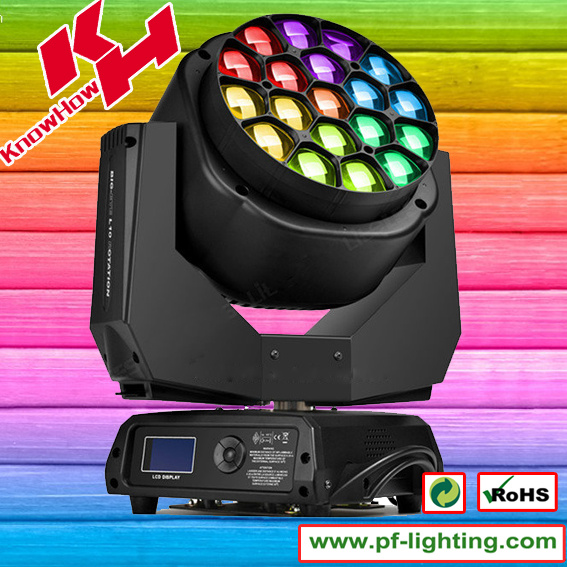

19x15W Bee eyes LED Moving Head Light, LED Moving Head Beam Light
SPECIAL FEATURES:
1.High brightness LED:
Osram Ostar 19x15w 4IN1 RGBW
2.Invisible front grid:
Compact and unique honeycomb design
3.Three effects:
Uniform wash,mid-air parallel beam, spectacular built-in graphic effects
4.Wonderful effects for projection use:
" kaleidoscope" and "Vortex"
5.Excellent zoom angle:
4-60°,suitable for small and big applications.
6.Individual LED control:
Benefit for dynamic effect.
7.Front lens:
Bi-directional and continuous rotating.
8. CTO:
Linear controlled 2500-8000K.
EFFECTS SECTION
Three operating modes: wash, beam, FX (Kaleido effects)
Front Lens Bi-directional Rotation
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
RGBW auto-tuning
CONTROL AND PROGRAMMING
DMX512: 3/5-pin XLR IN-OUT sockets
BODY
Two side handles for transportation
PAN lock for transport and maintenance
MOVING BODY
Movement by means of two stepper motors, controlled by microprocessor
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
Travel:
PAN = 540°
TILT = 210°
ELECTRONICS
Preset color and graphic effect macros
Function reset controllable from a central control unit
Menu-driven internal self-test function
Display: backlit white-and-blue graphic LCD display
SAFETY DEVICES
Automatic power safety derating in case of overheat of the LED board
PACKING
SIZE:494*358*253
WEIGHT
15 Kg
Specification:
Item No. | KH-1915 |
POWER SUPPLY | 100-240V 50/60Hz |
LAMP SOURCE | 19×15W Osram Ostar RGBW LEDs,50,000 h. |
| Color temperature:2500 - 8000 k |
OPTICS | 4°-60° Electronic Zoom angle |
EFFECTS SECTION | Three operating modes: wash, beam, FX (Kaleido effects) |
| Front Lens Bi-directional Rotation |
| Digital Wash-Beam Framing effect |
| Beam edge softening control (in Wash mode) |
| 0-100% linear electronic dimmer |
| Adjustable speed stop/strobe effect, with instantaneous blackout |
| Dedicated channel for color temperature setting |
| RGBW auto-tuning |
CONTROL AND PROGRAMMING | DMX512: 3/5-pin XLR IN-OUT sockets |
| Power connect: Powercon in&out |
MOVING BODY | Movement by means of two stepper motors, controlled by microprocessor |
| Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit. |
Display: | LCD display |
Travel: | PAN = 540° |
| TILT = 210° |
Dimession: | 494*358*253 |
Weight: | 15 Kg |
