technical parameter:
Voltage: 100-240V 50/60Hz

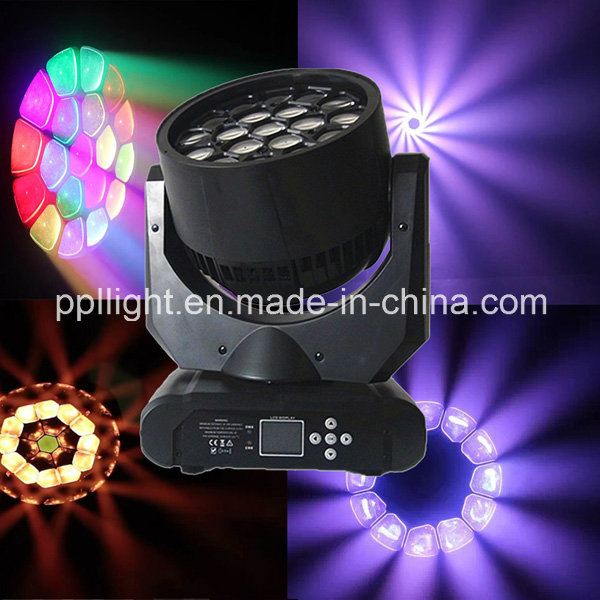

Lamp resource: 19× 15W Copy Osram Ostar RGBW 4-in-1 high brightness LEDs, 50, 000 h.
Color temperature: 2500 - 8000 k
Optics: 4° -60° Electronic Zoom angle
Effect: Three operating modes: Wash, beam, FX (Kaleido effects)
Front Lens Bi-directional Rotation
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
RGBW auto-tuning
CONTROL AND PROGRAMMING
DMX512: 3/5-pin XLR IN-OUT sockets
Power connect: Powercon in&out
MOVING BODY
Movement by means of two stepper motors, controlled by microprocessor
Automatic repositioning of PAN and TILT after accidental movement not
Controlled by control unit.
Display: LCD display
Travel:
PAN = 540°
TILT = 210°
Dimession
Size: 494*358*253
Weight: 15 Kg
| channel | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| function | Pan | Pan fine | Tilt | Tilt fine | Pan/Tilt speed | lens
rotate | speed oflens rotate | Macro dimmer | strobe | red dimmer | green dimmer | blue dimmer | white dimmer | static built-in effect | dynamic built-in effects | Dynamic built-in effects speed | Macro
function | reset |
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
