| Prod Model: |
PPL-M19BEYE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Using Place: |
KTV, Disco, Theatre, Professional Stage |
| LED Source: |
19PCS RGBW 4in1 LEDs |
| Beam Angle: |
6degree |
| Effect: |
Wash, Beam, Graphics |
| G.W.: |
10kgs |
| Dimension: |
30*23*37cm |
| Control Channel: |
32CH |
| Strobe: |
Electronic Strobe |
| Control Mode: |
Master Slave Mode |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Voltage: |
220V |
| Light Source: |
Copy Osram Ostar |
| Material: |
PC Engineering Plastic |
| Emitting Color: |
RGBW |

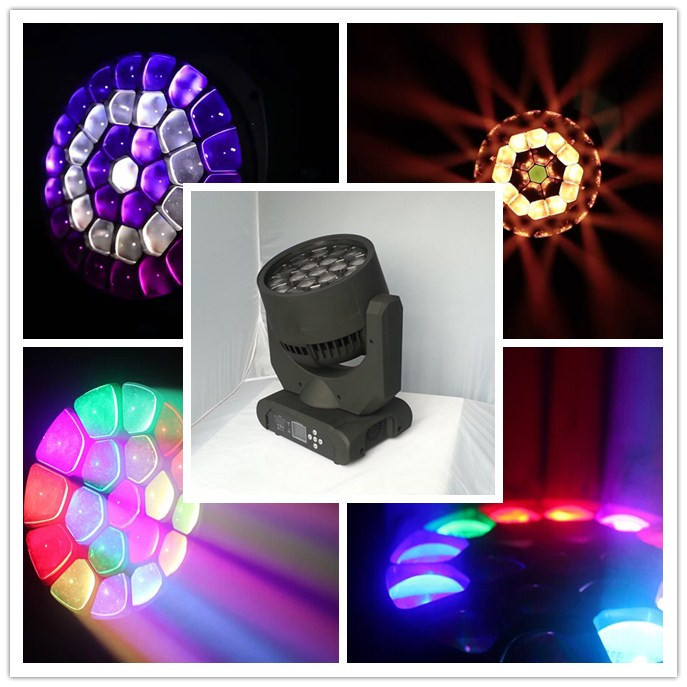

Product Description
Specification:
LED Source: 19pcs 12W high brightness 4in1 LEDs
Voltage: AC100-240V, 50-60 Hz
Power consumption: 260W
Control Mode: Master/slave, DMX
Beam angle: 6 degree
Strobe: 0-25 Hz
Color: RGBW color mixture system
Channel: 18 Channels
Effect: Wash, beam, Graphics, Built-in 51 static effects and dynamic effects(Windmill effect)
Front Lens infinite rotation
Working Temperature: -25º C - 40 º C
Working Lifetime: 50000 hours
Pan: 540° , speed controllable,
Tilt: 210° , speed controllable
IP rate: IP 20
Dimension: 30*23*37 cm
Net weight: 8 Kg
Gross weight: 10kg
Special points:
Lamp board plate can rotate continuous 360° To make amazing effect. Speed controllable.
Built-in with 51 static effects, 51 dynamic effects, Multiple built-in programs
Special LENS, unique design to make amazing effect.
DMX Channel:
| channel | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| function | Pan | Pan fine | Tilt | Tilt fine | Pan/Tilt speed | lens rotate | speed of lens rotate | Macro dimmer | strobe | red dimmer | green dimmer |
| 12 | 13 | 14 | 15 | 16 | 17 | 18 |
|
|
|
|
| blue dimmer | white dimmer | static built-in effect | Dynamic built-in effects | Dynamic built-in effects speed | Macro function | reset |
