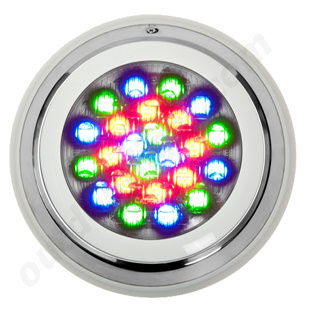

18X1W RGB Stainless surface mounted pool light,led wall mounted pool light
swimming pool light is made of high quality stainless
LED available in multi color RGB
18X1W RGB Stainless surface mounted pool light,led wall mounted pool light details spec
Specification | Parameters |
Model No. | LF-SPL-18*1W | LF-SPL-18*3W(RGB 3 IN 1) |
LED Qty | 18 pcs 1W High Power | 18 pcs 3W(RGB 3 IN 1) High Power |
Input Voltage | AC/DC 12-13V | AC/DC 12-13V |
Frequency | 50/60 Hz | 50/60 Hz |
Power | 18±1w (RGB) 14±1w (R) 18±1w (G) 18±1w (B) | 24±1w(RGB) |
Color Temperature | w.w.3000-3500K p.w.6000-7000K c.w.8000-10000K | RGB only |
Luminous Flux | P.W. 1300Lm±10% W.W./C.W. 1100Lm±10% 400Lm±10%(R)/ 800±10%(G)/200±10%(B) RGB: 450±10%Lm | 800±10%(RGB) |
Beam angle | 30°/45°/60° | 30°/45°/60° |
Dimension | 300*70mm | 300*70mm |
Working temperature | -10~+50 | -10~+50 |
Constant driver | yes | yes |
IP rate (w/housing) | IP68 | IP68 |
Packing | 6 Pcs/ctn 70*39*39mm G.W.12 kg | 6 Pcs/ctn 70*39*39mm G.W.12 kg |
18X1W RGB Stainless surface mounted pool light,led wall mounted pool light pictures:
18X1W RGB Stainless surface mounted pool light,led wall mounted pool light features:
* Size: LF-SPL-5050-18W/252-15W/315-18W: 295(diameter) * 65(height) mm
LF-SPL-18x1W/18x3W: 300(diameter) * 70(height) mm
LF-SPL-12W (SMD5730) / (SMD5050): 230(diameter) * 45(height) mm
LF-SPL-12*1W/9*1W/6*1W: 230(diameter) * 45(height) mm
* Plastic body & pc cover or Stainless steel body & pc cover, easy to install.
* IP rating: IP68
* Constant driver to make sure LED light working stably, avoid any flashing and noisy
* Voltage:AC/DC 12V, Frequency: 50/60HZ
* High quality and brightness LED source.
* Projection distance: 10-20 meter
* Color: Single color - white, red, green, blue, yellow
* Color: RGB, 14 kinds of color changing program
* 6 kinds of RGB control mode: Remote control, WIFI control, DMX 512 control,
Remote & switch remote control, Automatic control
* Beam angle:DIP-25°or 120°,SMD5050/3528/5730-120°,high power-25°or 30°or 45°or 60°;
* Life span 30000 hours
* Overcurrent protection
18X1W RGB Stainless surface mounted pool light,led wall mounted pool light
swimming pool, underwater,garden fountains
Stainless surface mounted pool light,led wall mounted pool light testing:
