E-SOURCES is a professional LED light and LED light pcba
manufacturer in China, such as led bulb lights, panel lights, ceiling
lights, and etc.
We ooperation with branded lighting companies ---G.E. Lighting, Philips,
NVC, Osram, Ikea . The quality of the products are guaranteed.

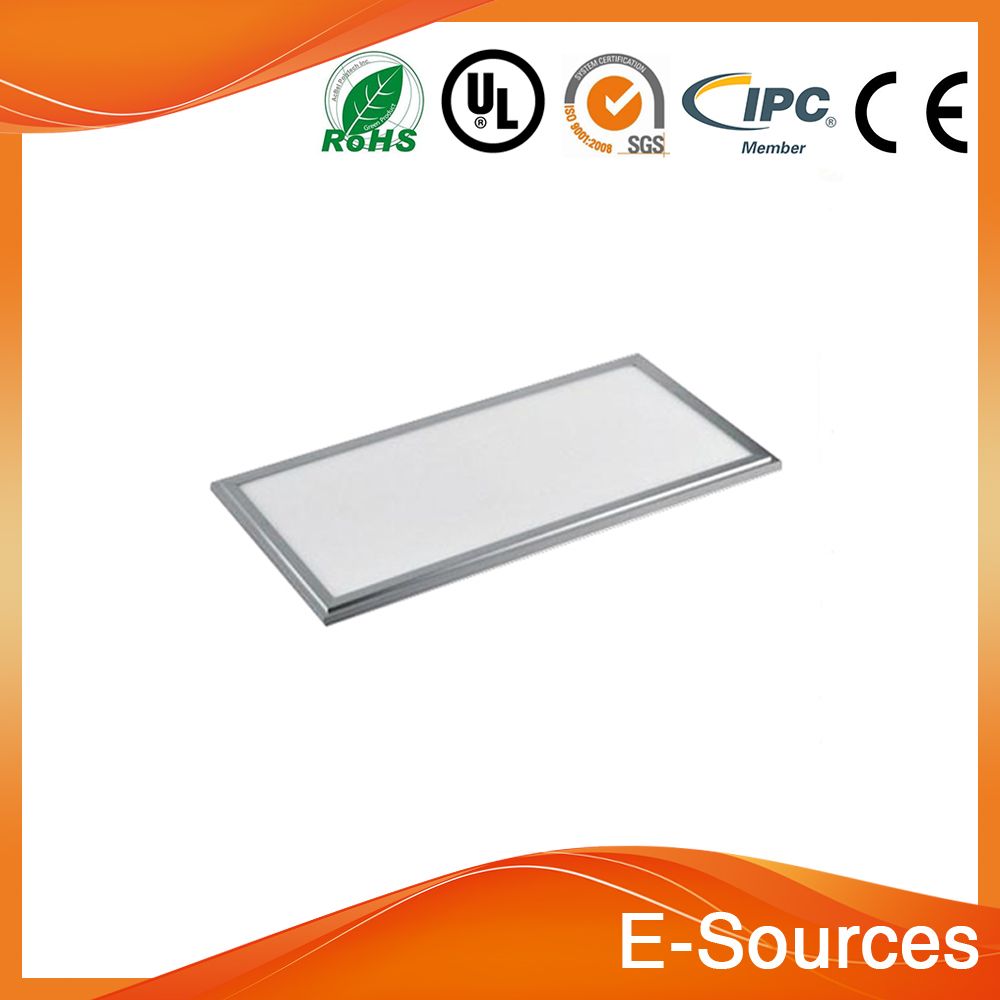

Speciafications:
Power: 36W
Input: AC85-265V
Material: Aluminum+ Acryl
Color temperture: 2700-3200K
Power Factor: ≥0.95
Power efficiency: 82-85
CRI:≥80Ra
Beam angle:120°
size: 600*600*11 mm
LED type: SMD2835
LED qty: 160pcs
Key Feature
1, Unique designed heat protection structure,assure leds with low light decay, less than 3% within 2000H
2, Built-in high efficiency driver,AC85-265V wide range voltage input, constant current output, can work under unstable voltage
3, Environment Friendly: No UV,IR radiation,No Mercury, No pollution
OEM , ODM acceptable.
Excellent Service, our experienced engineers and advanced equipments can control the producing, inspection and after service to satisfy our customers need, and our dedicate sales team can provide 24 hours service.
Our advantages:
Factory Manufacture Capability |
NO | ITEM | Techinical capabilities |
1 | Materials | Aluminum FR-4 |
2 | layers | 1-36 layers |
3 | Min. core material | 5mil(excluding copper) |
4 | Prepreg type | 7628 2116 1080 3313 |
5 | Max. board size | 520*720mm |
6 | Copper thickness | min. base copper 1/3 OZ |
max. finished copper6OZ |
7 | Min. board thickness | 2- layer 10mil |
4- layer 16mil |
6-layer 24mil |
8-layer 32mil |
10-layer 40mil |
8 | Max. board thickness | 236mil(finished board thickness) |
9 | Min. line width/space | 3mil/3mil HOZ copper base(inner layer) |
10 | Min. hole size | 8mil |
11 | PTH wall thickness | ≥ 1mil |
12 | Hole dia. tolerance | ± 3mil |
13 | Hole dia. tolerance | ± 2mil |
14 | Countersink hole | Min. depth(D)6mil; The Depth of tolerance± 6mil |
16 | Min. solder mask bridge | 3.2mil(HOZ base copper, green) |
17 | Outline tolerance | ± 4mil |
18 | Twist & Bow | ≤ 0.75% |
19 | Peelable mask thickness | ≥ 8mil 1 printing |
20 | Insulation Resistance | > 1012Ω Normal |
21 | Through hole | < 300Ω Normal |
resistance |
22 | Current breakdown | 10A |
23 | Peel strength | 1.4N/mm |
24 | S/M abrasion | > 6H |
25 | Thermal stress | 28 degrees 20Sec |
26 | Test Voltage | 20-300V |
27 | Min. blind/burried via | 8mil |
28 | Surface finish | HAL ENIG IMAG IMSN OSP HAL+G/F ENIG+G/F |
29 | Impedance control | Single ended impedance 50Ω /70Ω ± 10% Normal |
Differential impedance 90Ω /100Ω ± 10% Normal |
30 | Max. aspect ratio | 12:01 |
FAQ Q1: What is your products range?
We provide PCBA for IT, communication, tablet PCs, smart cards, financial equipments, auto electronics, GPS modules. We can do OEM,ODM.
Q2:Do you provide material sourcing service?
We have our own industry chain. Our material sources are stable, high quality and low prices.
Q3:Do your pay for import taxes and duty?
No, they are not included. Clients should pay for them.
Q4:How long do you need to make samples? And how about the lead time?
About 15-20 days for samples, and about 45 days bulk production after get your payment
Q5: How do you make sure product quality?
We have 3D SPI, AOI,and we do ICT, Electronic test, Visual inspection, Functional test.
