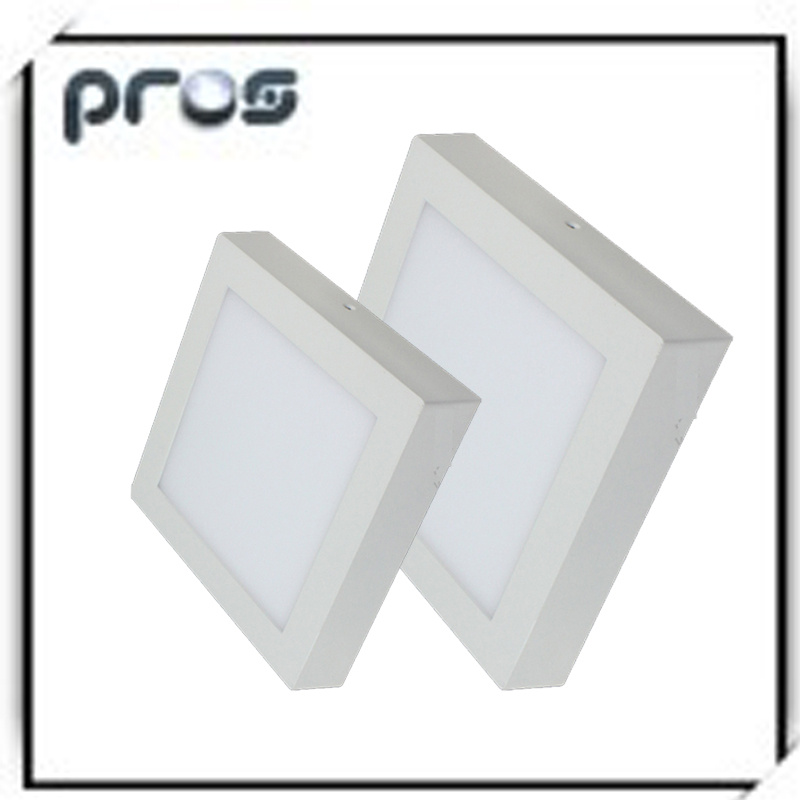

18W Square LED Light Panels for Ceiling Down Lights

Led panels / led light panels / led panel lights

Main Features
1. The product is for surface mounted. They don't need cut-out when installation. It's easy for installation and could be used as ceiling lamp and wall lamp.
2. High brightness up to adopting side light technology. Using good reflectivity light leading board, it is thinner and
Brighter, the light is more equally.
3. Low voltage and constant current driver, no glare, the light is soft.
4. Using high lumen SMD light source high intensity aluminum shell, heat faster.
5. High brightness SMD 2835 LED lighting source, about 120-130lm for one watt.
6. Launch in 0.01sec, no flashing, no noise, no radiation. Energy saving belongs to grand environmental light.
7. Long service life, high luminous efficiency.
8. Dimmerable also available.
9. Combination with technology and art, showing high brightness without seeing the lamp itself.
10. CE&RoHS certificated.


Typical Applications
1. Office lighting.
2. Home lighting.
3. Commercial Lighting, such as supermarket, shopping mall, etc
4. Hotel and restaurant lighting.
5. Public lighting

Installation instruction:
1. This product is limited to indoor use.
2. Hole size of the ceiling should be the same as the lamp's cutout size.
3. Connect the DC connectors with the lamp and the driver.
4. Insert the pinch to the ceiling, make sure it is fastened.


Caution:
1. Confirm the goods have no damaged during the transportation before using.
2. Packing materials should be stayed away from children, prevent children from playing the plastic bag and small
Accessories lead to suffocate or swallowed.
3. Put away from the children, do not let the children touch the lamp when it is working.
4. Don't cover any things on the products. Put away from the fire or high temperature object.
5. Lay people can not tear down or maintain the product. We have the authority to refuse giving any warranty to the products which are repaired without our instruction.
6. Please shut off the power before clean the lamps. Only use the dry dish cloth to clean. Don't use any chemical or corrosive material to the lamps.

Item No.	Light Source	Power Consumption	Lumen	Size A	Size B	Size C	Frequency	Color	Input Voltage
PL-P-R6W-M-SM	30pc 2835SMD LED	6W	570lm	120mm	120mm	40mm	50/60Hz	Warm white White	100-240VAC
PL-P-R12W-M-SM	60pc 2835SMD LED	12W	1140lm	180mm	180mm	40mm	50/60Hz	Warm white White	100-240VAC
PL-P-R18W-M-SM	90pc 2835SMD LED	18W	1700lm	225mm	225mm	40mm	50/60Hz	Warm white White	100-240VAC
PL-P-R18WB-M-SM	90pc 2835SMD LED,	18W	1700lm	240mm	240mm	40mm	50/60Hz	Warm white White	100-240VAC
PL-P-R20W-M-SM	100pc 2835SMD LED	20W	1900lm	240mm	240mm	40mm	50/60Hz	Warm white White	100-240VAC
