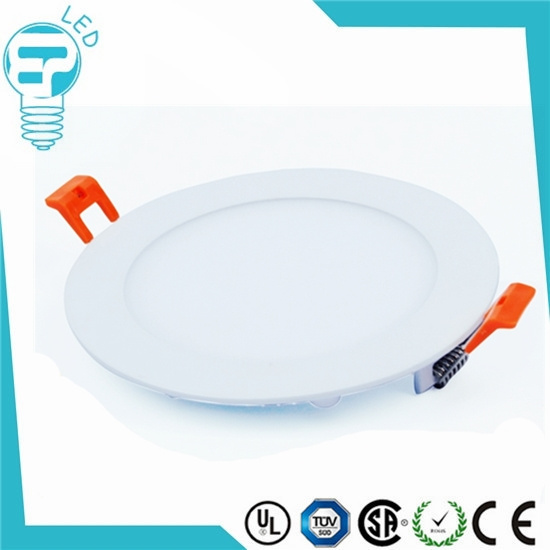

3-24W round and squre LED panel light
2016 hot sell led panel light:
What is our feature of our led panel light?
1. Good heat dissipation: Slim body, aluminum housing, aluminum print circuit board.
2. Safer experience: Isolated driver, input voltage: AC 85-265V, the voltage is avaliable for all over the world.
3. Eyes protected: Light ray is emited from edge, making the light softer and evener, which protect the eyes from direct rays of the lights.
4. Less power consumption: LED light source provide a lot more luminum flux than the original light source while they cost less power consumption at the same condition.
Item No | EP-PL-3W | EP-PL-4W | EP-PL-6W | EP-PL-9W | EP-PL-12W | EP-PL-15W | EP-PL-18W | EP-PL-24W |
|
| Power | 3W | 4W | 6W | 9W | 12W | 15W | 18W | 24W |
| Dimension | Ø 90*13mm | Ø110*13mm | Ø120*13mm | Ø150*13mm | Ø170*13mm |
Ø190*13mm |
Ø225*13mm | Ø300*65 mm |
|
| Operation Hole | 70 mm | 90 mm | 100mm | 130 mm | 150mm | 170 mm | 190mm | 280mm |
| 2.5 inch | 3 inch | 3.5inch | 4inch | 5inch | 6inch | 8inch | 10inch |
| Led chip | SMD3528 Sanan or Epistar chip |
| Quantity of smd leds | 15pcs | 20pcs | 30pcs | 45pcs | 60pcs | 75pcs | 90pcs | 120pcs |
| Color Temperature | cool white: 6000-6500k pure white :4000-4500k warm white: 2700-3300k |
| Beam Angle | 120° |
| Input Voltage | AC85-265V DC12-24V |
| Driver | Constant current drive power supply drive power supply, intelligent IC control |
| PC cover | frosted |
| Lumens | 300lm | 400lm | 600 lm | 900lm | 1200 lm | 1500 lm | 1800 lm | 2400lm |
| CIR (Ra) | >80 |
| PF rate | >0.9 |
| Working Temperature | -25 - 45°C |
| Lifespan | >50000Hours |
| Warranty | 3 years |
| Material | Aluminum alloy |
| Certifications | CE, ROHS, SAA,TUV,FCC,UL |
Thickness of light body: 12mm
Total high of light: 20mm
With 0.2W/PCS 2835 beads, whose chip can be Sanan, LOT, Edison, SAMSUNG, and so on. It depends on your requirement.
Adopting isolated driver, provide safer user experience.
Samples for LED slim panel light can be provided within 5 days.
Different laser print drawing can be marked on the Housing of lights and drivers.
Shape for slim panel light: Round and square
Power for slim panel light:3W 4W 6W 9W 10W 12W 14W 15W 18W 24W.
Why choose us as your LED bulb lights supplier?
New Bulbs can be reached 80LM/W, PF>0.9 with very competitive price.
In order you deeply to know our products whether suitable for you, our advantage as below:
1. Warranty: 100% 2 years warranty.
2. Sample policy: We can offer Sample for you test soon, Samples can be ready in 1~3 days.
3. Discounts: Discounts based on you order quantity.
4. Price: We offer good price and market solution support you market.
5. Factory space: 5800 square meters
6. R & D: 10 engineers has at least ten years experience.
7. Certifications: CE, RoHS, UL, FCC, TUV(in the application), EMC, EMI
QUALITY CONTROL
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability, and we will also test its temperature after 24 hours' lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well. Each lamp should pass all these QC procedures before shipping to customer.
Application of LED bulb :
Residential Buildings, Home, Office, Meeting Room, School, Library, Factory, Warehouse, Hotel, Casino, Parking Garage, Hospital, Commercial Center, Supermarket, Shopping mall, anywhere you want.
TRADE TERMS
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping. Or L/C, or Western Union for small amount.
2. Lead time: Normally in 5~10 days after deposit received
3. Sample policy: Samples are always availble for each model. Samples can be ready in 3~7 days once payment received.
4. Shipping port: Guangzhou, China
5. Discounts: We offer discount for big quantity.
DELIVERY DETAIL
We ship goods by UPS/DHL/FedEx/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive, or by sea which takes about one month to arrive, depending on your actual requirements.
OUR SERVICES
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
