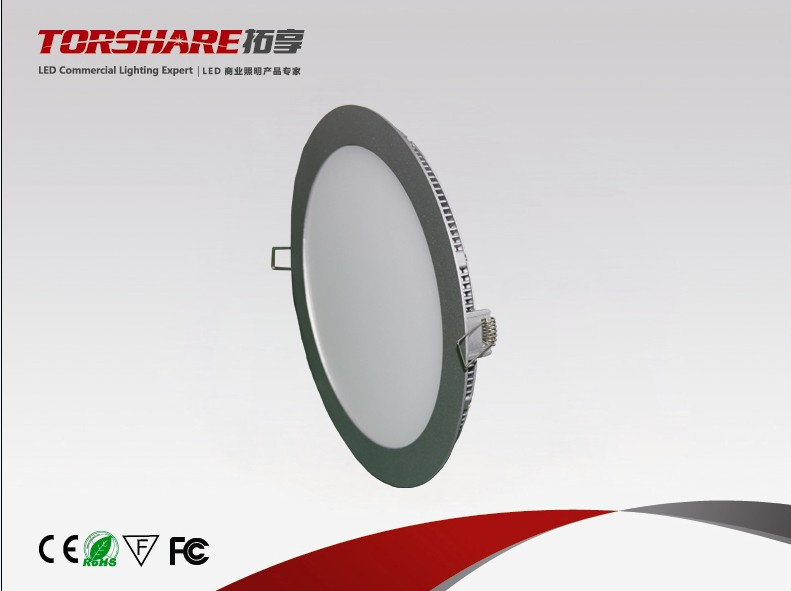

LED Panel Features
Super slim and efficient design
Unique extruded aluminum with very slim design (12mm thickness), lighting comes all around into light guide panel, more efficient heat dissipation, lowers the light decline efficiently. Ensure the lumen output maintenance factor above 80%, after using 35, 000 hours.
High light efficient and energy saving
Bigger chip super Brightness SMD LED used as light source, the whole lamp with high intensity, and energy saved up to 50%.
Long Life-span
With top-quality SMD LED, and good heat dissipation, make sure the life-span up to 5 years.
Top quality light effect
The whole panel with top quality light effect, instant start, no UV & heat radiation, no electric wave, no flickering, no humming, it's an ideal green and environmental lighting.
Special heat
New inner high efficient (95%) heat protection system, the constant current driver can work under unstable voltage.
Environmental friend
Safe and durable, can be cyclic utilization, no such hazard for lead or Mercury enter the environment.
High safety coefficient
The whole lamp is with high safety coefficient. With wide working voltage, low power consumption, and low heat dissipation, no potential safety hazard.
Double energy saving
We offer dimmable panel light for choice, you can dimmer you lamp with different requirement to achieve double energy saving. Our Panel goes smoothly while low brightness dimming without Blink.
|
Parameter |
Symbol |
Absolute Maximum Rating |
Unit |
|
Forward Current |
IF |
350 |
mA |
|
Power Dissipation |
PD |
15 |
W |
|
Electrostatic discharge |
ESD |
800 |
V |
|
Operating Temperature |
Topr |
-25+60 |
° C |
|
Storage Temperature |
Tstg |
-40+80 |
° C |
Electrical / Optical Characteristics at TA=25 ° C
|
part |
power |
size |
CCT |
lumen |
input |
input |
CRI |
quantity |
|
Electricity |
voltage |
|
PL026 |
10w |
150*150*22.5mm |
White |
550 |
9-12V |
AC85-265V |
75 |
90 |
|
4200K |
|
Warm White |
610 |
60 |
|
3000K |
|
PL028 |
10w |
180*1806*22.5mm |
White |
560 |
30-35V |
AC85-265V |
75 |
90 |
|
4200K |
|
Warm White |
612 |
65 |
|
3000K |
|
PL027 |
18w |
240*240*22.5mm |
White |
1000 |
20-30V |
AC85-265V |
75 |
160 |
|
4200K |
|
Warm White |
1050 |
65 |
|
3000K |
|
PL009 |
15w |
240*240*65mm |
White |
760 |
20-30V |
AC85-265V |
75 |
160 |
|
4200K |
|
Warm White |
830 |
65 |
|
3000K |
|
PL010 |
15w |
240*240*65mm |
White |
760 |
20-30V |
AC85-265V |
75 |
160 |
|
4200K |
|
Warm White |
830 |
65 |
|
3000K |
