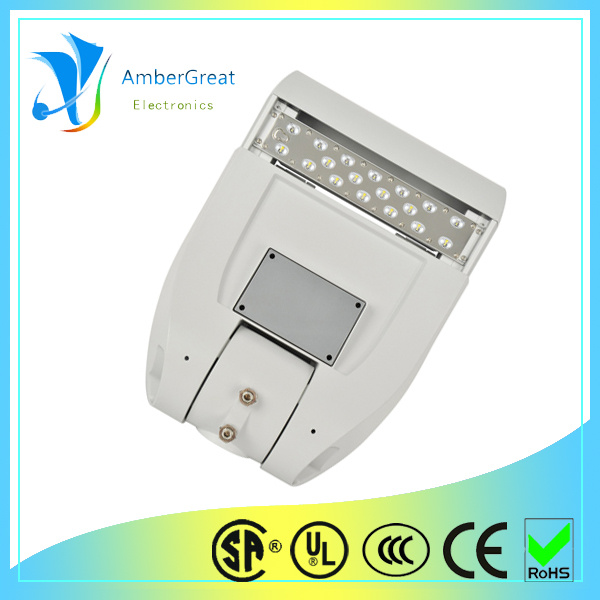

Product Name: Aries Series LED Street Lights / Light / Lamp 180W with Radar sensor / CREE Chip / Wago Connector / Philips Driver, IP66, RoHS / CE Mark AG-L108A
Replacements available for existing 525W bulbs
Technical parameters:
Wattage: 180W
Input voltages: 120 to 277V AC (277 to 480V)
LED quantity: 108 pieces
Fixture light effect: 122lm/W
CRI: >75Ra
SPD: 10kV
IP rate: IP66
CCT: 5, 028 ± 283K
Delivered flux: 19, 200lm
LED drive current: 0.53A
Chip: CREE XT-E
Control systems: DALI/0 to 10V/motion sensor/photocell
Installation way: Pole, arm branch
Connector: WAGO
Casing material: Die-cast aluminum casing
Size: 754 X 340 X 142mm
Weight: 9.6kg
Lifetime: >50, 000 hours
Warranty: 5 years
Smart Technology Features:
√ Top of the line, American Made, Cree LED Chips
√ Programmed lenses for type I-V light distribution
√ UL rated Philips driver(s) in IP66 separate compartment to isolate heat (No Ballasts Required)
√ UL rated programmable dimmer to reduce brightness and conserve power
√ Radar motion sensor to increase brightness when dimming is active
√ Side view photocell sheltered from direct sun for on/off
√ Die cast waterproof IP-66 aluminum alloy casing
√ 130 degree adjustable arm to throw horizontal light
√ Passive heat dissipation system. No fans to malfunction
√ Power factor of 0.95
√ Five year warranty standard
√ Compatible with RF lighting control systems
√ 60,000 hour life equals over 13 years at 12 hours per day without dimming
√ 120-277V or 277-480V
√ German WEGO wire connectors
√ Color Rendering Index >75 (older, "traditional" style lot lights are <60)
√ Environmentally friendly Dark Sky Compliant
√ Replacements available for existing 525W bulbs
Intensity Distribution Diagram:
