Advantages of fin-shaped heat sink:
A. Made of aluminum alloy 1070, thermal conductivity is much higher.
B. Designed with plenty of ultra-thin fins and wind tunnels, much larger heat dissipation area and better cooling efficiency than traditional die casting material or lathe aluminum.
C. With the same cooling effect, its weight is just 60-70% of the traditional ones.
D. We design the whole set mould and manufacture the heat sink by ourselves.
Weight Comparison
Weight
Watt Traditional LED high bay Sense fin-shaped heat sink LED high bay
60W 3.2 kg 2.6 kg
80W 5.8 kg 2.9 kg
120W 7.5 kg 3.8 kg
180W 8.1 kg 4.9 kg
220W 10.3 kg 5.7 kg
260W 11.5 kg 6.2 kg
Sense LED SAA High Bay Specification:

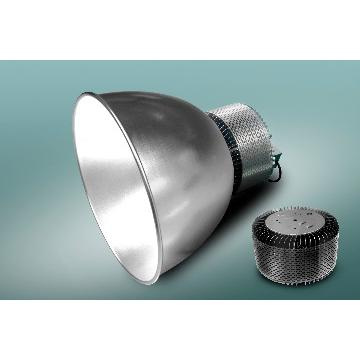

Name: 180W LED SAA High Bay
Size: D410xH521mm
Material: Aluminum+PC or Aluminum+ Aluminum
Input Voltage (VAC): AC100-277V 50/60Hz
Beam Angle: 70° Or 120°
Light Source: 4 PCS COB LED_Bridgelux Chips
Certificates: SAA, CE
Other Functions: Dimmable and emergency functions are available.
Item Number Color Color Temperature Luminous Flux CRI
SE-HBAL-180W Warm white 2700-3300K 16200lm >70
SE-HBAL-180N Neutral white 4000-4500K 16650lm >70
SE-HBAL-180P Pure white 5000-5500K 17100lm >70
Dong guan Sense technology was founded in 2009 and is a TUV ISO 9001: 2008 certified and registered company. Currently there are over 300 employees, 100 sets machines (Such as bonding machine, photometric machine, constant temperature and humidity machine) and a fabrication machine area of more than 20, 000 square meters. High-grade materials and state-of-the-art equipment and assembly lines are utilized throughout the manufacturing process of each of our products. The entire production process is supervised by professional personnel; Every product undergoes multiple QC stages to ensure optimum performance and functionality. We have achieved CE, SAA and RoHS certificates.
The experts at our R&D department are specialized in all areas from electronics, components, thermal management and optics to industrial design. What is more, we also have our own metal heat sink production factory to make sure our newly designed products can be put into market when make sure the first class level quality!
