Product details

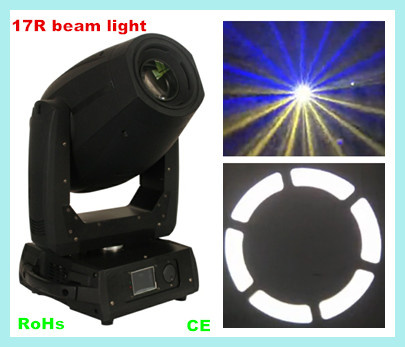

Lamp: 350W (17R)
Voltage: 90V-240V/50-60HZ
Power: 480W
Gobo wheel 1: 8gobos with white with rotation effect
Gobo wheel 2: 14gobos with white with shaking effect
Color wheel: 6 colors plus white with rainbow effect
Prism: 3 facet Prism, rotation in both directions
Zoom: Electronic liner zoom system Electronic Focus
Pan 540° , 8 or 16 bit; Tilt 270° , 8 or 16 bit.
Lamp control: Function via the controller. Strobe: 1-13 times/s
Dimmer: 0-100% mechanical linear dimming Ir-si: 10-100%
Frost leng. Pan/Tilt Resolution: 16bit
C/M/Y(Cyan/Magenta/Yellow)Control Channels: 21 CH/23CH/34CH
Lamp 50% Power
Features
The 15R moving head spot has 2 gobo wheels and total 22 gobos. At the same time, the gobos are with shaking effect.
The 15R moving head spot has 6 colors with rainbow effect
Effect photos
DMX channel´s functions and their values (34 DMX channels): |
Mode/Channel | Value | Function |
St | Ba | Ex |
|
|
1 | 1 | 1 |
| PAN Movement 8bit : |
0-255 | PanMovement |
2 |
| 2 |
| PanFine 16bit |
0-255 | Finecontrol of Pan movement |
3 | 2 | 3 |
| TILT Movement 8bit : |
0-255 | TiltMovement |
4 |
| 4 |
| Tilt Fine 16bit |
0-255 | Fine control ofTilt movement |
5 | 3 | 5 |
| ColorWheel : |
0-11 | Open/ white |
12-23 | Color1 |
24-35 | Color2 |
36-47 | Color3 |
48-59 | Color4 |
60-71 | Color5 |
72-83 | Color6 |
84-95 | Color7 |
96-107 | Color8 |
108-119 | Color9 |
120-127 | Color10 |
128-189 | Forwardsrainbow effect from fast to slow |
190-193 | Norotation |
194-255 | Backwardsrainbow effect from slow to fast |
|
| 6 |
| Color Wheel Fine: |
0-255 | ColorWheel colour change to any position Fine |
6 | 4 | 7 |
| Cyan Color : |
0-255 | Cyan(0-white, 255-100% Cyan) |
|
| 8 |
| Cyan ColorFine : |
0-255 | CyanFine |
7 | 5 | 9 |
| Magenta Color: |
0-255 | Magenta(0-white, 255-100% magenta) |
|
| 10 |
| Magenta ColorFine : |
0-255 | MagentaFine |
8 | 6 | 11 |
| Yellow Color : |
0-255 | Yellow(0-white, 255-100% Yellow) |
|
| 12 |
| Yellow ColorFine : |
0-255 | YellowFine |
9 | 7 | 13 |
| Rotatinggobos, cont. rotation |
0-9 | Open |
10-19 | Rot.gobo 1 |
20-29 | Rot.gobo 2 |
30-39 | Rot.gobo 3 |
40-49 | Rot.gobo 4 |
50-59 | Rot.gobo 5 |
60-69 | Rot.gobo 6 |
70-79 | Rot.gobo 7 |
80-95 | Rot.gobo 1 shake |
96-111 | Rot.gobo 2 shake |
112-127 | Rot.gobo 3 shake |
128-143 | Rot.gobo 4 shake |
144-159 | Rot.gobo 5 shake |
160-175 | Rot.gobo 6 shake |
176-191 | Rot.gobo 7 shake |
192-255 | Rot.gobo wheel cont. rotation slow to fast |
10 | 8 | 14 |
| Rotatinggobo index, rotating gobo rotation : |
0-127 | Goboindexing |
128-189 | Forwardsgobo rotation from fast to slow |
190-193 | Norotation |
194-255 | Backwardsgobo rotation from slow to fast |
|
| 15 |
| Rotating goboindexing Fine |
0-255 | Fineindexing |
11 | 9 | 16 |
| FixedGobos : |
0-7 | Open/hole |
8-15 | Gobo1 |
16-23 | Gobo2 |
24-31 | Gobo3 |
32-39 | Gobo4 |
40-47 | Gobo5 |
48-55 | Gobo6 |
56-63 | Gobo7 |
64-71 | Gobo8 |
72-79 | Gobo9 |
80-87 | Gobo10 |
88-95 | Gobo11 |
96-103 | Gobo12 |
104-111 | Gobo13 |
112-119 | Gobo14 |
120-126 | Gobo1 shake slow to fast |
127-133 | Gobo2 shake slow to fast |
134-140 | Gobo3 shake slow to fast |
141-147 | Gobo4 shake slow to fast |
148-154 | Gobo5 shake slow to fast |
155-161 | Gobo6 shake slow to fast |
162-168 | Gobo7 shake slow to fast |
169-175 | Gobo8 shake slow to fast |
176-182 | Gobo9 shake slow to fast |
183-189 | Gobo10 shake slow to fast |
190-196 | Gobo11 shake slow to fast |
197-203 | Gobo12 shake slow to fast |
204-210 | Gobo13 shake slow to fast |
211-217 | Gobo14 shake slow to fast |
218-255 | Gobowheel rotation from slow to fast |
|
| 17 |
| Fixed gobo indexing Fine |
0-255 | Fixedgobo Fine indexing |
12 | 10 | 18 |
| 3facet rotating prism, Prism / Gobo macros: |
0-31 | Open |
32-127 | Rot.Prism |
128-135 | Macro1 |
136-143 | Macro2 |
144-151 | Macro3 |
152-159 | Macro4 |
160-167 | Macro5 |
168-175 | Macro6 |
176-183 | Macro7 |
184-191 | Macro8 |
192-199 | Macro9 |
200-207 | Macro10 |
208-215 | Macro11 |
216-223 | Macro12 |
224-231 | Macro13 |
232-239 | Macro14 |
240-247 | Macro15 |
248-255 | Macro16 |
13 | 11 | 19 |
| Rotatingprism: |
0-127 | Prismindexing |
128-189 | Forwardsprism rotation from fast to slow |
190-193 | Norotation |
194-255 | Backwardsprism rotation from slow to fast |
|
| 20 |
| Rotating Prismindexing Fine |
0-255 | Fineindexing |
14 | 12 | 21 |
| Focus |
0-255 | Continuous: adjustment from near to far |
|
| 22 |
| Focus Fine: |
0-255 | Continuous adjustmentFine |
15 | 13 | 23 |
| Zoom |
0-255 | Zoomadjustment: from small to big |
|
| 24 |
| Zoom Fine: |
0-255 | Zoomadjustment Fine |
16 | 14 | 25 |
| Shutter,strobe: |
0-31 | Shutterclosed |
32-63 | Nofunction (shutter open) |
64-95 | Strobeeffect slow to fast |
96-127 | Nofunction (shutter open) |
128-159 | Pulse-effectin sequences |
160-191 | Nofunction (shutter open) |
192-223 | Randomstrobe effect slow to fast |
224-255 | Nofunction (shutter open) |
17 | 15 | 26 |
| Dimmerintensity: |
0-255 | Intensity0 to 100% |
|
| 27 |
| Fine Dimmer intensity: |
0-255 | Dimmer intensity fine |
18 | 16 | 28 |
| Iris: |
0-191 | Max. diameter toMin.diameter |
192-223 | Pulse closing fast to slow |
224-255 | Pulseopening slow to fast |
|
| 29 |
| Iris Fine: |
0-255 | IrisFine |
19 | 17 | 30 |
| Frost: |
0-191 | Frost0~100% |
192-223 | Pulseopening fast to slow |
224-254 | Pulseclosing slow to fast |
255 | Max.Frost |
20 | 18 | 31 |
| Speed OfCMY & Colour macro Speed: |
0-255 | SpeedMax?>Min |
21 | 19 | 32 |
| SpeedPan/Tilt movement: |
0-225 | Maxto min speed |
226-235 | Blackoutby movement |
236-245 | Blackoutby all wheel changing |
246-255 | Nofunction |
22 | 20 | 33 |
| Colourmacros - CMY and colour wheel: |
0-7 | OFF |
8-15 | Macro1 |
16-23 | Macro2 |
24-31 | Macro3 |
32-39 | Macro4 |
40-47 | Macro5 |
48-55 | Macro6 |
56-63 | Macro7 |
64-71 | Macro8 |
72-79 | Macro9 |
80-87 | Macro10 |
88-95 | Macro11 |
96-103 | Macro12 |
104-111 | Macro13 |
112-119 | Macro14 |
120-127 | Macro15 |
128-135 | Macro16 |
136-143 | Macro17 |
144-151 | Macro18 |
152-159 | Macro19 |
160-167 | Macro20 |
168-175 | Macro21 |
176-183 | Macro22 |
184-191 | Macro23 |
192-199 | Macro24 |
200-207 | Macro25 |
208-215 | Macro26 |
216-223 | Macro27 |
224-231 | Macro28 |
232-239 | Macro29 |
240-247 | Macro30 |
248-255 | RandomCMY |
23 | 21 | 34 |
| Lampon/off, reset, internal programs: |
0-19 |
|
20-29 |
|
30-39 |
|
40-59 | Lampon |
60-79 | Lampswitch off |
80-84 | All motor reset |
85-87 |
|
88-90 |
|
91-93 |
|
94-96 |
|
97-99 |
|
100-119 |
|
120-139 |
|
140-159 |
|
160-179 |
|
180-199 |
|
200-219 |
|
220-239 |
|
240-255 |
|
