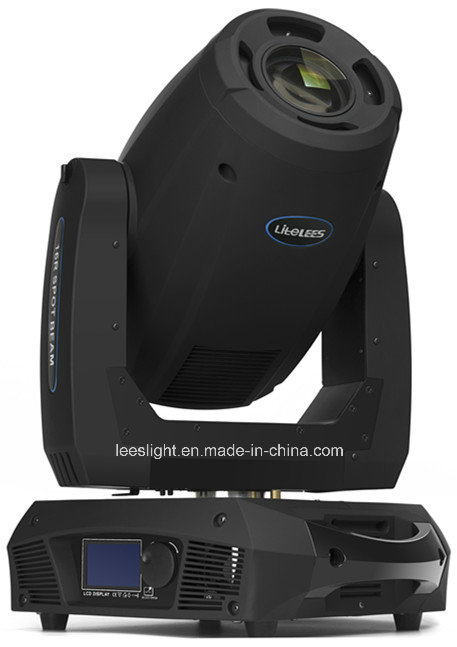

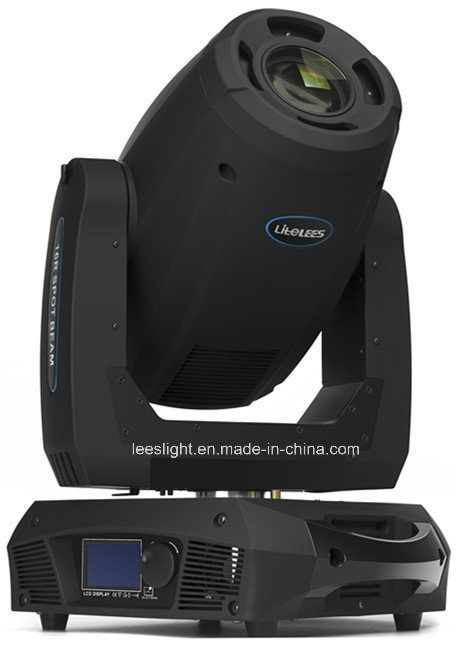

17R SPOT PRO FEATURESBrighter: (New 330W Lamp Source Brings Incomparable Pure Brightness)
Small size but stronger:(Comparable Output Of 1500W Fixtures,but 1/5 Power Consumption and 1/3 size Only 23kg, 41*37*75cm)
Best color system: (CMY color mixing effect and 6 dichroic colors, YL optic system)
Best gobo system:(2 gobo wheels: 14 static gobos and 8 rotating replaceable gobos)
Most Funtional:(Zoom, Iris, Prism, Focus, Frost Filter, Shutter, with full Moving Heads Spot/Wash functions)
TECHNICAL PARAMETERS
POWER SUPPLIEInput power:AC110-240V 50/60 Hz
LAMP SOURCELamp: Yodn MSD R17 350W,1,500hr, 8000k(Optional Osram Siruis HRI 330W)
Power Consumption: 350W
OPTICSLens: Anti-reflective coated lens
YiLong optic system
Output Lux: 10,500lux at 20 meters
COLOR SYSTEMColors: Basic color wheel with 6 dichroic mirrors, plus white, two direction rainbow effect.
CMY Variable Color Mixing for Infinite Color Possibilities
GOBO SYSTEM8 rotating gobos plus open, all gobos can be easily replaceable and gobo indexing
Static gobo wheel with 14 indexing gobos plus open, gobo shaking in different speed
EFFECTS SECTIONPrism and prism rotating , with 16 prism macros
Linear dimmer in precise speed from 0% ~ 100%
Stepless frost, 0%-100% linear change frost
Motorized focus
Iris from 5%~100% with pulse iris effect.
Zoom: 9°~27° linear zoom
Strobe/shutter: High speed shutter, 0-13 Hz or random strobe
CONTROL AND PROGRAMMINGDMX Channels: 3 DMX Modes-21/23/34 Channels DMX
Control: 3-pin&5-pin DMX
Control board with LCD graphic display
BODYRemote controller lamp's switch function, display light and lamp's using time
Structure: heat-proof plastic+module pressing alloy materials
MOVING BODYPan and tilt movement: 8 and 16 bit resolution
For smooth and precise motion
Movement: Pan: 360°/540°optional, Tilt: 270°
Speed of pan/tilt movement adjustable
Scan position memory, auto reposition after unexpected movement
WEIGHT&SIZEWeight: 23kgs
Dimensions: 409*419*541mm

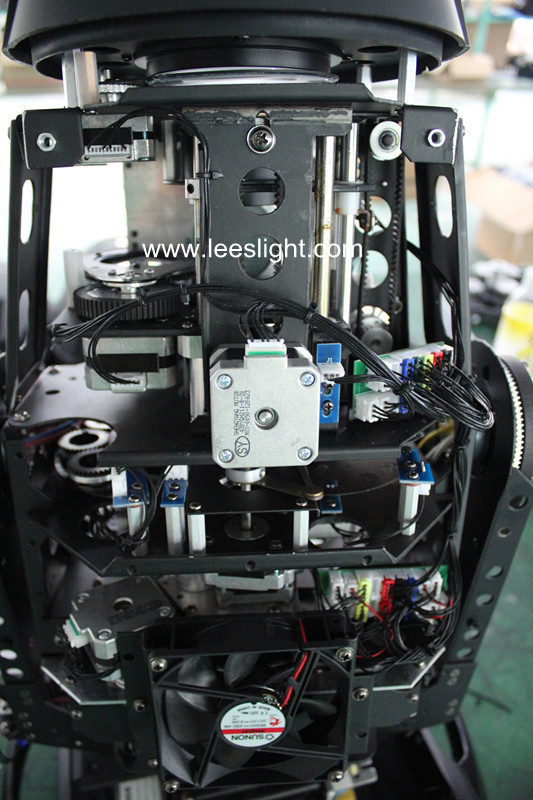

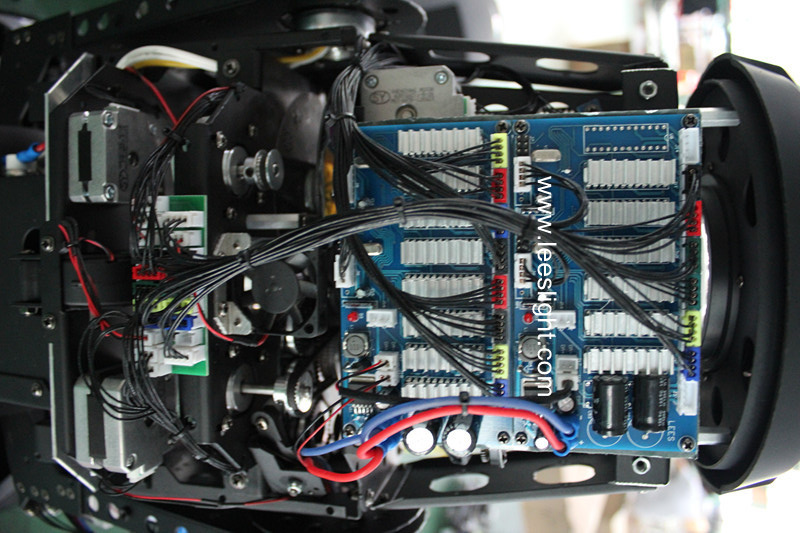

INSIDE DETAILED
ST 23CH | BA 21CH | EX 34CH |
1 | Pan | 1 | Pan | 1 | Pan |
2 | Pan Fine | 2 | Pan Fine |
3 | Tilt | 2 | Tilt | 3 | Tilt |
4 | Tilt Fine | 4 | Tilt Fine |
5 | Color Wheel | 3 | Color Wheel | 5 | Color Wheel |
6 | Color Wheel Fine |
6 | Cyan | 4 | Cyan | 7 | Cyan |
8 | Cyan Fine |
7 | Magenta | 5 | Magenta | 9 | Magenta |
10 | Magenta Fine |
8 | Yellow | 6 | Yellow | 11 | Yellow |
12 | Yellow Fine |
9 | Rotating Gobo | 7 | Rotating Gobo | 13 | Rotating Gobo |
10 | Rotating Gobo Rotation | 8 | Rotating Gobo Rotation | 14 | Rotating gobo index |
15 | Rotating Gobo Fine |
11 | Fixed Gobo | 9 | Fixed Gobo | 16 | Fixed Gobo |
17 | Fixed Gobo Fine |
12 | 3 Facet Prism and Macro | 10 | 3 Facet Prism and Macro | 18 | 3 Facet Prism and Macro |
13 | Rotating Prism | 11 | Rotating Prism | 19 | Rotating Prism |
20 | Rotating Prism Indexing Fine |
14 | Focus | 12 | Focus | 21 | Focus |
22 | Focus Fine |
15 | Zoom | 13 | Zoom | 23 | Zoom |
24 | Zoom Fine |
16 | Shutter | 14 | Shutter | 25 | Shutter |
17 | Dimmer | 15 | Dimmer | 26 | Dimmer |
27 | Dimmer Fine |
18 | Iris | 16 | Iris | 28 | Iris |
29 | Iris Fine |
19 | Frost | 17 | Frost | 30 | Frost |
20 | Speed of CMY | 18 | Speed of CMY | 31 | Speed of CMY |
21 | Speed of Pan/Tilt | 19 | Speed of Pan/Tilt | 32 | Speed of Pan/Tilt |
22 | Color Macro-CMY Color Wheel | 20 | Color Macro-CMY Color Wheel | 33 | Color Macro-CMY Color Wheel |
23 | Lam on&off Reset | 21 | Lam on&off Reset | 34 | Lam on&off Reset |
Guangzhou Lees Electronics Co., Limited professional in stage lighting electronic and equipment, especially in beam moving head lighting. Have a great team of programming-makers, superb technicists, experienced salers, and advanced stuffs.
After one year preparation, we researched one new moving head lighting. 300W beam moving head light. In the beginning of beam light hot year, Many customers all over the world are looking for beam light factory in China. Especially crazy for similar products with Claypaky, Martin, Robe brand.
Continuing the exploration and innovation, Lees launched the 5R Sharpy Beam, 2R Beam, 15R Beam and 15R Spot&beam in succession.
Looking forward to your contact. And Let's talk about beam light together!
