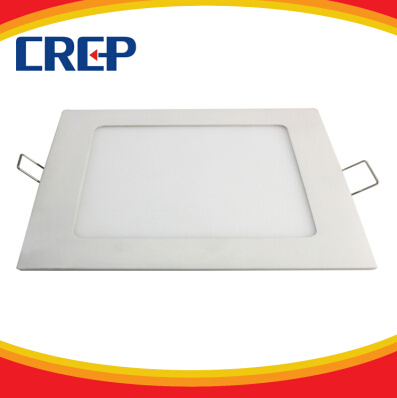

Features for Square LED panel light:
1. Input voltage can be AC100-240V 50/60HZ, Almost matching voltage range all over the world.
2. Adopting external isolated constant current power supply.The constant current precision up to within ±3%, high efficiency, low harmonic(less than 15%), high power factor(more than 0.95)
3. installation easily. the panel use clips to install very easily just same as the led down lights.
Specification:
Part No | Length | LED Qty | Power | Lumens (±8%) |
|
| CPS-MB-X5W-12 | 110mm | 20 | 5W | 380lm |
| CPS-MB-X14W-14 | 160mm | 60 | 15W | 1050lm |
| CPS-MB-X18W-16 | 200mm | 80 | 18W | 1350lm |
| CPS-MB-X15W-22 | 300mm | 110 | 15W | 1200lm |
| CPS-MB-X36W-23 | 600mm | 360 | 36W | 2950lm |
| CPS-MB-X36W-22 | 1200X300mm | 360 | 36W | 2950lm
|
Application Area
1 Hotels
2 Conference/Meeting rooms
3 Factories& Offices
4 Commercial Pureposes
5 Residential /institution buildings
6 Schools , Colleges& Universities
7 Hospitals
Cautions
1.Dimmable is available
2.Swith off the power before replacing lamp
3 Power supply should be adapted to the right voltage before installation .
4.Keep away from direct sunshine and high temperature.
5 If any doubt about installation or use of this products consult competent electrical.
Packing:
| Model No. | Packing Size | Quantity/CTN | N.W. (KG) | G.W. (KG) | 20'GP Container |
| CPS-MB-X5W-12 | 32x 46.5x 22CM | 10pcs | 8 | 10 | 17,600 pcs |
| CPS-MB-X14W-14 | 42x 46.5x 22 CM | 10pcs | 11 | 14 | 11,775 pcs |
| CPS-MB-X18W-16 | 26.5x 46.5x 26.5CM | 10pcs | 15 | 18 | 9,000 pcs |
| CPS-MB-X15W-22 | 40.5x 40.5x 15.5CM | 4pcs | 19 | 22 | 7,250 pcs |
| CPS-MB-X36W-23 | 70.5x 70.5x 15.5CM | 4pcs | 24 | 27 | 6,100 pcs |
| CPS-MB-X36W-22 | 130.5x 40.5x 15.5CM | 4pcs | 30 | 36 | 4,500 pcs |
CREP, a high-tech enterprise & vice-chairman in Shenzhen LED industry association, which is specialized in R & D, production and marketing of LED lighting. We keep working to make breakthrough on LED lighting and till now, achieved more than ten new structure patents and one China invention patent. The main product in application lighting includes LED commercial lighting, LED industrial lighting, LED decorative lighting and LED outdoor lighting.
Our company passed and strictly enforces the requirements of ISO9001 Quality management system to promote all products through CE, RoHS and FCC and other international safety certification. Some products have passed UL, DLC, TUV, SAA, ETL and PSE certification. We have consistently adhered to the operating principle of "market-orientation, quality-assurance, efficiency-improvement, innovation-motivation, resource-integration, service-first and competitive edge-enhancement", continue to improve corporate operations and product innovation to serve customers. We provide solutions for China domestic market, as well as for overseas countries like Europe, America, Japan, Southeast Asia and so on.
We welcome talents with open mind, fully exert their subjective initiative, and pursue continuous innovation and perfection. Gradually, we set up a highly qualitied team with more than 30 members who are junir and senior R&D professional in LED driver, indutial design, optial design, esthetics and industrial design. Meanwhile, introducing the advanced technology, components, production and testing equipment from Jupan, Germany, the United States and other countries to promote the company's productry-leading level.
CREP will always persist "Sincere Cooperation, Continuous Innovation and Future-challenging" to enhance competitive edge, to provide high quality products and good services for all our customers, and to stick to social returns and social responsibility.
