Product Description

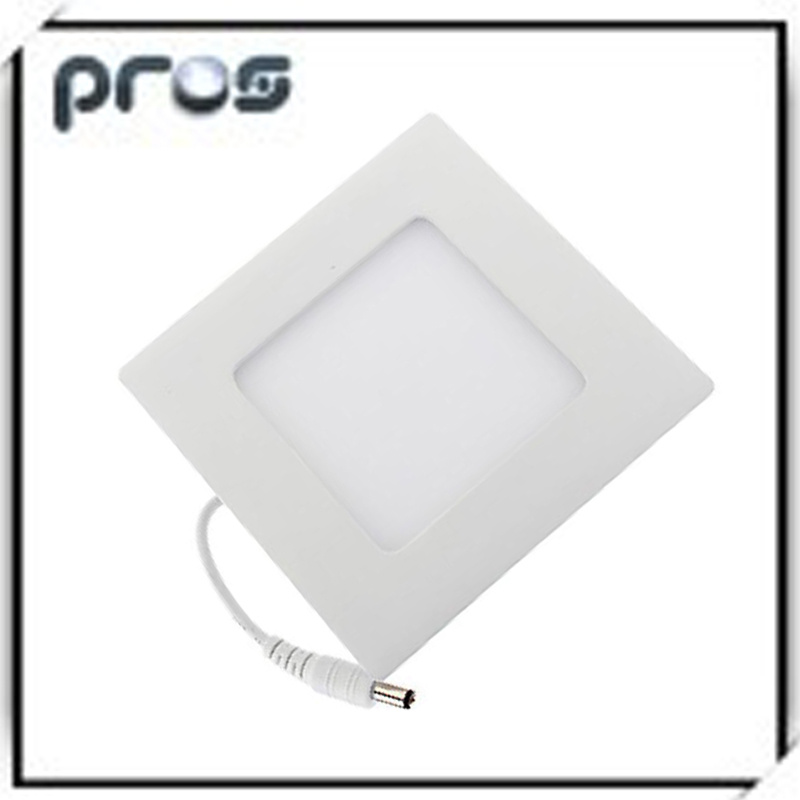

PL-P-S15W ultra-thin LED Panel is a high-performance and cost-effective LED lighting solution. Integrated with patent designed aluminum shell and super bright LED, it delivers high lumens. The products also support 0-10V dimming and are available in recessed and suspended installations. They are widely used in commercial and industrial applications like offices, hospitals, and schools.
Features & Specifications
CONSTRUCTION & MATERIALS
High quality aluminum shell for LED heat releasing and to ensure LED lifetime.
Lighter-weight fixture allows for safe, easy installation.
Imported light diffusion material, mercy and lead free.
OPTICAL SYSTEM
Utilizing high performance light guide panel for excellent uniformity and efficiency.
Super bright 2835SMD LEDs provide higher light efficacy and color consistency.
Color temperature: 3000k, 4000k and 6000K options.
ELECTRICAL SYSTEM
High-efficiency driver and power supply offers robust performance with input power staying constant over the life.

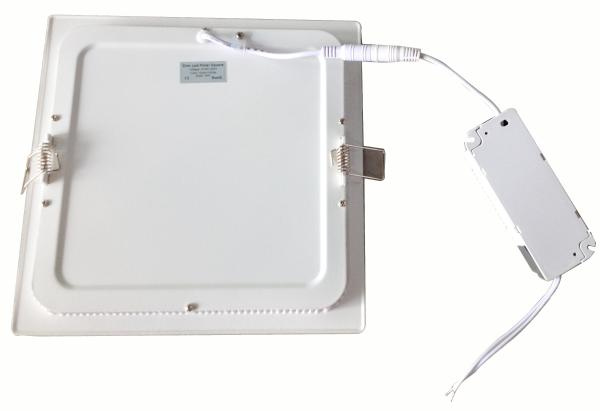

Simple and quick access plate allows for easy wiring and fast installation
CERTIFICATIONS
CE certificated, meet the requirements of CE and RoHS compliant.
WARRANTY
3-year warranty.

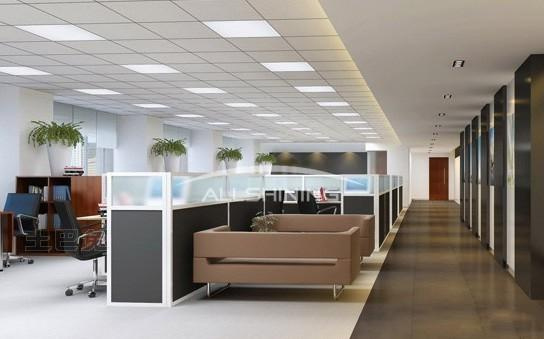

Typical Applications
Installation
Installation instruction:1. This product is limited to indoor use.2. Hole size of the ceiling should be the same as the lamp's cutout size.3. Connect the DC connectors with the lamp and the driver.4. Insert the pinch to the ceiling, make sure it is fastened.
|
Item No. |
LED chip |
Power |
Lumen |
Size A |
Size B |
CRI |
Beam Angle |
Color Temperature |
Input Voltage |
|
PL-P-S3W-M |
15pcs 2835SMD |
3W |
285lm |
90×90mm |
70×70mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S3W-W |
15pcs 2835SMD |
3W |
285lm |
90×90mm |
70×70mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S4W-M |
20pcs 2835SMD |
4W |
380lm |
110×110mm |
90×90mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S4W-W |
20pcs 2835SMD |
4W |
380lm |
110×110mm |
90×90mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S6W-M |
30pcs 2835SMD |
6W |
570lm |
120×120mm |
100×100mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S6W-W |
30pcs 2835SMD |
6W- |
570lm |
120×120mm |
100×100mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S9W-M |
45pcs 2835SMD |
9W |
855lm |
150×150mm |
130×130mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S9W-W |
45pcs 2835SMD |
9W |
855lm |
150×150mm |
130×130mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S12W-M |
60pcs 2835SMD |
12W |
1140lm |
170×170mm |
150×150mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S12W-W |
60pcs 2835SMD |
12W |
1140lm |
170×170mm |
150×150mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S15W-M |
75pcs 2835SMD |
15W |
1425lm |
195×195mm |
175×175mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S15W-W |
75pcs 2835SMD |
15W |
1425lm |
195×195mm |
175×175mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S18W-M |
90pcs 2835SMD |
18W |
1700lm |
225×225mm |
200×200mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S18W-W |
90pcs 2835SMD |
18W |
1700lm |
225×225mm |
200×200mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S20W-M |
100pcs 2835SMD |
20W |
1890lm |
300×300mm |
285×285mm |
>80 |
120° |
2800-7000K |
100-240VAC |
|
PL-P-S20W-W |
100pcs 2835SMD |
20W |
1890lm |
300×300mm |
285×285mm |
>80 |
120° |
2800-7000K |
100-240VAC |
