1) power factor: >0.9
2) life span: 50, 000 hours
3) warranty: 3 years
4) certification: CE, RoHS, c-tick
5) a transformer of input 80~265 AC/ 24V DC output is sold as a whole set.
Characteristic
Item number: Wd-pl-r8-15W
Input voltage: 12~24V DC
LED chip: SMD 3528
Power: 15.0W
Size: Φ 300mm x 16(h)mm
Weight: 0.75kg
Color temperature: 2, 700~3, 500k ( warm white ); 5, 000~7, 000k ( cool white )
Luminous flux: 1200lm
Lighting angle: 150 degree
Life span: >50000 hours
Operating temperature: -20 centigrade~50 centigrade
Storage temperature: -30 centigrade~70 centigrade
Operating humidity: 10%~80%
Storage humidity: 10%~80%
IP grade: IP44
Installation ways: Embedded, suspending, wall hung
Package:
Product size: 300(dia)x 16(h) mm
Box size: 401(l)x 350(w)x 55(h) mm
Box: 1PC
Carton size: 720(l)x 416(w)x 300(h) mm
Carton: 10PCS
Weight: 19kg.
|

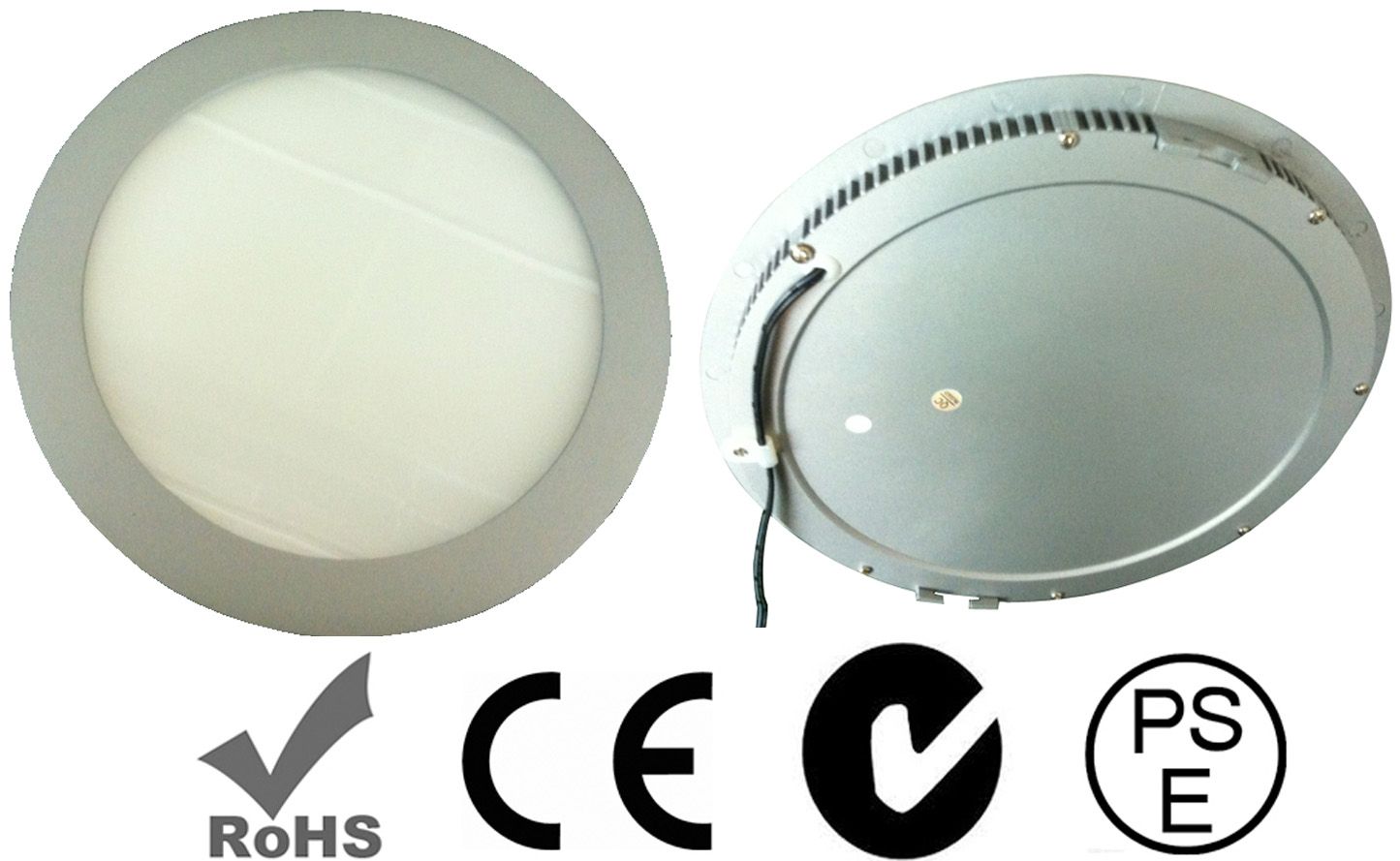

Item Number |
WD-PL-R10-15W |
|
Voltage |
85~145V AC 190~265V AC |
|
Lumens |
WW: 1, 050lm CW: 1, 200lm |
|
Wattage |
15.0W |
|
Dimension |
300L x 300W x 16H mm |
|
CCT |
2500-3500K/ 5500-7000K |
|
Weight |
2, 700g |
|
CRI |
Ra> 80 |
|
Beam Angle |
120 degree |
West Deer Technology Co., Limited is a skilled manufacturer and knowledgeable exporter of indoor and outdoor LED lighting fixtures. We have nearly 3 years of experience in the export business and we have grown into a highly efficient team, serving and providing our customers with an extensive range of high quality lighting fixtures at competitive prices.
West Deer Technology Co., Limited owns advanced production facilities and we have strong product development capabilities. Our corporate aim is "good quality and service and mutually beneficial cooperation". Our indoor line mainly produces LED tube lights, LED spotlights, LED global bulbs, LED ceiling lights, etc. Our outdoor line produces LED floodlights, LED streetlights and LED high bay lights Our lighting sources are always an imported brand name such as CREE, SemiLED, Bridgelux and Lumenmax, etc. All of our products are IEC and EMC standard qualified and CE, Rhos, C-tick FCC certified, some are UL certified as well.
West Deer Technology Co., Limited will work with our customers to establish a mutually beneficial relationship. We provide high quality products and an excellent service for partners from all over the world.
