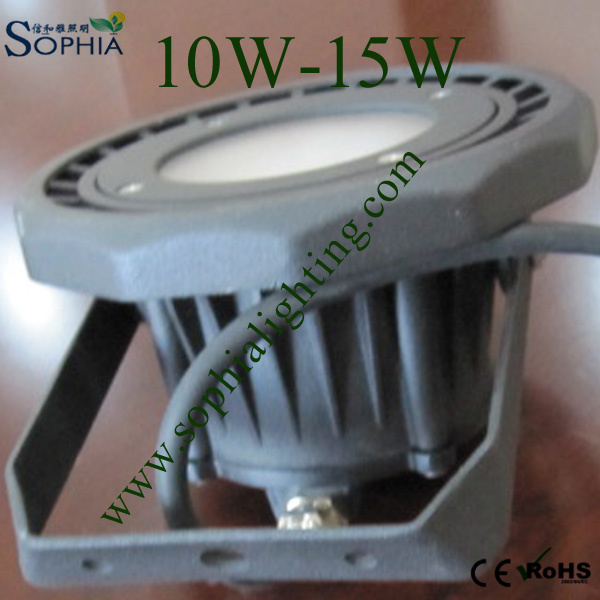

LED Bay Light, High Bay, LED High Bay Light, highbay light;
Item No.: SY150IL-15/ SY150IL-10;
Power consumption(W): 15W/10W;
Luminous flux (Lm): 800-1200Lm;
LED type: High power COB LED, Bridgelux or equivalent, one chip;
Power factor: ≥ 0.9;
Input voltage (V): 100-240AC;
CRI(Ra): ≥ 70 or 80;
Color temperature (K): 3000K 4000K 5000K 6000K;
Average beam angle (50%): 76.5° ;
Material:
High purity aluminum housing, high strength tempered woven glass; High power COB Led, high efficiency LED driver, vacuum coating reflector;
Working temperature (C): -30~45C;
IP rating: IP65;
LED life span (H): 50000H;
Dimension(mm): 150*100( OD*H)mm;
Net weight(kg): 0.71kg/pc;
Packing (pcs/carton): 8PCS/Carton;
Outer carton Size (mm): 770*250*440mm;
Application:
Workshops, factories, warehouses, toll stations, gas stations, supermarkets, exhibition halls, gymnasiums and other places where industrial lighting is needed.
| Item No. | SY150IL-10 | SY150IL-15 |
| Power consumption(W) | 10W | 15W |
| Luminous flux (Lm) | 800Lm | 1200Lm |
| LED type | High power COB LED |
| Power factor | ≥ 0.90 | ≥ 0.90 |
| Input voltage (V) | 100-240AC |
| CRI(Ra) | ≥ 80 |
| Color temperature (K) | 3000K 4000K 5000K 6000K |
| Average beam angle (50%): | 76.5 ° |
| Material | High purity aluminum housing, high strength tempered woven glass; high power COB Led, high efficiency LED driver, vacuum coating reflector. |
| Working temperature ( ) | -30~45 |
| IP rating | IP65 |
| LED life span (H) | 50000H |
| Dimension(mm) | 150*100mm |
| Net weight(kg) | 0.71kg/pc |
| Packing (pcs/carton) | 8PCS/Carton |
| Outer carton Size (mm) | 770*250*440mm |
| Application | Workshops, factories, warehouses, toll stations, gas stations, supermarkets, exhibition halls, gymnasiums and other places where industrial lighting is needed. |
