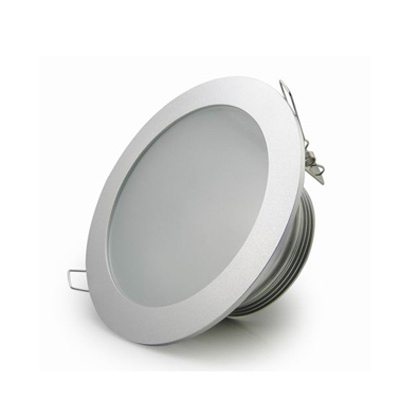

1. Size: Φ190mm*83mm Cutout: Φ170mm.
2. Power consumption: 15W / 38W.
3. Light source: 15PCS Edison / CREE.
4. Beam Angle: 15° ~120° For option.
5. Color Temperature: Warm white(2700-3500K); Neutral white(3800-4800K); Cool white(5500-6500K).
6. Work voltage: 12V DC/AC or 100~240V AC.
7. Certificates: CE & RoHS.
Parameter:
Part NO.
Watt/PCS
LED Type
LED Qty
Power
Lumen
Beam Angle
Work Voltage
DL-15E-1
1W
Edison
15PCS
15W
1350lm
25° / 45° / 60°
100~240V AC
DL-15E-2
1W
CREE
15PCS
15W
1500lm
25° / 45° / 60°
100~240V AC
DL-15E-3
3W
Edison
15PCS
38W
2250lm
25° / 45° / 60°
100~240V AC
DL-15E-4
3W
CREE
15PCS
38W
2700lm
25° / 45° / 60°
100~240V AC
DL-15E-5
1W
Edison
15PCS
15W
1350lm
25° / 45° / 60°
12V DC/AC
DL-15E-6
1W
CREE
15PCS
15W
1500lm
25° / 45° / 60°
12V DC/AC
Feature:
Energy-saving: Environment friendly and only 20% power consumption of halogen lamp and incandescent lamp.
Original encapsulated CREE/Edison light source, and Aluminium Alloy material.
Excellent heat sink: Aluminium and stable circuit design.
High light-efficiency and long life time.
Color Rendering Index: WW≥ 82, CW≥ 75.
Brightness degradation is less than 3‰ Per hour.
Connection: Terminal connection (Install With Power Off) Mounted places: Indoor
Warranty: 3 years.
Application:
Ideal lighting for shopping mall, jewelry shops, meeting room, advertising boards, and the hotel etc
Shenzhen Kingyue technology Co., Ltd, As a high-tech and leading enterprise In the LED illuminating industry, we boasts its own powerful R&D and Producing capacity. Engineers in our R & D departments are experienced Experts of LED illuminating in power-research, structure-design, optics-design And heat-dispersion. Our chief engineers have achieved a number of patents In the field of illumination.
We are a professional manufacturing company of high power LED commercial lighting, covering LED Downlight, LED Light Ball, LED Shading Lamp, LED Grid Lamp, LED Bulb, LED Tube Light, LED Wall Lamp, LED Flood Light, LED Panel Light, LED Wall Washer Light, LED Aluminum Strip Light, Dimmable LED Lamp and more. Compared to traditional incandescent lighting, LED lighting can save up to 90% of energy and operate over 50, 000 hours. Besides, they all share the advantages of high intensity, no UV and IR radiation, high stability and environmentally friendly.
Our products are manufactured according to ISO 9001: 2000-certified management system, coupled with our own strict production standards. Moreover, CE, RoHS and UL approvals guarantee our products to be sold and distributed smoothly both In domestic and international markets. For stable performance, we only use reliable CREE and Edison LEDs. Our housing material-- molded magnesium alloy, a new material used for lamp shell, has good heat dispersion, light weight and hard texture which is unmatched by aluminum alloy or any other materials. Moreover, it also has quite competitive price and much stronger function on radiation.
Adhering to the principle of "Customer First, Honesty and Innovative Pursuit", we will do our utmost to satisfy various requirements from customers all over the world.
