| Prod Model: |
PPL-M330B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage Range: |
Stage/ Theatre/KTV |
| Packing Size: |
760*500*460mm |
| Prism: |
Rotation 8-Face Prism, Bilateral |
| Focus: |
Linear Adjustment |
| Dimmer: |
0-100% Linear Adjustment |
| Beam Angle: |
Parallel Beam Angle 0-3.8° |
| Strobe-: |
Double Lens Strobe (0.5-9times/S |
| Channels: |
16chs |
| Packing Size-: |
760X500X460mm |
| N. /G. W: |
23kgs/26kgs |
| Light Source: |
LED |
| Material: |
Aluminum |
| Control Channel: |
16CH |
| Strobe: |
Electronic Strobe |
| Control Mode: |
Dmx Signal Control |
| IP Rating: |
IP20 |
| Voltage: |
240V |
| Emitting Color: |
14 Color+White |
| Certification: |
CE/RoHS |

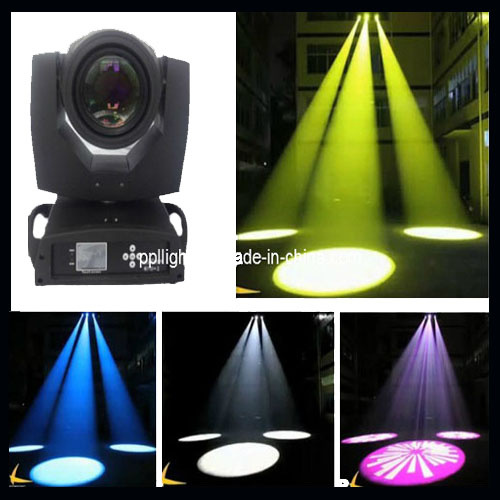

Product Description
Technology Parametric:
Voltage: AC 100-240V, 50-60Hz
Ballast: Electronic ballasts/switch power supply
Lamp: Osram 330W, 1, 500 hr. 8000K(Optional YODN R17 350W)
Color temperature: 8500K
Average Lamp Life: 2000H
Color: 14 color +blank color wheel
Gobo: 17 fixed gobo + blank gobo
Prism: Rotation 8-face prism, Bilateral rotation
Lens: High precision glass optical lens
Wash effect: Adjustable wash efffects angle
Focus: Linear adjustment
Dimmer: 0-100% linear adjustment
Movement: Pan/Tilt: X axis 540° Y axis 250° Automatically accurate postioning
Beam angle: Parallel beam angle 0-3.8°
Strobe: Double lens strobe (0.5-9times/second)
Control mode: Standard DMX 512, Automatic and Master/ slave mode
Channels: 16CHS
Packing size: 760X500X460mm
N. /G. W: 23kgs/26kgs
| CHMODE | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| 16CH | color wheel |
stop/strobe | Dimmer | Stastic Gobo Change | Prism insertion | Prism rotation | effect Movement |
Frost | Focus | Pan |
| 20CH |
| CHMODE | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| 16CH | Pan Fine | Tilt | Tilt Fine | unction (unused) | Reset | Lamp Control |
|
|
|
|
|
| 20CH | Pan-Tilt Time | Color Time | Dimmer prism-forst time | gobo time |
