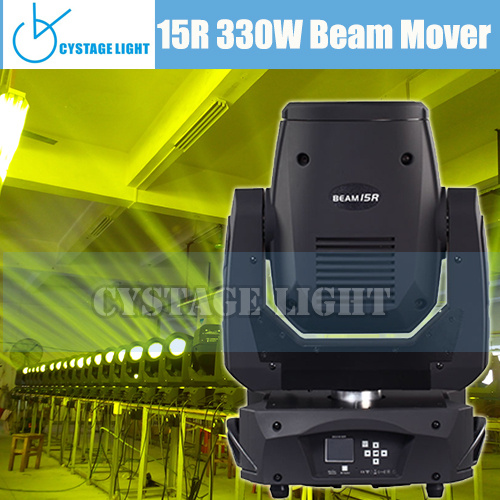

330W Beam 15R Moving Head Stage Light/3 Channel Modes Osram Lamp
Product Parameter
Power Supply: AC 100-240V, 50/60Hz
Power consumption: 500W
Lamp: Philips Platinum 15R/ Osram 15R
DMX CHS: 16/14/22 CHS
Beam Angle: 4.8 degree
Color wheel: 8 dichroic mirrors + open, one direction rainbow effect
Gobo wheel I: 8 interchangeable, rotating gobos + open
Gobo wheel II: 13 static gobos +open with different speed gobo shaking and gobo indexing
Prism: 3/ 8 facet-rotating prism with 16 prism macros
Dimmer intensity from 0%-100%
Focus: Motorized focus
Display: Can be changed 180 degree reverse to fit for different installation posititon
Stobe/shutter: Hight speed shutter, 0-13 Hz or random strobe
Carton Packing: 65*46*42.5 CM
N. W.: 23 KGS
G. W.: 30KGS(1PC/carton), 100 KGS ( 2PCS/Flycase)
Mode /Channel |
Value |
Function |
Stand |
Basic |
Extend |
|
|
CH 1 |
CH 1 |
CH 1 |
0-255 |
Pan Movement 8 bit |
CH 2 |
|
CH 2 |
0-255 |
Pan Fine 16 bit |
CH 3 |
CH 2 |
CH 3 |
0-255 |
Tilt Movement 8 bit |
CH 4 |
|
CH 4 |
0-255 |
Tilt Fine 16 bit |
CH 5 |
CH 3 |
CH 5 |
0-255 |
Color Wheel |
|
|
CH 6 |
0-255 |
color Wheel Fine |
CH 6 |
CH 4 |
CH 7 |
0-255 |
Rotating Gobos,cont.rotation: |
CH 7 |
CH 5 |
CH 8 |
0-255 |
Rotating gobo index,rotation gobo ratation |
|
|
CH 9 |
0-255 |
Rotating gobo indexing Fine |
CH 8 |
CH 6 |
CH 10 |
0-255 |
Fixed Gobos |
|
|
CH 11 |
0-255 |
Fixed gobo indexing Fine |
CH 9 |
CH 7 |
CH 12 |
0-255 |
3/8 facet rotating prism, Prism/ Gobo macros: |
CH 10 |
CH 8 |
CH 13 |
0-255 |
Rotating prism |
|
|
CH 14 |
0-255 |
Rotating Prism indexing Fine |
CH 11 |
CH 9 |
CH 15 |
0-255 |
Focus |
|
|
CH 16 |
0-255 |
Focus Fine |
CH 12 |
CH 10 |
CH 17 |
0-255 |
Shtter, Strobe |
CH 13 |
CH 11 |
CH 18 |
0-255 |
Dimmer intensity |
|
|
CH 19 |
0-255 |
Fine Dimmer intensity |
CH 14 |
CH 12 |
CH 20 |
0-255 |
Frost |
CH 15 |
CH 13 |
CH 21 |
0-255 |
Speed Pan/Tilt movement |
CH 16 |
CH 14 |
CH 22 |
0-255 |
Lamp on/off,reset, internal programs |
