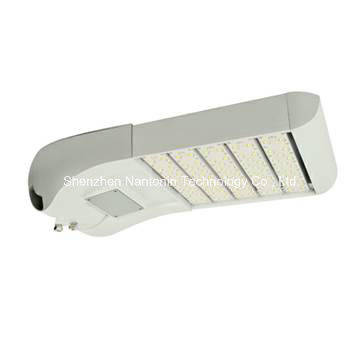

150w radar motion led street lighting
Smart Technology Features: 1. Top of the line, American Made, Cree LED Chips2.Programmed lenses for type I-V light distribution3. UL rated Philips driver(s) in IP66 separate compartment to isolate heat (No Ballasts Required)4. UL rated programmable dimmer to reduce brightness and conserve power
5. Radar motion sensor to increase brightness when dimming is active6. Side view photocell sheltered from direct sun for on/off7. Die cast waterproof IP-66 aluminum alloy casing8. 130 degree adjustable arm to throw horizontal light9. Passive heat dissipation system. No fans to malfunction10. Power factor of 0.9511.Five year warranty standard12. Compatible with RF lighting control systems13. 60,000 hour life equals over 13 years at 12 hours per day without dimming14.120-277V or 277-480V15.German WEGO wire connectors16. Color Rendering Index >75 (older, "traditional" style lot lights are <60)17.Environmentally friendly Dark Sky Compliant18. Replacements available for existing 250W bulbsNTN-MS090T Technical Parameters is showing as following: | Model number: | NTN-MS150T | Wattage: | 150W |
| In put voltage(VAC): | AC120-277V(277-480V) | Led Quantity: | 90PCS |
| Fixture light effect: | 122lm/W | CRI: | Ra>75 |
| SPD: | 10KV | IP rate: | IP66 |
| CCT: | 5028±283K | Delivered flux(lm): | 16000lm |
| LED drive current: | 0.53A | Chip: | CREE XT-E |
| Control system: | DALI/0-10V/Motion sensor/Photocell | Installation way: | Pole, arm branch |
| Connector: | WAGO | Casing material: | Die-cast aluminum casing |
| Size(mm): | 567*340*142 | Life time: | >50000hrs |
| Weight(kg): | 8.0kgs | Warrantee: | 5 years |
NANTONIN is a registered brand for LED lighting products in USA, European countries and China. After 7 years developments, we are growing fast and now we have our own products line. Our main products includes LED pool lamps, LED shop lamps, LED supermarket lamps, LED panels, LED street lamps, , solar LED street lamps, wind turbine solar street lamps, LED tunnel lamps, LED flood lamps, LED high bays ects. Based on our strong eniginners team and desgining team, every year we will design our own patent products and it ensure that we are in the front of the LED technologies.
"Quality first, Service Foremost" is our commitment to our customers. We have well-trained team including full experience technicians, engineers, salesmen and workers. Under the USA energy start and European standards, all our products has passed the CE, RoHS, FCC, some of them also passed UL, DLC TUV ects. All these can ensure us to provide high quality products to your customers.
During these 7 years, we exported our products to more than 120 countries and get some agents for our products. Today we are still looking for agents or distributors for nantonin brand products and hope to built a double win cooperation with our partners.
