Prod Model: |
YML-M150SP |
Markets: |
North America,South America,Mid East,Western Europe |
Power Consumption: 240W: |
High Power LED Unit 120W |
1color Wheel +7 Colors +Open: |
1 Rotation Gobo+7 Changeable Gobos+Open |
Pan 540 Or 630 Degree, Tilt : 270 Degree: |
1 Rotatable 3-Face Prism |
16CH: |
2 Meter to Infinite Electronic Foucs |
1-18times /Second Strobe: |
Dimension:230*300*437mm |
Packing : 410*370*480mm: |
N/G W: 12/15kg |
Control Channel: |
16CH |
IP Rating: |
IP20 |
Certification: |
RoHS |
Light Source: |
120W LED |
Material: |
Fireproof ABS Material |
Emitting Color: |
1 Color Wheel with 7 Colors and Open |
Strobe: |
1-16t/S |
Control Mode: |
DMX, Master- Slave Mode,Sound, Auto |
Voltage: |
AC110-240V |
Product Description

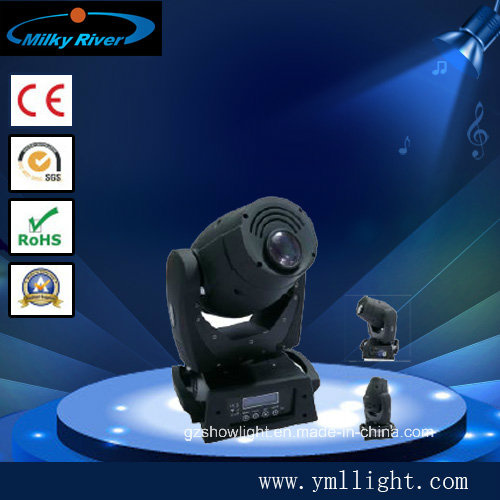

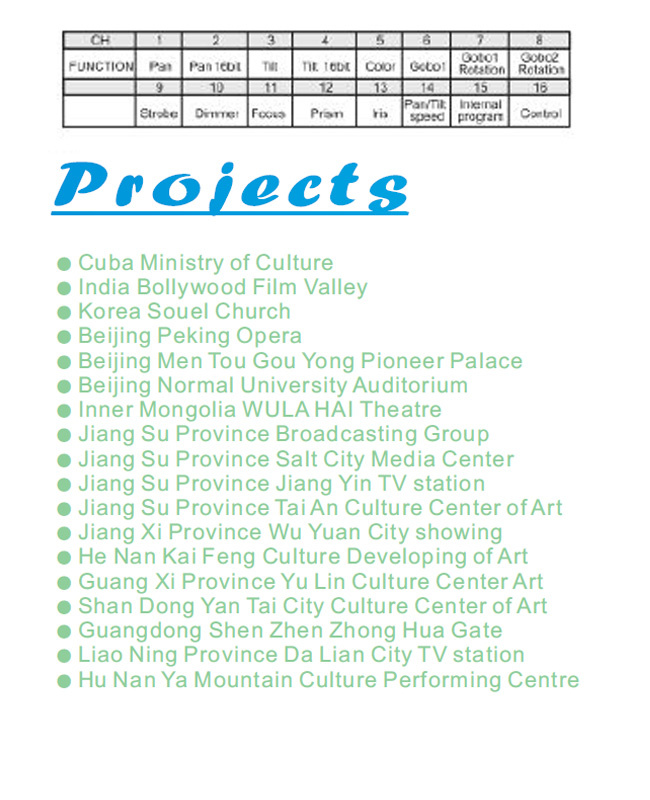

150w/120w/90w LED moving head Spot Light Technical ParameterPower supply:AC100-240v, 50/60HzPower consumption:240wLight source: Luminous high power 120w white LED UNIT(CBM-360-W)Lamp life: 50,000 hours lamp lifespan and low power consumptionColor wheel: 1 color wheel with 7 dichroic colors plug openVariable direction rainbow effect with speed adjustableGobo wheel: One rotating gobo 7 interchangeable gobos +open(3 meter and 4 glass gobos) with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwiseOne static gobo 9 interchangeable gobos+openControl channels: 16DMX channels, other DMX modes available, 3 pin DMX connectors, DMX512, Master-slave and sound activated controllable or auto operation(8 built-in programs)Movement: Pan 540°/630°,tilt 270°,16 bit smooth and precise resolution for PAN/TILT movement
Scan position memory, auto reposition after unexpected movementPrism:1 rotatable 3-face prism with speed adjustable and variable directionFocus: 2 meter to infinite electronic focusIris: Electronic linear IRISDisplay: Blue background LCD displayWorking temperature: 45° max ambient temperatureProtection: IP20, 55Db at 3 dB ratingStrobe:1-18 times/sec high speed electronic strobeShutter: LED shutter with variable speedDimmer:0-100% linearly adjustable(16-bit)Housing: Composite plastic (IP20)Color: BlackDimension:230*300*437mmPacking dimensions:410*370*480mmN/G W:12/15kg ![](/proimages/44f3j00dQZtMsALfgqP/150w-120w-90w-led-moving-head-spot-light.jpg)
Payment:
30% down payment to confirm order, the balance should be pay before dispatch.
Sample testing
Can by DHL, UPS express for tesing
Product guarantee
1 year guarantee
Service
Our professional staff offer 24 hours on line technology and other sevvice, if urgent, please call 0086 18126857039
Guangzhou Show Light Stage Equipment Co., Ltd formed from a lighting factory with 21 years experience, which research and developed the professional stage lighting control, for recent years, develop the LED moving head, profile light, spot light, etc. Our main products are including moving head, LED lighting, stage effect, follow spot light, controller. Widely used in all kinds of performances, theater, TV studio, multi-functional meeting rooms, church, musical hall, parks, etc.
For so many years, we devote to technology innovation, we independently researched and developed IGBT sine wave dimmer in 2005. In 2009, we started to research stage LED lightings in order to solve the LED lighting dimmer curve low end flashing problem. In 2012, we launched 7 mixed color LED stage lighting and have patent on this. We adopt the second light distribution technology on LED lightings.
We have already won appreciation and good comments from the experts and domestic and overseas clients. We will continually make our efforts on this lighting field.
Guangzhou Show Light Stage Equipment Co., Ltd welcome you to join us to grow up together!
