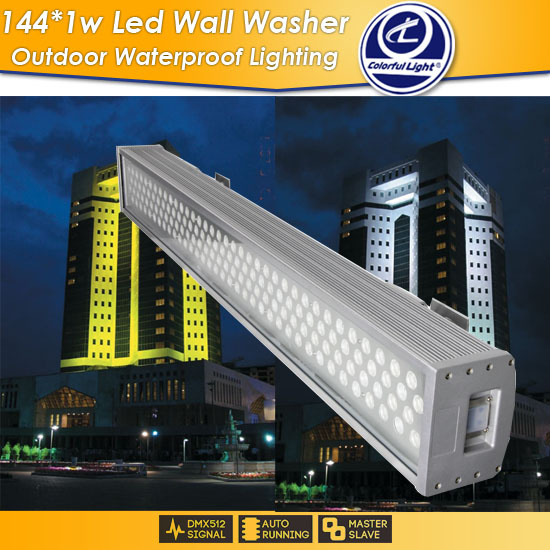

144 X 1W Waterproof LED Wall Washer Light IP65 for Outdoor Lighting
Technical Parameters
Input Voltage: 90V-130V AC 200V-240V AC
Operating Voltage: 12V DC/24V DC(for power LED)
Rotary angle: -90º ~+90º
Operateing Current: 8.0A(Max. )
Power Consumption: 160Watts
Beam Angel: 15º , 25º , 30º
Project distance: 40-45M
Protection Rating: IP65
Material of Shell: Aluminum alloy
Function
Seven color chasing, seven color fading, seven color flashing, master/slave mode
Control mode
Independent mode: Choose the effects that you need by pressing the buttons on the back of light;
DMX mode: International standard DMX512 signal control (3XLR)
Using instruction
F-1. Independent mode, you can adjust the preset functions of light by button on the side cap;
F-2. DMX mode, use DMX console to control the light, referring to the manual of the relevant DMX console for further information.
F-3. Master/slave mode, please choose any one light as the master to attaining auto online function, the operations are as below: Firstly, set the address of master as 001, others are set as slave(address can be any one except 001); Change function of the master (001) light, then all lights will work synchronously;
F-4. Each lights occupies three DMX channels, which is red, green, blue. For example, light with DMX address 001 occupies the channel 1, 2 and 3, light with DMX address 256 occupies the channel256, 257 and 258;
F-5. Do not plug them into power when the product is still in package;
F-6. Don't use anything to cover this lighting;
F-7. Don't use this product in close environment;
F-8. If this product appears to be damaged, do not attempt any operation, please contact your dealer.
F-9. The installation of a product must be completed before the power plug inserts. Please let technicians disassemble the lights for fixing and repairing.
Waterproof treatment
The signal output connector XL-3R of the last fixture (maximum 30 fixtures) of each series must be wrapped with waterproof tape(auto-adhesive, please refer to instruction for operation), thence sealed withΦ 20 thermal shrinking sleeve and blow and shrink it with a hair drier for waterproof purpose.
