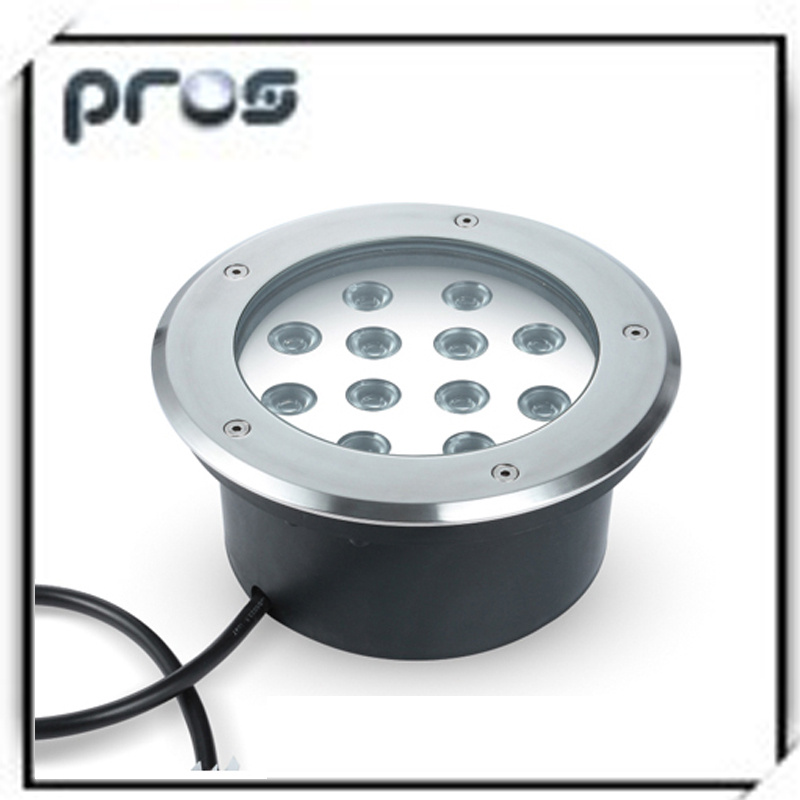

LED underground light 12W / 12W LED inground light
Features:
1. Used super bright LEDs with the chips and made of die-casting aluminum, and tempered class with dust-proof, waterproof, anti-aging, resistance and durable
2. Long life time
3. Friendly environment protection
4. Energy saving: It will save 80% power than halogen lights
5. Low heat Emission and low cost
6. Low voltage 12v, 24VAC and high voltage 85-265VAC all available
Sloution for Common Fault
1. If the light can not light on, pls. Check whether power on or switch on
2. If the light is on or off continuously, pls. Check whether the power supply is loose or not touch well, whether the light's
Connection is well
Note: If all above points still can not make the light work regularly, pls. Contact with professional person.
Instruction
1. Wire connection must be well sealed
2. When constraction, ensure groundwater be well permeate. Don't let the underground light be soak in water. Drain means
We should put blinding with fifty centimeter high and lay sand with twenty to fifty centimeter high. The bigger of the
Blinding, the better. In this way, the drain will be no problem.
3. After constraction, open the front cover and turn on the light half an hour
Typical Applications
Widely used in garden, street, walkway, stairway, side walk, driveway, lawns, yard, park and so on.
Model: |
PL-UG-R1W18 |
Dimension: |
170mm*H95mm |
voltage: |
12V or 24V AC/DC or 85-265V AC |
Power: |
12W |
Lumen: |
1150LM |
LED qty.: |
12 PCS |
Color temperature: |
2700K-3500K ( Warm White ) |
Color temperature: |
4000K-4500K ( Natural White ) |
Color temperature: |
6000K-7000K ( White ) |
Color: |
Red, Green, Blue, Yellow, White, Warm White, RGB |
Beam angle: |
15degree,30degree , 45degree ,60degree |
Protection rank: |
IP67 |
Cover: |
Stainless steel +Tempered glass |
Material: |
Aluminum |
Work efficiency: |
>85% |
Life span: |
50.000hrs |
Ambient temperature: |
-40 ~ +55degree |
Net weight: |
1.5kg |
