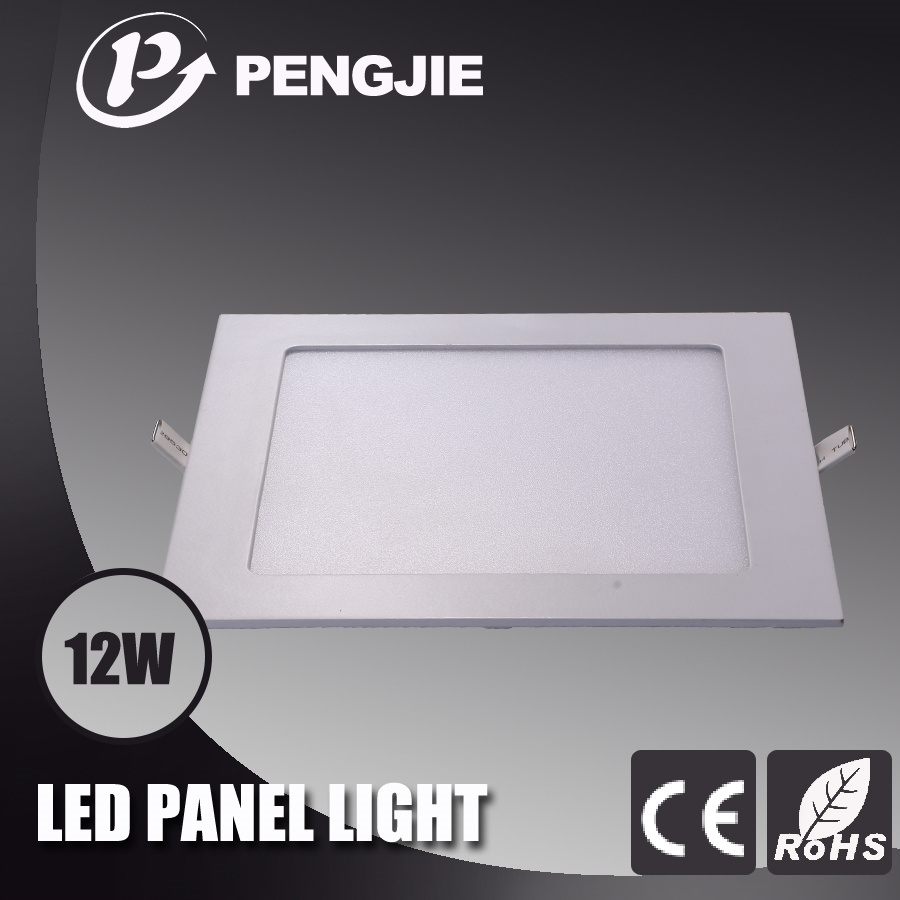

12W LED Ceiling Light for Commercial Building Mall
Production introdution
New style embedded panel light,special design to prevent light leak. Make of supperior aluminum, perfect heat dissipation.
Product features:
Using high lumen SMD light source high intensity aluminum shell,fast heating.
Using good reflectivity super thin, super bright LGP which make the lights more equally.
Low voltage and constant current driver, no glare the light is soft.
Launch in 0.01sec, no flashing, no noise, no radiation. Energy saving,and environmental.
This product can show high brightness, without seeing the lamp itself.
Product accessories:
A.outer ring :GB 12#environmental-friendly aluminum is adopted and is overall die-caSt to take shape, with beautiful structural design.
B. diffuser plate:ps material from Japan Mitsubishi is used. The 1.5mm ultrathin diffuser pate has a light transmittance of up to 92%,and gentle light diffusion can effectively reduce fatigue and create the light environment.
C. Light guider:using Mitsubishi material, thickness 4mm with high precision laser dot, make the light even and comfortable, no dark space, can effectively protect the eyes.
D. reflective sheeting(round and fan-shape):the Hp LCD TV backlight reflective sheeting has superstrong light reflection,with thickness of 0.25mm-0.55mm.
E. Placed cashions:the soft polyurethane foam rubber, sealing, good elastic memory, high temperature resistant, fire retardant, effectively fixed lamp body internal optical components.
F. Rear cover:0.8mm iron back cover, dumb white,fine Elizabeth Barbara ohm two kind of spraying process,spray evenly overall sense.
G. Driver:low-voltage constant-current intelligent IC driver is used, which is of integated desing and make of the imported PC maderial,with dust prevention, compression resistance and high temperature resistance.Ambient temperature for working:-20°C-85°C
Parameter
Item |
Watt | Housing size (mm) |
Opening(mm) |
LED Qty |
| PJ4021 | 3W | 85x85 | 70x70 | SMD2835*15 |
| PJ4023 | 4W
| 105x105 | 90x90 | SMD2835*20 |
| PJ4025 | 6W | 120x120 | 105x105 | SMD2835*30 |
| PJ4027 | 9W | 145x145 | 130x130 | SMD2835*45 |
| PJ4029 | 12W | 174x174 | 160x160 | SMD2835*60 |
| PJ4031 | 15W | 200x200 | 185x185 | SMD2835*75 |
| PJ4033 | 18W | 225x225 | 205x205 | SMD2835*90 |
| PJ4035 | 24W | 300x300 | 280x280 | SMD2835*120 |
| PJ4020 | 3W | Φ85 | Φ70 | SMD2835*15 |
| PJ4022 | 4W
| Φ105 | Φ90 | SMD2835*20 |
| PJ4024 | 6W | Φ120 | Φ105 | SMD2835*30 |
| PJ4026 | 9W | Φ145 | Φ130 | SMD2835*45 |
| PJ4028 | 12W | Φ174 | Φ160 | SMD2835*60 |
| PJ4030 | 15W | Φ200 | Φ185 | SMD2835*75 |
| PJ4032 | 18W | Φ225 | Φ205 | SMD2835*90 |
| PJ4034 | 24W | Φ300 | Φ280 | SMD2835*120 |
Suitable for:
Household, exhibition hall, hotel, shops,jewelry store, museums, stores and recreational space,etc
Installation instructions:
This product is limited to indoor use.
Hole size of the ceiling should be the same as the lamp's cutout size.
Connect the Dcconnectors with the lamp and driver.
Insert the pinch to the ceiling, make sure it is fastened.
ABOUT PENGJIE
Guzhen Pengjie Metal Factory is located at guzhen.it was built in1992 and now it has a factory with 10000 square meters and apecialized in making high quality aluminum die-casting and floodlight fixture.
After more than twenty years of development,it has been in large scale. Our compangy has advanced equipment and strong technical force. We also has a group of high-level and experienced manager,technical backbone staffs and a group of professional staff. We always take"technical innovation, honest service"as our company's aim. Now we get avery high reputation among manufactures and users.
We sincerely hope that we could establish a long friendly business relationship with more campanies at home and abroad.
Remark:
Address:NO.526,Dong'an North Road, Haizhou,Guzhen Town,Zhongshan City,China
TEL:+86 0760-22329461
Web:www.ledpengjie.com
Payment:After the pre-paid 30% deposit for production, 70% balance paid after delivery
Delivery time:Normally 10-15 days
