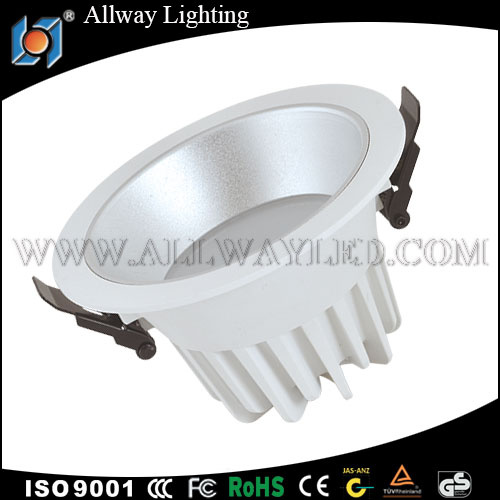

12W home and project smd led down light
Product Description:
Brand: ALLWAY LIGHTING
Model: AW-TD052B-2.5F / 3F / 4F / 5F / 6F / 8F
Power: 7W / 12W /18W /25W /30W /40W
Specifications:
Model NO: AW-TD052D-3F
Input Voltage: AC100~240V/ 50~60Hz
LED Chip: SMD2835
Power Factor: PF≥ 0.9
CCT: 3000K / 6000K
CRI: ≥ 80 (3000K), ≥ 70 (6000K)
Lamp Temperature: ≤ 50º C
Working Temperature: -20º C~+50º C
Material: Die-casting Aluminum + PC
Features:
1. Driver: Adopt series circuit, with function of automatic protection circuit.
2. Input Voltage: 100-240VAC, Wide voltage design, available for whole world use.
3. Energy saving: Only 20% power consumption of fluorescent lamp and
Incandescent lamp.
4. Environment friendly: No UV or IR radiation.
5. Long lifespan: >30.000hours.
6. Maintenance Free, Easy for installation: Ceiling or wall surface-mounted.
7. Quality: CE, ROHS, FCC, SAA.
| Specifications |
| Item Number | AW-TD052B-3F |
| Diameter | Φ110 x 68 mm |
| Hole Size | Φ90 mm |
| Power | 12W |
| Led Quantity | 20 X 0.5W |
| Flu | 840 LM |
| Packing Quantity | 48 pcs/carton |
| Light source | SMD 2835 |
| Voltage | AC100-240V 50/60HZ |
| Color Temperature | 3000K / 6000K |
|
| Lamp temperature | ≤50°C |
| PFC | ≥0.9 |
| CRI | ≥80 (3000K), ≥70 (6000K), |
| Material | Aluminum + PC |
Allway Lighting is professinal LED lighting manufacturing company that is founded in 2006 and locates in Zhongshan City.
Our main product is LED downlight, panel light, ceiling light, track light and bulb.
Our factory covers 5000 square meters and runs around 100 employees.
We have a skilled team for production, qualified R&D team for new product developing and an experienced team for sales service.
There are a wide range of qualified and novel downlights available, which 20 of them owns structure patents. Most of our products are qualified with GS/SAA/FC/CE/RoHS/CCC standard and our company is running ISO9001 system. What's more, we are able to design and develop new product for you, free of charge.
We dedicate to LED lighting developing and manufacturing.
You're welcome to contact us for continuous cooperate.
