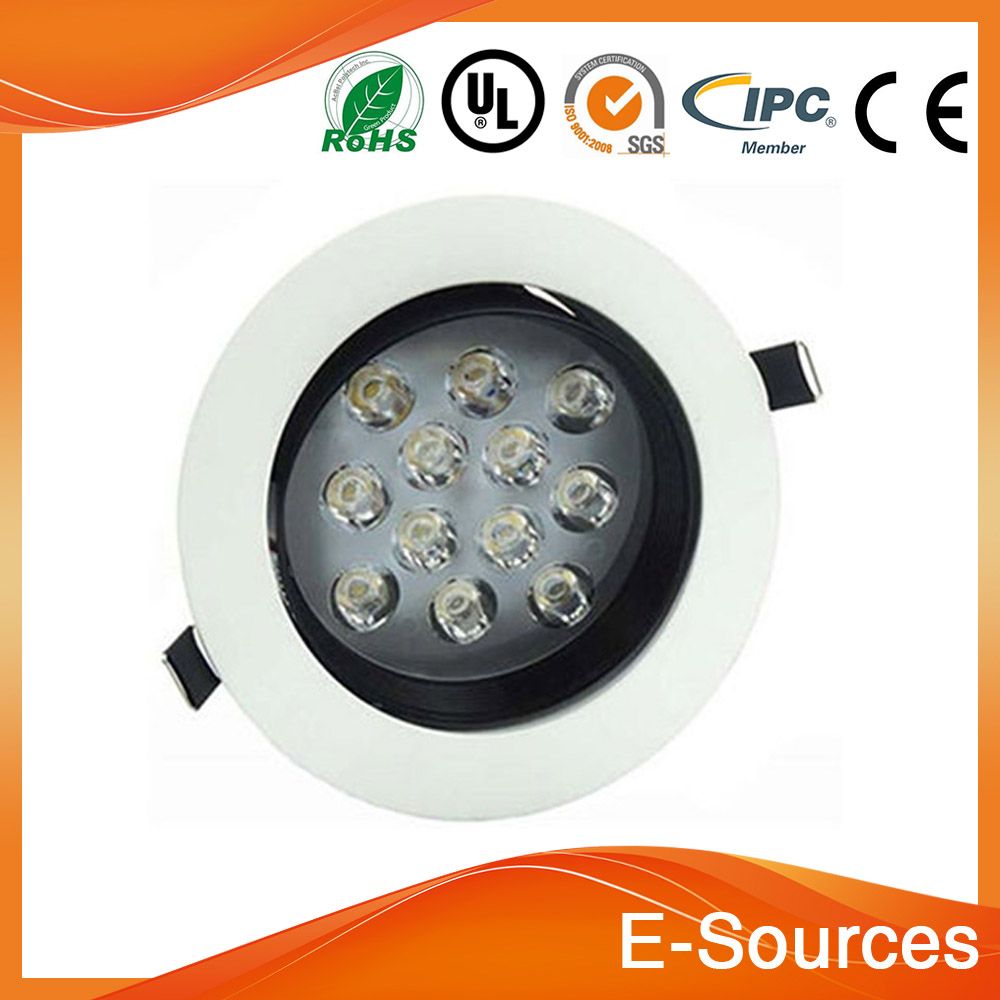

Specifications:
o Watt: 12W
o Luminous flux: 1,080-1,200lm
o Input voltages: 85-265V AC
o Power efficiency: 87%
o Light source: San'an (Epistar/Bridgelux for option)
o CRI: ≥70Ra
o Beam angle: 15/25/60°
o CCT: 3,200-6,500K
o Dimmable: optional
o Size: Φ145*80mm
o Cutting hole size: Φ125mm
o Body color: white + black
o Operating temperatures: -20~60ºC
o Lifespan: 50,000 hours
o Warranty: 2 years
o Certifications (optional): CE, RoHS, SAA
o LM-80; meeting the standards of ENERGY STAR®
· Features:
o Light source of high-brightness, high-luminous efficacy, good color consistency, high-CRI optional, 3030 replaceable, better stability
o High-quality aluminum alloy, vacuum paint-spraying, overall thermal design, good dissipation
o Lens of high-luminousness, beam angle XPE(3030) 15/25/60° optional
o Constant current power supply, branded components, outstanding design and processing technology, ensure stable long-time work
· Series products:
| Model: | Watt | Flux | Size | Cut-out | Power efficiency |
| VDC-14-G0603 | 3W | 270-300lm | Φ90*60mm | Φ78mm | 81% |
| VDC-14-G0605 | 5W | 450-500lm | Φ105*85mm | Φ95mm | 81% |
| VDC-14-G0607 | 7W | 630-700lm | Φ105*85mm | Φ95mm | 83% |
| VDC-14-G0609 | 9W | 810-900lm | Φ145*80mm | Φ125mm | 87% |
| VDC-14-G0615 | 15W | 1350-1500lm | Φ168*100mm | Φ145mm | 93% |
| VDC-14-G0618 | 18W | 1620-1800lm | Φ168*100mm | Φ145mm | 93% |
FAQ
Q1:Do you provide material sourcing service?
§.We have our own industry chain. Our material sources are stable, high quality and low prices.
Q2:What is your payment term ?
§.T/T or L/C at sight.and It ' s negotiable
Q3:What is you trade term?
§.FOB Guangzhou/Shenzhen port.
Q4:Do your pay for import taxes and duty?
§.No, they are not included. Clients should pay for them.
Q5:How long do you need to make samples? And how about the lead time?
§.About 15-20 days for samples, and about 45 days bulk production after get your payment
Q6:How do you make sure product quality?

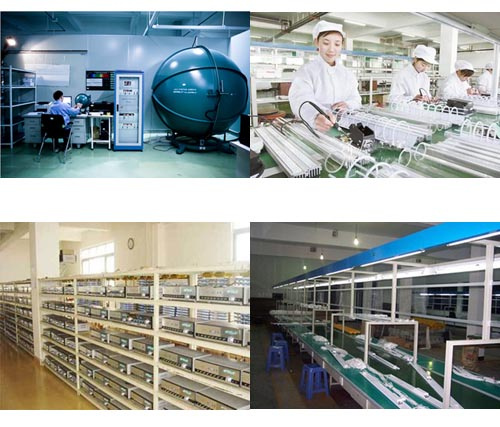

§.We have 3D SPI, AOI,and we do ICT, Electronic test, Visual inspection, Functional test.
Q7:What about your shipping method?
§.We suggest you using our DHL, UPS, FedEx, TNT forwarder. By EMS (Usually for Russia Clients), price is high.
Q8:Can we visit your factory?
§.Yes, welcome to visit us any time.
