1) Color Temperature: Warm White: 2, 700 ~3, 500K, Cool White: 5, 000~6, 500K.
2) Beam Angle: 15, 30, 45, 60, 90 and 120 degrees.
3) CRI: Ra> 80
4) Power Factor: >0.9.
5) Dimmability: Compatible with TRIAC dimmers on market such as Lutron, Leviton, Legrand, Osram, and GE etc. Dimming range is from 5~100% and very stable.
6) For each item, there is a lower price version with non dimmable
7) Life Span: 50, 000 hours.
8) Warranty: 3 years.
9) Certification: CE, RoHS, C-Tick
10) Housing Color Option: Natural aluminum and anodized white or black.
Application
Desktop, Aisle, showcase, residential lighting for bedroom, studyroom, living room etc. Commercial lighting for office, hotel lobby, shop, exhibition room etc.
Product Highlight
* Outstanding Performance
Effiecent > 80%, PF > 0.8, life span > 50, 000 hours.
High luminant efficiency by using super bright LED.
Energy-saving and environment-friendly.
Low power consumption.
Specification

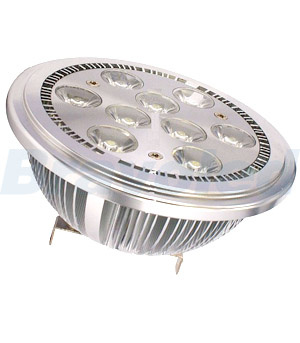

ITEM NUMBER: BL-AR111-9X1W/2W
HOUSING MATERIAL: ALUMINIUM
BULB TYPE: 9*1W/2W AR111 LED SPOTLIGHT
APPLICABLE DIMMERS: TRIAC DIMMER FOR LUTRON, LEVITON, LEGRAND, ORSAM, CE etc.
LED TYPE: CREE / SemiLED
INPUT VOLTAGE: 12-24V AC/DC
INPUT POWER: 12.8W(9X1W) 15.6W(9X2W)
OUTPUT POWER10.2W (9X1W) 12.5W(9X2W)
LUMENS: Semi LED
9X1W WW: 525lm, CW: 700lm
9X2W WW: 610lm, CW: 775llm
SIZE: Φ 111X 55mm
BEAM ANGLE: 8/15/30/45 /60/90/120 DEGREES
COLOR RANGE: 2700K~6500K
REFLECTOR EFFICIENCY: 90%
OUTPUT CURRENT: 300mA
COLOR TEMPERATURE: WW: 2700K-3500K CW: 5000-6500K,
LIFE SPAN: >50, 000 HOURS
TEMPERATURE: -40° C ~ +70° C
LED WORKING TEMPERATURE: <62° C
CRI: Ra> 75 HOUSING MATERIAL: ALUMINIUM
NO UV OR IR RADIATION
Package
Carton Dimension 53*53*16cm, Pack Size: 25 PCS, Gross Weight: 400 g
|
Item Number |
BL-AR111-9SEMI |
|
Voltage |
12~24V AC/DC |
|
Lumens |
WW: 610lm
CW: 775lm |
|
Dimmable |
YES |
|
Dimension |
111(Dia) x 55mm |
|
Available Base |
AR111 |
|
Weight |
450g |
|
LED Type/ Qty |
SEMI/ 9pcs |
|
Power Consumption |
12.6W |
