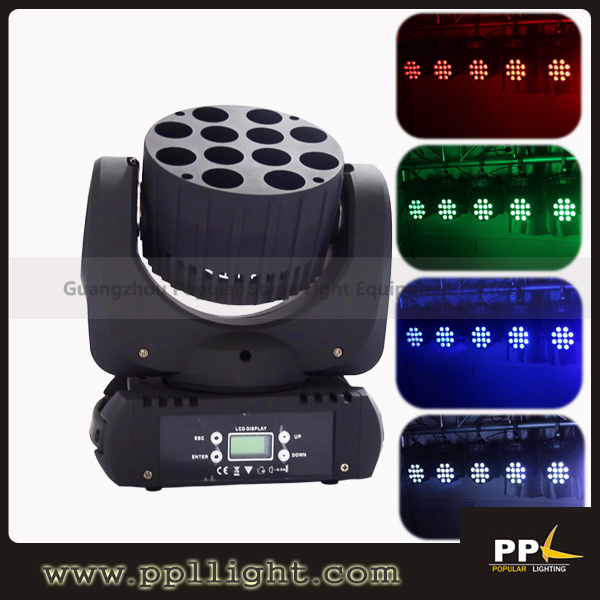

Feature:
1. 12pcs CREE RGBW 4in1 LEDs
2. High brightness and lower power consumption, 860Lux at 7m
3. 8degree beam angle, RGBW Color infinite mixing
4. Small size and lightweight
Technical Parameter :
Voltage: 90-245V, 50~60Hz
Power Consumption: 120W
12PCS CREE 10W 4-IN-1 LEDs (R,G,B,W )
60,000 hours life span for LEDs and low power consumption
Intelligent temperature sensor for LEDs(over heat protection)
High efficiency 8 degree optic lens
Color range with 16.7 millions additive RGBW colors
High light output as 860LUX@ 7M at full
0-100% smooth linear dimmer with flicker free
20t/s strobe effect with variable speed
Pre-programmed random strobe and pulse effects
15CH DMX channels
Built-in programs with macro effects
DMX512, master-slave and sound activated controllable or auto operation
High definition blue TFT LCD display
Quiet, smooth and fast PAN/TILT movement
Low noise and efficient FAN cooling system
540° PAN and 250° TILT movement
Scan position memory, auto reposition after unexpected movement
Compact size with only 4.9KG body and 310mm in height
IEC power connector
45ºC max ambient temperature
IP20 protection rating
3-Pin XLR DMX input/output
Dimensions: 152(L)*265(W)*310(H)mm
Packing Dimensions:260(L)*320(W)*335(H)mm
Net Weight: 5.5kg
Gross Weight: 7.5kg
DMX Channel:
| CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| FUNCTION 15 | Pan | Tilt | Pan Fine | Tilt Fine | Dimmer | Strobe Mode | Red | Green | Blue | White | Colors
Choice | Macros | Macros
Speed | PAN/TILT
Motor Speed | Reset &
sound control
|
