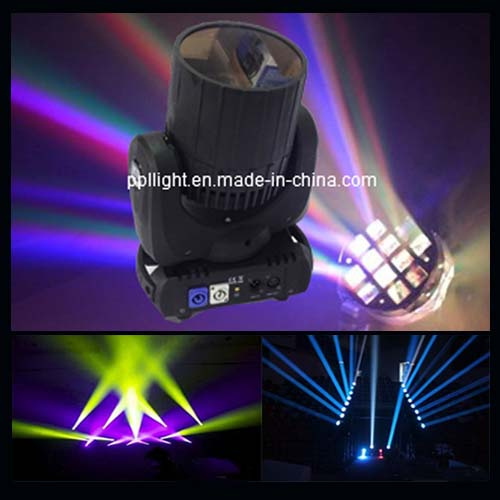

technical parameter:
output voltage:AC100-240H 50/60Hz
power consumption:145w
the light source: 12*10w 4in1 Cree LED
Channel:18/29DMX channel
X axis and Y axis 540/200 controllable speed
optical angle :8 degree
electronic smooth light :0-100%
electronic stroboscopic pulse and random effect
high efficiency ,low energy consumption
a variety of color, strong powerful beam effect fast and precise movement
net/gross weight:5.5/5.6kg
packing size:32*25*45.5mm
| No. | Function | Specification |
| CH 1 | Pan Rotation | From 0-255, press "up" is forward rotation , press "down" is reversal rotation |
| CH 2 | Tilt Rotation | From 0-255, press "up" is forward rotation , press "down" is reversal rotation |
| CH 3 | Pan Fine | From 0-255, press "up" is forward rotation , press "down" is reversal rotation |
| CH 4 | Tilt Fine | From 0-255, press "up" is forward rotation , press "down" is reversal rotation |
| CH 5 | Pan/TiltMotor Movement Speed | From 0-255, press "up" means lower speed,0 is the fastest Speed . |
| CH 6 | General Dimming | R\G\B\W general dimming , 100% linear dimming , from dark to bright |
| CH 7 | General Strobe | R\G\B\W general strobe, from slow to fast |
| CH 8 | R Dimming | R linear dimming, from dark to bright |
| CH 9 | G Dimming | G linear dimming, from dark to bright |
| CH 10 | B Dimming | B linear dimming, from dark to bright |
| CH 11 | W Dimming | W linear dimming, from dark to bright |
| CH 12 | Color Selection | 0-255 color change (0-20:R+G++;21-40:R+B++;41-60:G+R++;61-80:G+B++;81-100:B+G++;101-120:R+G+B++;121-140:R+B+G++;141-160:B+G+R++;161-200:R+B+G++;201-220:B+G+R++;221-255:R+B+G++) |
| CH 13 | 4pcs of sections gobo selection | 4 sections could be used at the same time(0-60);first section is from(61-120);second section is from(121-160);third section is from ( 161-200 ) , forth section is from (201-255) |
| CH 14 | Built-in Program | The first 13CH could be used from 0-75 , adding 10 in every time , it matches a built-in-program |
| CH 15 | Built-in Program Speed | 0-255press " up " , the speed becomes slower , 0 is with fastest speed . |
| CH 16 | Effect Gobo Position | (0-127)Effect gobo position setting;(128-255)Effect gobo rotating by right & left side speed from slow to fast, 128 is the slowest , 255 is the fastest |
| CH 17 | X/Y motor reversing function | (0-64)no function ;(65-128)X reversing rotation;(129-192)Y reversing rotation;(193-255)X/Y reversing rotation. |
| CH 18 | Reset , auto-running & sound-activation | DMX value does not change in 10s will executive program;(0-64)no function;(65-128)auto-running;(129-192)Sound-activation ;(193-255)Reset .
|
