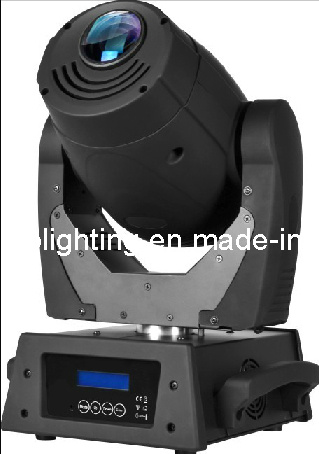

120W LED Moving Head Spot Light
Input Voltage: AC90-260V 50/60Hz
LED Quantities: 1X120W Luminus White LED
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 15/13/13 DMX Channels
Power Consumption: 170W
Dimensions: 291(D)X301(W)X471(H)mm
Packing Dimensions: 490(D)X370(W)X375(H)mm
Net Weight: 12kg
Gross Weight: 15kg
Luminus 120W white LED with equal output to 575W discharge
765FC/8230LUX (2.5m), 185FC/1990LUX (5m), 82FC/881LUX(7.5m)
50, 000 hours lifespan and low power consumption
16 bit smooth and precise resolution for PAN/TILT movement
540° /630° Pan and 270° Tilt movement
Scan position memory, auto reposition after unexpected movement
1 color wheel with 7 dichroic colors plus open
Variable direction rainbow effect with speed adjustable
1 rotatable gobo wheel with 7 rotatable interchangeablegobos plus open (2 metal gobos and 5 glass gobos) with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise Gobo indexing capability
1 static gobo wheel with 9 gobos plus open
Gobo size 27.9mm (external dimensions) / 23mm (inner dimensions)
1 rotatable 3-facet prism with speed adjustable and variable direction
2 meter to infinite electric focus
15° Projection beam angle
Improved optics and flat beam field
Electronic linear IRIS
0-100% linear dimmer with 1-18 times/sec high speed electronic strobe
LED shutter with variable speed
3 DMX modes, 16 bit (15CH), 8 bit(13CH), design mode (13CH)
DMX512, master-slave and sound activated controllable or auto operation (8 built-in programs)
Blue background LCD display
Powercon IN/OUT
45° C max ambient temperature
IP20 protection rating
55dB at 3' dB rating
3-pin DMX connectors
Guangzhou Californiapro-Lighting Equipment Co., Ltd. situated in Baiyun District Guangzhou City. We are a professional Stage lighting manufacturer that covers 2000m2 and owns High-Tech instrument and modernizing equipment, including more than 100 employees, we possess a strong and outstanding research and development team, they continually create many miracle products.
Our service aim is launching High-Tech and High-Quality products persistently, glorify the world more colorful and brightness. We wish CPL is the place where you can put your idea into practice, and draw our Blue picture together.
