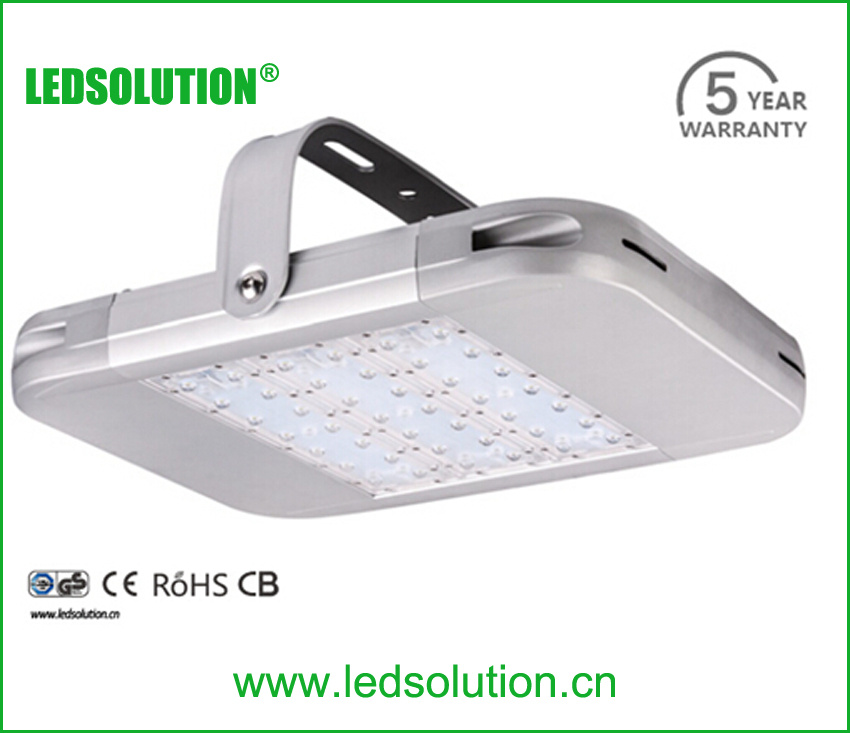

120W High Power Outdoor LED High Bay Light

120W High Power Outdoor LED High Bay Light
Price: US $ 205-229/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Paypal,Western Union
120W high waterproof outdoor led high bay light


Specifications of 120W led high bay light



Electrical Specifications

Model No.

LS-HL120P

Nominal Wattage

120W

Nominal Voltage

AC 100-240V/277V

50/60HZ

Maximum Current

AC 0.41A-120V,0.21A-240V,0.18A-277V

Optimal Operating Temperature

-40ºC to +50ºC

Power Factor(PF)

>0.9

Driver Efficiency

>90%





Photometric Specifications

Lumen Output

11400lm

Photometric Type

60°/90°/110°

CRI

> 70 CRI



CCT







Mechanical Specifications

Ratings

IP66, IK10

Lumen Maintenance

> 60,000 hours -L70(9K), @25 ºC (77 ºF)

Heat Radiator

Anodized Aluminum

Lens

PC

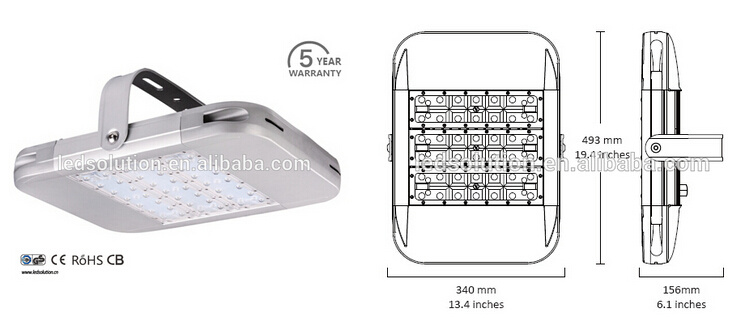

Fixture Dimension

439 x340 x156 mm
19.4 x13.4 x6.1inches

Fixture Weight

5.2 kg /11.5 lbs







Applications of 120W led high bay light

Workshop, Warehouse
Gas Station
Area Lighting
Parking Garage

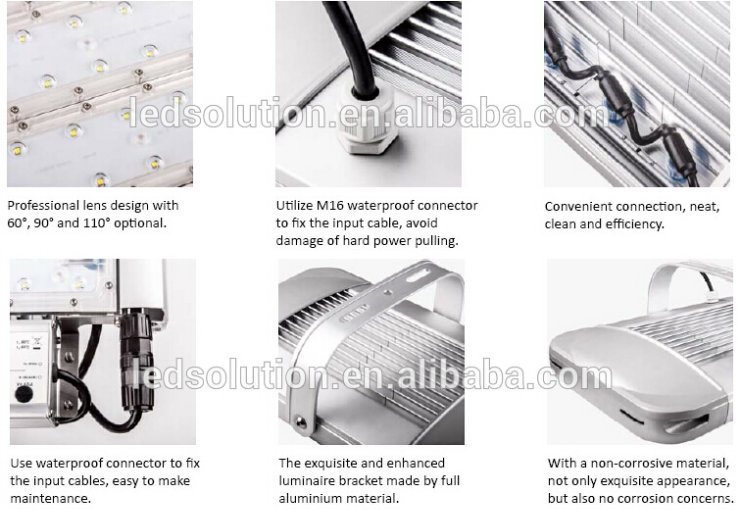

Product Benefits of 120W led high bay light


PHILIPS LUMILEDS LED LUMINOUS SOURCE

The LEDSOLUTION P-Series LED High Bay Lights are utilizing PHILIPS LUXEON T LED luminous source, providing excellent lumen output - up to 95 LPW, long-lasting stability and splendid sight.





Each LUXEON T owns eletrostatic protection component, maximally avoid the damage of electrostatic.




MEAN WELL  LED DRIVER

Full Range of LEDSOLUTION P-Series LED High Bay Lights are Utilizing MEANWELL HLG Series high-end driver, optimal operation stability, lifespan and performance.

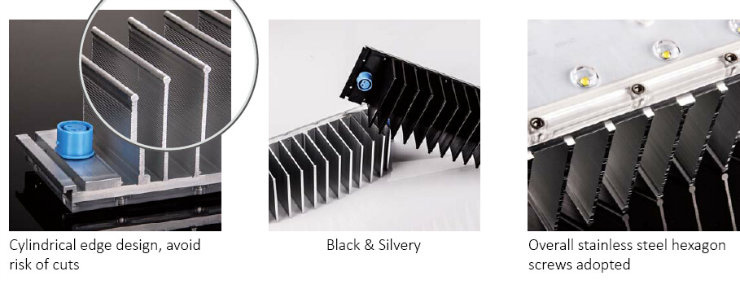

LEDSOLUTION 3 GENERATION LED MODULE

Exquisite design with powerful thermal output, with more reliable waterproof performance.



XTREME LUMINAIRE DESIGN

Equipped with excep onal LEDSOLUTION 3 generation LED module, the P-Series LED HIgh Bay Lights give best luminous output, stability and extra long life. P-Series LED High Bay Lights are intended to build the most cost-performance luminaires ever.



LEDSOLUTION completed the R&D independently, and reserve all related patents for P-Series LED High Bay Lights.



Easy assemble/disassemble, neat wiring & connection, up to 95 LPW luminous efficiency, IP66 and IK10 Rated, 90%+ driver efficiency, over than 100,000 hours opera on life and 5 years warranty.


Detailed Features of 120W led high bay light


Package


Packing Type
1unit(s) /ctn.


Packing Dimension

485 x365 x160 mm

19.1 x14.4 x6.3 inches


Packing Weight
6.1 kg /13..4 lbs

Prod Model: LS-HL120P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Light Source: Philips
Input Voltage(V): AC100-240V/277V
Lamp Luminous Flux(Lm): 11400
Lamp Luminous Efficiency(Lm/W): 95
CRI (Ra>): 75
Cct: 4000k, 5000k, 5700k
Driver: Meanwell Hlg
Rating: IP66,Ik10
Maximum Current: AC 0.41A-120V, 0.21A-240V, 0.18A-277V
Heat Radiator: Anodized Aluminum
Color Temperature: Cool White
Lamp Body Material: Aluminum
IP Rating: IP66
Certification: UL
Color: Silvery
Usage: Warehouse, Factory, Garage, Tunnel etc.
Beam Angle: 60, 90, 110
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
