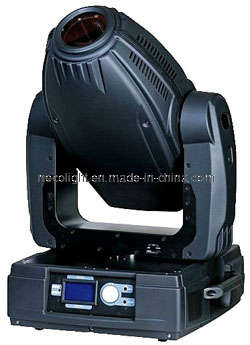

1200W Moving Head/1200W moving head spot/Moving Head 1200/
1200W Spot light/1200W Moving Head Spot light
Lamp: 1200W short arc discharge
Base: GY-22
Approved model: Philips MSR 1200 SA
Ballast: Electronic Ballast
Electrical Specification
Wiring options: 208/230/250V, 50Hz; 208/230V, 60Hz
Power consumption: 1500W at 220V/50Hz
Mechanical Specification
Height: 880 mm (head in horizontal position)
Width: 550 mm
Depth: 640 mm
Net weight: 41kg
Gross weight: 82 kg ( with flycase
Thermal
Maximum ambient temperature (Ta): 40° C (104° )
Maximum surface temperature: 135° C (275° F)
Gobos
Outside diameter: 37, 5 +0/-0, 25mm
Image diameter: 31, 5mm
Thickness: 1, 1mm up to 6mm in rotating slots
Material: High-temeperature Borofloat glass
Prisms and Effects
Outside diameter: 47 +0/-0, 3 mm
Thickness: Up to 5mm in rotating slots (up to 8mm in the center)
Control and Programming
Protocol: USITT DMX-512
Control channels: 24 or 32
Display: Blue/white LCD graphic
Pan/Tilt resolution: 8- or 16-bit
Gobo indexing: 8- or 16-bit
Prism indexing: 8- or 16-bit
Data in/out: Locking 3-pin & 5-pin XLR
Electromechanical Effects
Cyan: 0 - 100%
Magenta: 0 - 100%
Yellow: 0 - 100%
CTO: 0 - 100%
Colour wheel: 6 replaceable 'SLOT&LOCK' colours + open Gobo wheel 1: 6 rotating, indexable, replaceable 'SLOT&LOCK' dichroic glass gobos + open
Gobo wheel 2: 6 rotating, indexable, replaceable 'SLOT&LOCK' dichroic glass gobos + open
Gobo dimension: Gobo size: 37.3mm picture size: 31.5mm
Iris: Motorized, stepless
Effect wheel: 4 rotating, indexable, replaceable 'SLOT&LOCK' prisms and effects + open
Frost effect: Separate, variable
Dimmer/Shutter: Full range dimming and variable strobo effect
Focus: 2m - infinity
Zoom: 13° - 42°
Pan: 530°
Tilt: 280°
Rigging
Mounting points: 8 pairs of 1/4-turn locks
Fixation option: Pan/Tilt-lock mechanism
Guangzhou NECO stage lighting equipment factory is a professional stage lighting manufactory in China. Factory has been dedicated to R&D intelligent stage lighting and LED products, Main products: moving head, LED moving head spot light, LED beam lights, LED PAR cans, LED effect lights and controllers, Our products are suitable for various entertainment and recreation place, such as wedding and parties. TV stations, multimedia hall, , theatre, Disco club, Bar, KTV and so on.
As an excellent brand, NECO won high reputation as a professional brand for over 7 years in overseas market. And many of our products have been highly praised by our partners all over the world.
We have a team of professional technical staff with rich experience and innovation, to service our clients in the design, production and after-sales. We also have an excellent sales team for pre-sales, sales and after-sales services. We are constantly working to design new products with new innovation, And
Guided by the goal of manufacturing products of the highest quality, You are welcome to visit our factory.
