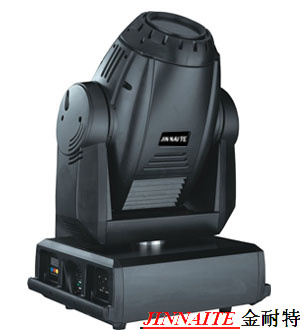

Technical parameter of the 1200W Moving Head Light(18ch)
Voltage: 220V240V AC 50-60Hz
Light source: HMI 1200W short-arc discharge lamp
Color temperature: 6, 000K
Total power: 1400W
Ballast: Magnetic induction electron
Signal: DMX 512
Channel: 18(16bit), 16(8bit)
Single lamp vertical: 580X506X758 (mm)
Double lamp hangs upside down type: (L x W x H): 820X580X935 (mm)
Single lamp(L x W x H): 530X506X758(mm)
Net weight: 48.5KG
Gross weight: 51.2KG
Motors: 16
Performance characteristics
Self-checking independently, automatic reposition remote.
Control DMX address function to demonstrate erectness, headstand, open or closure and the DMX signal to control on and off of light.
The function of aperture size adjustment. 8 main colors +8 mix colors, may make the high speed unidirectional rolling effect.
0-100% mechanical linear dimmer, 1-7t/s super velocity strobe adjustment effect.
Horizontal 540 degrees, vertical 250 degree scanning range, smooth scanning action and accurate orientation. Precise speed adjustment on horizontal and vertical position and speed adjustable.
Each channel has vector mode function. 8 fine gobos (4 fixed and 4 rotary ). The revolving designs may adjust in direction and speed. The angle of revolving design may adjust independently.
Uses the limitless enlargement focal variation function 13 degrees - 32 degrees, may adjust willfully.
The prism has free revolving function on both sides.
Six convection cooling-fan, the cold air injects the light bulb from the lamp head to give off heat, it extends the longevity of the parts of light head which works in low temperature. It also guarantees the heat of light to be dischanged immediately, the entire lamp body to work at designed temperature range.
It has built-in overheat protection and it radiates well.
PFC power compensation, could work even when voltage fluctuates (± 10V)
Conforms to various standards of security, IP20 protection rank. The cable conforms to CE20/22 standard
Quick and simple installment, uses a group of 1/4 revolving lock, it's stable and safe
