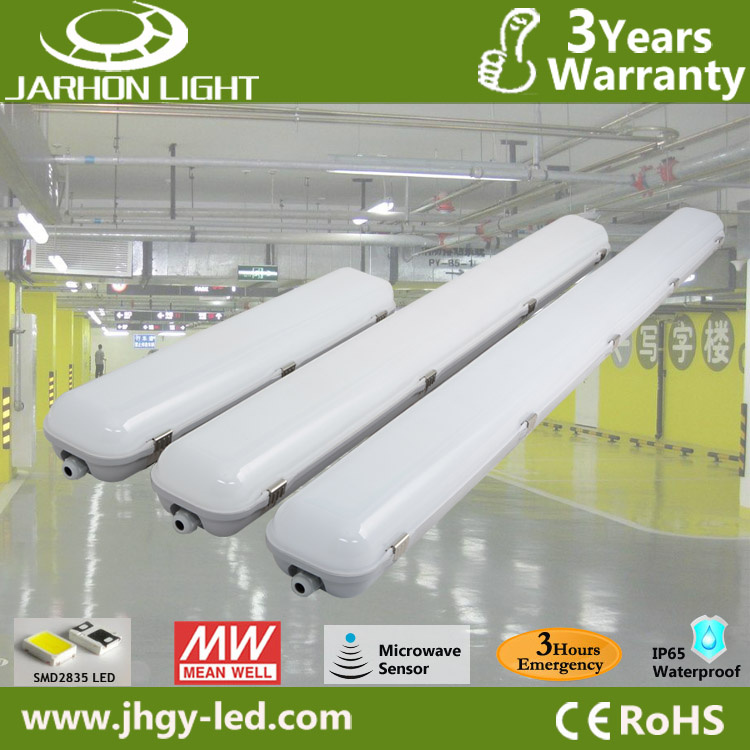

Shenzhen Supplier 1200mm CE RoHS Approved 40W LED Tri-Proof Tube Light
LED Tri-proof IP65 batten product with LEDs on the aluminum PCB Board. Its appearance and structure is the same as standard twin fluorescent fittings but instead of tubes, there are pretty look arrays of LEDs in the fitting and a isolated driver inside. All the fitting options are as you would expect and familiar to an electrician. A simple, functional, inexpensive way to adopt LED lighting and benefit from energy saving over 70% and maintenance free for years.
Technical Specification:
1. Size: 600mm 1200mm 1500mm available
2. Wattage: 20W 30W 40W 50W 60W optional
3. Functions: Microwave sensor, emergency function is optional.
3. Carton dimension: 71*43*22cm, 131*22*29cm, 161*22*29cm.
4. Color Temperature: WW(3000-3500K), PW(4000-4500K), CW(6000K-6500K) is optional.
4. Material: PC housing +PC cover + metal plate
5. Beam angle: 120degree
6. Luminous efficiency: 85-95LM/W
7. Power factor: >0.95
8. Warranty: 3 years
9. Certification: CE RoHS
Feature:
1: Designed with constant current technology
2: Perfect structure design with aluminum base to disperse heat easily
3: The latest indoor illumination product with comprehensive application
4: Easy to install and low cost of maintenance
5: High lumen, high power, low degradation, low heat
6: We are LED factory and specilized in designing and developing the LED lamps
7: IP65 waterproof + dustproof+ Moisture-proof+anti corrosive+antiex plosion
8: High lumens output, low heat and function is more steadier.
9: Healthy beam, without ultraviolet radiation &infrared, no radicalization
10: Green lighting, without mercuty&Plumbum and other relative hazardous substance
Applications:
Car parks, public buildings, airports, military facilities, food processing facilities, factories, plant rooms, cold storage units and computer server rooms, Places where energy saving and high color rendering index lighting are needed.
Specifications:
| Model No. | LED Type | LED Qty | LED Current | LED Luminous | In Put | Out Put | Out Current | LED S/P | PF |
| JH-TP2M-20W-S1 | SMD-2835 | 60 | 55-60 MA | 60LM±5% | 100-240VAC | 36-40VDC | 600MA | 10/6 | >0.9 |
| JH-TP4M-40W-S1 | SMD-2835 | 120 | 55-60 MA | 60LM±5% | 100-240VAC | 36-40VDC | 1200MA | 10/12 | >0.9 |
| JH-TP5M-60W-S1 | SMD-2835 | 200 | 55-60 MA | 60LM±5% | 100-240VAC | 36-40VDC | 1800MA | 10/20 | >0.9 |
| LED chipset Brand:TAIWAN chipset | LED Luminous Efficiency:120LM/W ±5% |
| LED chipset Size:22*42 MIL | Lamp Luminous Efficiency:95LM/W ±5% |
| Color Temperature(CCT):3000K-6500K | PCB Material:1.0MM Aluminum PCB |
| Color Rendering Index(CRI):Ra>70 or Ra>85 | IP Rating:IP65 Frequency Range:50/60Hz CE RoHS |
Shenzhen Jiahong Guangyuan Technology Development Co., Ltd established in 2003, is a leading manufacturer of LED industrial lights with mainly products including: LED Tri-proof light, LED flood light, LED plant growing light, LED Tunnel light, LED high bay light, LED flood light, LED street lamp, LED gas station light, LED ceiling light and so on.
Based on the developing of industrial lighting fixture, we devoted ourself to the exploitation and application of the Smart LED products and to be the professional supplier for the environmental friendly smart LED systems as well as the LED lightings.
Customized products also available here. So welcome you send your creative design and reqirements to us and we will try our best to make your idea come true.
With the hard and efficient working of our developing team, Our innovative functional new products come out constantly. Welcome you contact us anytime. And wish we all will have a fruitful and mutual successful business cooperation in the very near future and from hereafter.
