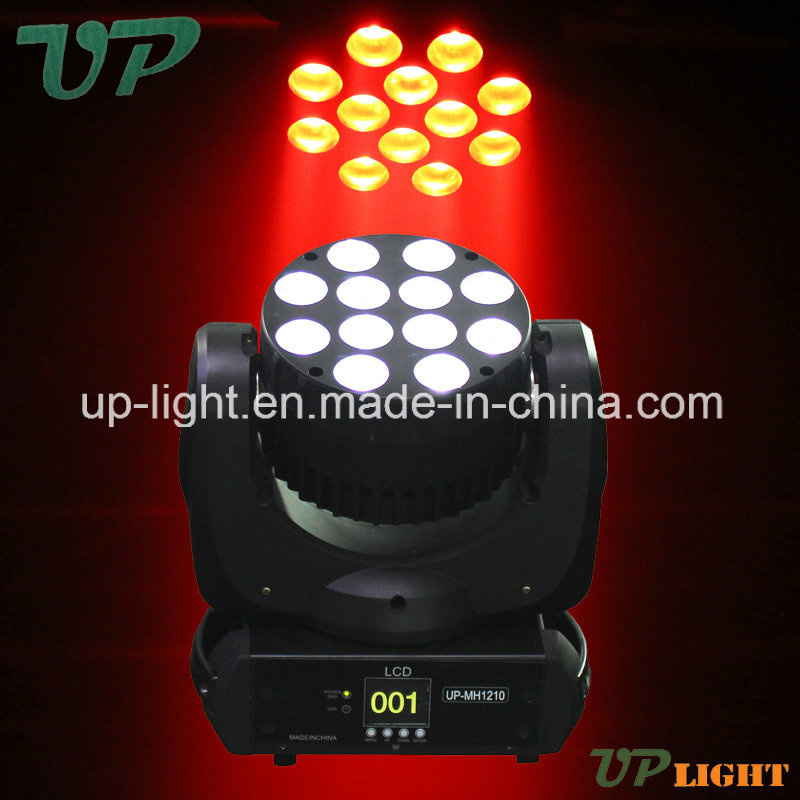

12*10w LED Min Beam Moving Head Light
(Item#: UP-MH1210)
Feature
Tiny shape, fast and powerful LED moving beam.
Super compact, low weight
High efficiency, low power consumption.
Tech Spec:
Input voltage: AC90~240V, 50~60Hz
Power: 150W
Light source: Power 10watt American CREE
Quantity 12PCS LED chip(RGBW 4in1)
Lux4200@5m.
Rated life 80000~100000 hours
High luminous efficiency, no radiation, low power consumption, no flicker
Beam angle: 20 standard
Dimmer: 0~100% linear adjustable dimmer
Strobe: Electronic strobe 1~25/sec, soft light function
Head movement: Pan 450º , Tilt 270º With auto position correction, speed adjustable, 16Bit
Control mode: International standard DMX512 signal, 3-pin connect
11 channel simple mode, 15 channels standard mode
DMX512 signal / master-slave / sound control
TFT LCD display
Other function: IP address code extension, DMX address code extension, self-program mode,
Auto-run program, external-control mode, fans+cooling system
Environment temperature: -200 C ~400 C
Physical Features: Housing: Casting Aluminum shell+Composite plastic (IP20)
Packing carton: 267× 254× 304mm
Net Weight: 6.5Kg
| 12 Channels | 15 Channels | Function |
| CH 1 | CH 1 | RGBW Dimming |
| CH 2 | CH 2 | RED |
| CH 3 | CH 3 | GREEN |
| CH 4 | CH 4 | BLUE |
| CH 5 | CH 5 | WHITE |
| CH 6 | CH 6 | User-defined lighting |
| CH 7 | CH 7 | Pan scanning |
| CH 8 | CH 8 | Tilt scanning |
| CH 9 | CH 9 | Pan scanning fine |
| CH 10 | CH 10 | Tilt scanning fine |
| CH 11 | CH 11 | Scanning speed |
| CH 12 | CH 12 | Strobe |
| CH 13 | RGB marco function |
| CH 14 | Auto speed adjustment |
| CH 15 | ID code |
