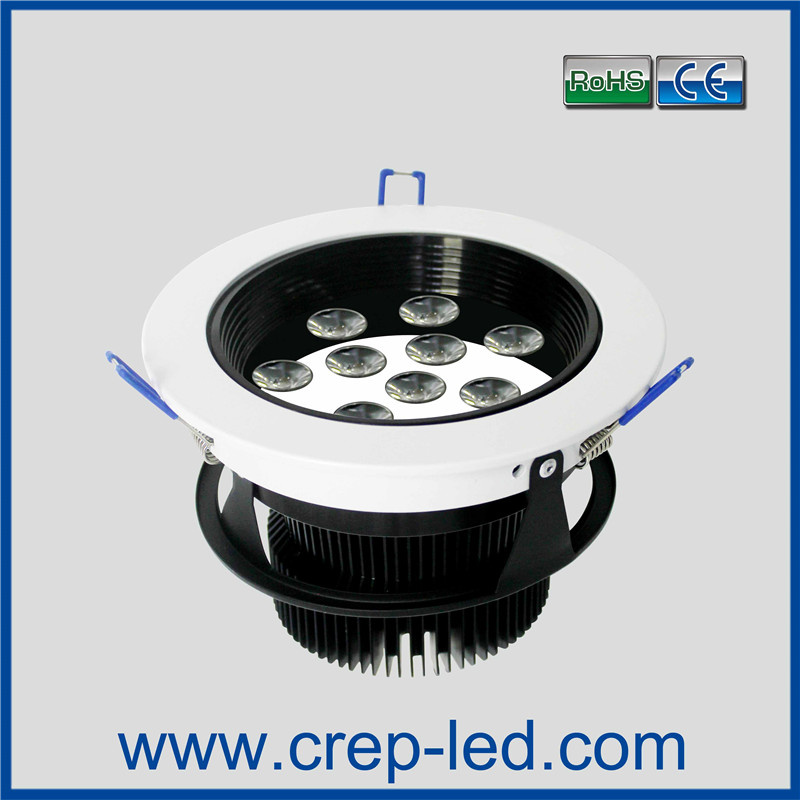

Data of 11W LED Down Light or led down light
Power: 11W
Input voltage: AC100-240V 50/60Hz
Dimension: Φ 145*75mm
Hole size: Φ 115mm
LED type: High power 1W
LED quantity: 9PCS
Luminous: 792lm± 8%
Material: Aluminium alloy and lens
Packing: 500*500*380mm(36PCS/carton)
Application of LED down lights: Widely used in Commercial and Residential places. For example, Offices, Hotels, conference rooms, corridors, restaurants, shopping malls, supermarkets, flagship stores, showrooms, night clubs, factories, and other commercial, residential and public facilities.
LED down light is a high end interior lighting, adopting ultra-bright high power LEDs as light sources. Light beam goes through high transmittance light guide plate to give even lighting effect. It is beautiful and eco-friendly, easy installation, low consumption, high luminous efficiency. The down light not only gives better lighting effect, but also brings beauty to people with elegant and Luxury design.
Notice:
1. Indoor use only, non-waterproof.
2. Input voltage: AC100-240V
3. Working temperature: -30- 50 degree.
4. Working humidity: 10%-95%
5. Turn off the main power supply before installation.
6. Directly replace the traditional downlight in appropriate perforate dimension.
7. Do not touch the LED power supply when power on.
8. Do not take the LED downlight and driver apart without permission.
ModelNO. |
Size |
Perforate size |
Material |
Input
voltage |
Power |
LED quantity |
LED type |
Luminious flux |
CPS-TD-D4W-42 |
Φ 90*60mm |
Φ 80mm |
Aluminum alloy + lens |
AC100-240V |
4W |
3LEDs |
high power 1W |
280lm± 8% |
CPS-TD-D6W-43 |
Φ110*82.5mm |
Φ 90mm |
Aluminum alloy + lens |
AC100-240V |
6W |
5LEDs |
high power 1W |
448lm± 8% |
CPS-TD-D9W-44 |
Φ110*82.5mm |
Φ90mm |
Aluminum alloy + lens |
AC100-240V |
9W |
7LEDs |
high power 1W |
630lm± 8% |
CPS-TD-D11W-46 |
Φ145*75mm |
Φ115mm |
Aluminum alloy + lens |
AC100-240V |
11W |
9LEDs |
high power 1W |
792lm± 8% |
CPS-TD-D14W-48 |
Φ145*75mm |
Φ115mm |
Aluminum alloy + lens |
AC100-240V |
14W |
12LEDs |
high power 1W |
1056Lm± 8% |
CPS-TD-D18-50 |
Φ160.5*82.5mm |
Φ140mm |
Aluminum alloy + lens |
AC100-240V |
18W |
15LEDs |
high power 1W |
1320Lm± 8% |
CPS-TD-D22W-52 |
Φ160.5*82.5mm |
Φ140mm |
Aluminum alloy + lens |
Aluminum alloy + lens |
22 |
18LEDs |
high power 1W |
1584Lm± 8% |
CREP, a high-tech enterprise & vice-chairman in Shenzhen LED industry association, which is specialized in R & D, production and marketing of LED lighting. We keep working to make breakthrough on LED lighting and till now, achieved more than ten new structure patents and one China invention patent. The main product in application lighting includes LED commercial lighting, LED industrial lighting, LED decorative lighting and LED outdoor lighting.
Our company passed and strictly enforces the requirements of ISO9001 Quality management system to promote all products through CE, RoHS and FCC and other international safety certification. Some products have passed UL, DLC, TUV, SAA, ETL and PSE certification. We have consistently adhered to the operating principle of "market-orientation, quality-assurance, efficiency-improvement, innovation-motivation, resource-integration, service-first and competitive edge-enhancement", continue to improve corporate operations and product innovation to serve customers. We provide solutions for China domestic market, as well as for overseas countries like Europe, America, Japan, Southeast Asia and so on.
We welcome talents with open mind, fully exert their subjective initiative, and pursue continuous innovation and perfection. Gradually, we set up a highly qualitied team with more than 30 members who are junir and senior R&D professional in LED driver, indutial design, optial design, esthetics and industrial design. Meanwhile, introducing the advanced technology, components, production and testing equipment from Jupan, Germany, the United States and other countries to promote the company's productry-leading level.
CREP will always persist "Sincere Cooperation, Continuous Innovation and Future-challenging" to enhance competitive edge, to provide high quality products and good services for all our customers, and to stick to social returns and social responsibility.
