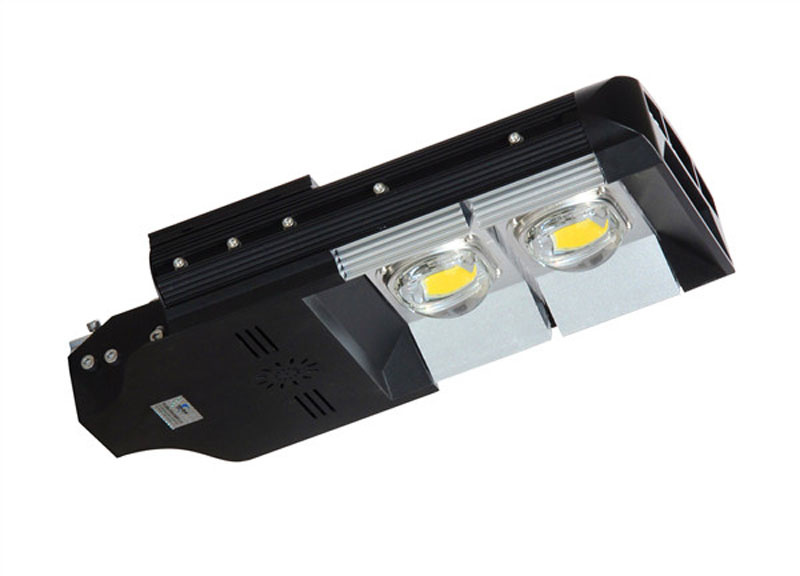

110W LED Street Lamp, High Bright Bridgelux Chip, Meanwell Driver
| Model | LC-L001-2-90 | LC-L001-2-110 | LC-L001-2-120 |
| Power | 90W | 110W | 120W |
| LED Module quantity | 2*45W | 2*55W | 2*60W |
| Whole light efficiency | 100lm/W |
| Lumen | 9000lm | 11000lm | 12000lm |
| Color temperature | 2500K-6500K |
| Power efficiency | 92% |
| Power factor | 0.98 |
| Total harmonic distortion | <15% |
| Working temperature | -40~50 degree |
| Humidity | 10%-95% |
| IP rating | IP67 |
| Net weight | 9kg |
| Chip | Bridgelux |
| Driver | Meanwell |
| Material | Aluminum alloy |
| Color | Black or silver |
| Guarantee time | 3-5 years |
| Product size | L564*W340*H115mm |
| Packing size | L630*W390*H185mm |
The characteristics of LEDCENT LED street light:
A. Light body:
1. Won the national design patents, utility model patents, anti-typhoon, anti-wind, anti-corrosion, waterproof grade IP67;
2. Structure adopts modular design, easy installation and maintenance;
3. Low thermal resistance of structural design and professional thermal design, thermal
Performance superior to similar products;
4. According to different poles elevation, the angle can be adjusted for different width of the road.
B. Light distribution:
1. Adopt international advanced LED rectangular optical tehnology, the formation of 4: 1 rectangular spot, so that no dark areas;
2. Scientific lamps optican technology, the unique phosphor formula, advanced packaging
Tehnology, high brightness imported chip, the led lamp efficiency can reach 115lm/W;
3. No adverse glare, no flicker, eliminationg adverse ordinary lights glare caused by glare, visual fatigue sight interference, in order to improve driving safety.
C. Power Driver:
1. Streetlamp lifetime depends mainly on the power, the market power lifetime geerally 2-3 years, LEDCENT photoelectric using patented technology and imported high-quality electronic componenst combined to make the power lifetime of up to 5 years;
2. LEDCENT power with unput overvoltage protection, under voltage protection, over current protection, lighting protection, circuit protection funtion;
3. Multi-channel supply and reliable driver circuit not only to ensure the stability of the LED work, but also the control conventionally the LED power consumption.
D. Enviromental friendly:
1. Each night 5 hours full power lighting, and then half poer working at the mid-night by qutomatic gradual dimming system;
2. Compared with traditional sodium lamp, LEDCENT led lamp energy saving up to 70%;
3. No lead, no mercury and other pollution elements, no environmental pollution.
