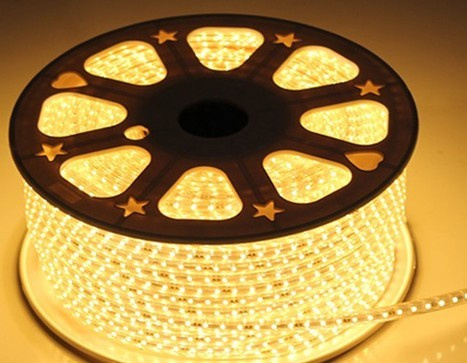

110V 220V 120led smd3528 flex led strip light
Features:
1. Using SMD3528 LED, high brightness, wide angle, spot uniformity, light a small decline
2, Random bending, fixed flexible
3, Along the "scissors-shaped" symbol cut, does not affect
4, Low power consumption, long life, maintenance-free
5. Widely used in billboards, solid light, signage, floor contour, step,
6. Booth, bridge, hotel, KTV decoration lighting
Waterproof high voltage led strip
220V 110V high voltage led strip is an "updated version" of the low voltage strip. The use of DC 12V led strip has to be with a miniwatt adapter, and its best length is 5 meters. For the projectors, this is very inconvenient. Now, our high voltage strip could deal with all the problems. 100 meters in one line without connection, and no signal amplifier needed. But, 220-240V voltage is dangerous to our body, so we use the PVC material to protect and also the PVC material is waterproof.
SMD3528 LED strip 120LED/m
White, warm white, RED, Green, Blue, Yellow, available
9.6W/m
100M/roll
AC110V 220V
Install: Take out the package, make sure it comes with necessary accessories, which should include: Fixing clips, middle plugs, end caps, head wires. Fix the strips with clips onto where you need, put the wire into sockets to light the strips.
Cut: Please cut the strips only along the cutting mark on the PCB, don't cut at random. Block up the end with end caps, seal with enough glue to make sure it's still waterproof.
Connect: Plug the head wire into a strip to conduct the electricity, or plug a middle plug into the ends of two separate strips to connect them into a long strip, after well connected, seal all the plugs with enough glue.
Danfore LED Strip Light Packaging:
100m/roll led strip light 220-240v
|
DF-3528W-120-AC |
WHITE |
Material:3528LED |
Condition Temperature: -20-50centi degree |
|
DF-3528WW-120-AC |
Warm White |
LED Qty:120pcs SMD |
Colour rendering index: 84Ra |
|
DF-3528R-120-AC |
RED |
Power:9.6W/Meter |
Size: 7X12 mm |
|
DF-3528G-120-AC |
GREEN |
Imput Voltage: AC220V/ AC110V |
Packing:1m/unit,100m/roll |
|
DF-3528B-120-AC |
BLUE |
Current:0.8A |
G.W: 9.2KG /
0.015CBM
(32X32X15cm) |
|
DF-3528Y-120-AC |
YELLOW |
Luminous Flux (lm):480LM/Meter |
IP65 |
