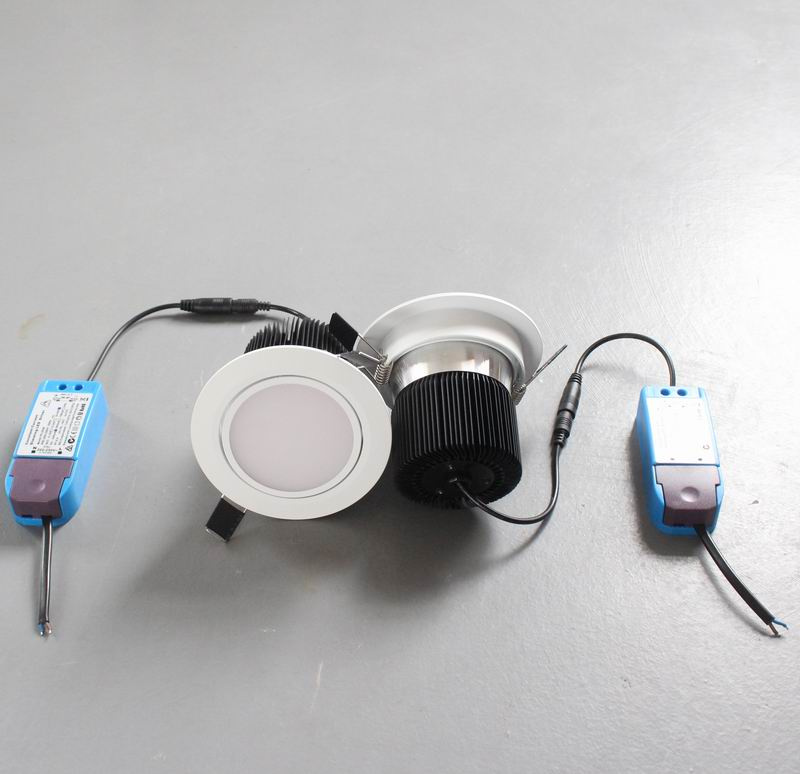

10W surface mounted COB led ceiling light
Parameters:
1. Item NO.: SU-COB-6W-PW
2. Power: 6W; Input Voltage: 100-240V for no-dimmable, 110V/220V fo dimmable.
3. CCT: Warm white(2800-3200K), nature white(4000-4500K), pure white(6000-6500K)
4. Lum flux: 460 / 480 / 500 LM
5. Qty/Carton: 24pcs/Carton, Carton size: 49*31*33cm
Unique advantage
1. We use EPISTAR top chip to equip our COB light, ensure the high luminous flux and stalbe light.
2. Top cooling capacity, our lighting substrate is made by ceramics, solve the long-standing radiating problem of COB lights.
3. The CRI reaches 85Ra, the perfect combination of CRI and Brightness, the same as the nature lighting.
4. High luminous efficiency of 110lm/w, you can't find higher.
5. The power efficiency can reach 87%
6. Top power factor of 98%, less heat generation, realize the cool lighting and stable lighting, extending the life of lamp
7. The reflective cup uses best reflective material, wide-angle and good effect.
8. The lighting is uniform and soft, no changing and spot.
9. Can realize 180 degree lighting adding a diffuser plate
10. Unique aluminum radiator design, make the radiating easier
Top epistar chip
1. Epistar chip is famous for its stable and softy lighting with power saving.
2. Epistar is double-shock structure with 6 layers protective film on the surface confirm the better lighting effect.
3. The highest ESD protection of 3000, better than the similar product like Cree etc of 500 ESD protection.
Ceramics Substrate
As you know, ceramics substrate is always the big problem of the COB light production, our comany constrated in the ceramics substrate support research in the last 4 years, the new technology ensure the cool temperature when the lamp is emitting light.
The ceramics substrate has Good heat dispersion, effectively protect the lamp bead. Cooling capacity of aluminum plate and copper substrate is pool, it is difficult to guarantee the stability of led light.
The Radiator uses high quality aluminum, use unique honeycomb design, improving the cool efficiency greatly.
The lighting is pure, stabe and soft, no dark space, no light spot. And Light fades.
|
Item No. |
Power |
Dimmable |
Input Voltage |
Size |
CCT |
|
SU-COB-6W |
6W |
Yes |
110V/220V |
D86*H70mm*70mm(hole) |
WW/NW/PW |
|
No |
100-240 V |
|
SU-COB-10W |
10W |
Yes |
110V/220V |
D108*H90mm*95mm(hole) |
WW/NW/PW |
|
No |
100-220V |
SUNSHINE LED LIMITED, which is a new high-tech enterprise engaged in research, manufacturing and marketing of LED light. The main products involve COB LED Ceiling light, COB LED Spotlight, LED Strip, LED floodlight, LED Panel light and LED Controller and LED accessories etc, all of which are widely used for urban lighting decoration, indoor home decoration, hotel decoration, stage lighting, signal lamp, road lighting and other areas.
Sunshine covers more than 3500 square meters with completed equipments, 75 workers uses high level Auto-production Machines for SMT assembly and soldering. Our strip series' monthly capacity is above 50, 000 meters and the COB LED Downlight monthly capacity is above 5, 000PCS. All the products must have 100% life testing before shipment. Because of efficient production & quality control, Sunshine has already got good honor & accreditation from the customers. Our products are sold to America, Denmark, Australia, Japan, France and all districts of our country.
We have passed ISO9001, CE and SGS certifications. Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.
Choosing Sunshine means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of Sunshine".
