Quick Details
Place of Origin: Guangdong China (Mainland)
Brand Name: AOBEC
Model Number: AOBEC-HDB5-10
Color: Silver/white/SN
Input Voltage: AC85-265V
Life: 50, 000h
Power: 10W
Light Source: Epistar High power LED
CRI: >80ra
Size: D180mm*95mm
Material: Aluminum+PC
Fixing ways: Recessed
Guarantee: 2 Years
Certificate: CE, RoHS
Packaging & Delivery
Packaging Detail: Cartons.
Delivery Detail: 7 to 14 days
Specifications

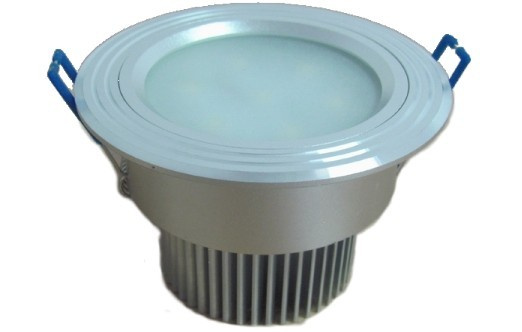

5 INCH LED DOWN LIGHT
LED light: Epistar 10X1W or 10wCOB
Luminous Flux: 900LM~1050LM
CE, RoHS
5 Inch LED DOWN LIGHT
Features:
Energy-saving: Low energy consumption: 50% of energy saved than fluorescent lamp
Long Life-span: 10 times longer than fluorescent lamp
Well-being: No UV wave, RFI free, No dazzling, no tiredness for eyes, conforming to CE
Various applications: Brightness control with dimming controller (optional)
Eco-friendly: No mercury, longer life, no environment pollution, environment-friendly
Working separately: Special circuit design, each group of LED work separately, avoiding any problem of lighting output caused or influenced by single faulty LED
Slim and neat design: Very slim design, only 14mm
MAIN SPECIFICATIONS OF LED DOWN LIGHT ( T=20° C)
Item No.
MSL-HDB5-10
No.
ITEMs
DESCRIPTIONs
01
Input Voltage
AC100-240V
03
Power Consumption
10W
04
Lumen
>1050Lm (Cool white)
>960Lm (Natural white)
>900Lm (Warm white)
05
Color
Cool white /Natural white /Warm white
06
Color Temperature
5300-7000K(Cool white)
4000-5000K (Natural white)
2700-3300K (Warm white)
07
Life Time
>50, 000 Hour
08
Operating Temperature
-10° C to +40° C
09
Storage Temperature
-20° C to +60° C
10
Humidity Operating
10-80%
11
Humidity Storage
10-80%
12
Lux Data
>310(1.0Meter, Cool white)
>280(1.0Meter, Warm white)
>250(1.0Meter, Warm white)
13
Certifications
CE, RoHS
14
Weight
0.45kgs
15
Dimension
D180mm X 95mm
16
IK Code
IK04
17
IP Level
IP41
18
Luminaries Class
Class III
19
Installation
Recessed
20
Cut out
D168mm
Applications:
Hotels, Hospital
Conference / Meeting rooms
Factories & Offices
Commercial Purposes
Residential / Institution Buildings
Schools, Colleges & Universities
Places where energy saving and high color rendering index lightings required.
